ALIF1104T-AUS

Adder

The ADDERLink® INFINITY 1104 is a high performance IP KVM extender that forms part of the ADDERLink INFINITY Range. This enables the relocation of critical computing hardware into a secure and temperature controlled environment away from the user work station; while maintaining a pixel-perfect desktop experience.   ALIF1104Tx


The ADDERLink® INFINITY 1104 is a high performance IP KVM extender that forms part of the ADDERLink INFINITY Range. This enables the relocation of critical computing hardware into a secure and temperature controlled environment away from the user work station; while maintaining a pixel-perfect desktop experience. The ALIF1104Tx connects to other Infinity devices ie ALIF1102Rx



Perfect Digital Video, Real-Time Control
Using a spatially-lossless encoding system, with 1:1 pixel mapping, the ADDERLink INFINITY 1102 (ALIF1102) provides pixel-perfect and color accurate video with no artifacts. The digital video received is the same as the digital video leaving the remote computer.



Standard IP Technology
Using standard IP technology allows a choice of CATx or fiber connections. Resilience is offered by the optional second network port which provides teaming facility for load balanced and critical systems.



Unlimited Extension Distances
Extension distance is not limited to a single 100 meter cable length. If you need to extend further, simply add a 1GbE network device to achieve an additional 100 meters. This can be repeated many times. Also fitted with SFP cages to accept fiber optic transceivers for much greater distances.



USB 2.0 with Class Control
Supports USB devices including graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. For secure applications, the system can disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.



Flexible and Scalable Extender or Switch
Each ALIF1100 model can be configured as a simple extender or self-managed distributed KVM switch. Each receiver can see up to 16 sources and rapidly switch between them.

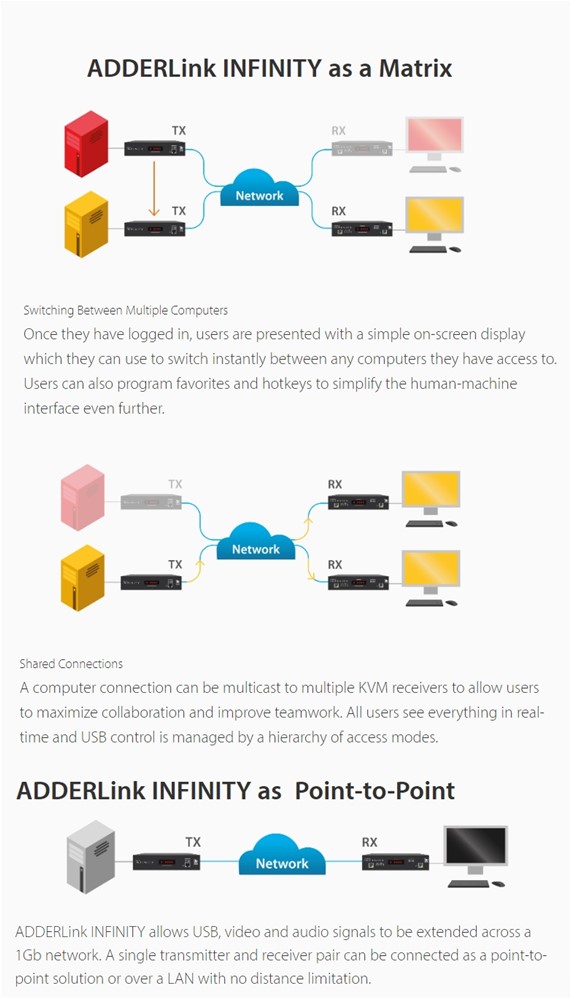

ADDERLink® INFINITY Matrix

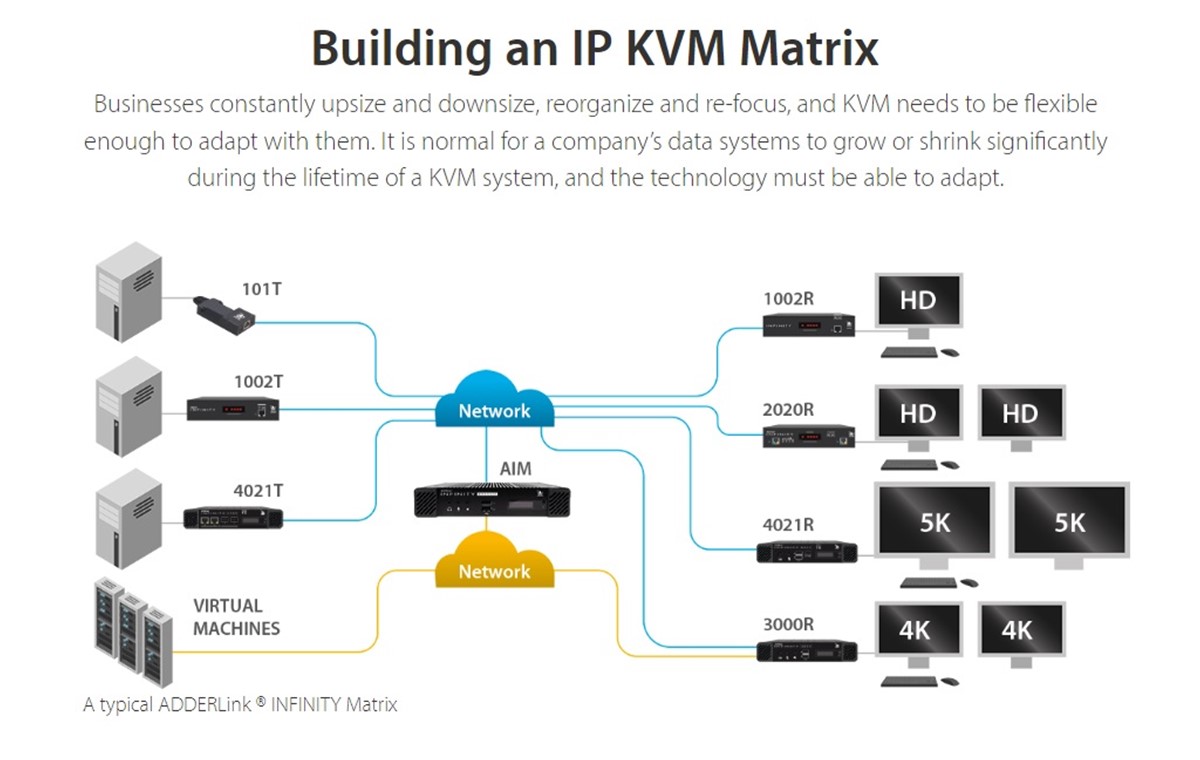

With the addition of the ADDERLink® INFINITY Management (AIM) system, you can turn multiple point-to-point extenders into a scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.



Transmitter (ALIF1104T) Specification



Video Information (For 1 Screen)

Maximum Resolution

2560 x1600

Frame Rate

60

Colour Depth

8 bpc

Computer Connections

USB B

1× 2.0 True Emulation, High Speed

USB A

1× 2.0 True Emulation

HDMI®

1

Link Ports

8p8c (RJ45)

SFP

Serial Ports

Serial Standard

RS232

Maximum Baud Rate

115,200

Serial Additional Information

RS232 or other serial standards can be passed between the units to a maximum baud rate of 115,200 by using serial to USB converters

Audio Connections

Audio Type

Analog/Digital

Channels

2

Audio In Ports

1× 3.5mm jack

Audio Direction

Bi-directional

Size (bit)

16

Speed (kHz)

48

Additional Information

Analog audio and audio via digital video connector is uni-directional. USB audio is bi-directional

Network Support

Bandwidth

1GbE

10/100 Support

No

Environmental

Operating Temperature

0 - 40 °C / 32 - 104 °F

Storage Temperature

0 - 40 °C / 32 - 104 °F

Operating Humidity (%)

5% - 90% (non-condensing)

Storage Humidity (%)

-10% - 90% (non-condensing)

Altitude

2000m / 6561.68ft

Mean Time Between Failure (MTBF)

300,000 h

MTBF Standard

Telcordia SR332 Issue 4 March 2016 Calculated @ 55C

Temperature Regulation

Fanless

Power Source

12V 3-pin

Input Power Supply

External Power Supply Unit (see manual)

Power Consumption

Maximum Power (Watts)

18

Typical Power (Watts)

7

Physical Design

Construction Material

Robust metal construction

U size

1

Width

136mm / 5.35in

Height

39mm / 1.54in

Depth

150mm / 5.91in

Weight

0.8kg / 1.76lb

Compatibility

OS Compatibility

All known operating systems

System Requirements

Does not support HDCP or CEC control

Approvals and Standards

Approvals

CE, cULus - E476334, FCC, ICES, RCM, UKCA

Standards

ANSI 63.4, EN/IEC 62368-1, EN55032 /CISPR 32, EN55035/CISPR 35, EN61000-3-2, EN61000-3-3, EN63000, FCC pt15B, ICES003

Other

Cal Prop 65, China ROHS, EU REACH, UK REACH



Ordering Information

Code

Description

ALIF1104T-XX

ALIF1104 Transmitter



What's in the Box?

1× ALIF1104 Transmitter

1× PSU-IEC-12VDC-1.5A: Mains power supply

1× IEC PSU cable of country code

1× VSCD15: 2m/6.5ft HDMI cable

1× VSC24: 2m/6.5ft USB cable

1× VSC22: 2m/6.5ft Audio cable
