Adder AV4PRO-DVI-QUAD-AUS

ADDERView AV4 Pro DL-DVI Quad Head

AV4PRO-DVI-MS is designed to enable four multihead computers to be controlled from a single high resolution KVM console using either dual link DVI or high definition analogue video links. The switch makes use of Adder's True Emulation technology which enables USB HID devices to be continuously emulated to each computer. This unique technology enables instantaneous and reliable hotkey switching whilst also supporting the extra keys and features of enhanced keyboards and mice..

$3,025.00 RRP (inc GST)
Login for Reseller Pricing

7 Days From Order

Quantity
click to enlarge



The ADDERView Pro DVI Quad Head switch is a professional grade KVMA switch delivering ultimate flexibility for users who wish to share a high resolution screen and modern USB peripherals between a multiplicity of computers

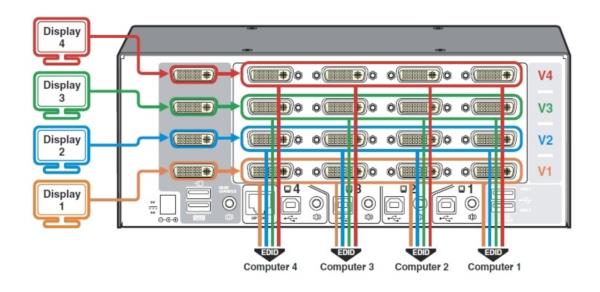

The AV4PRO-DVI-Quad is designed to enable four computers with Quad screens to be controlled from a single high resolution KVM console using two screens using either dual link DVI or high definition analogue video links. The switch makes use of Adder’s True Emulation technology which enables USB HID devices to be continuously emulated to each computer. This unique technology enables instantaneous and reliable hotkey switching whilst also supporting the extra keys and features of enhanced keyboards and mice. Furthermore, the ADDERView includes two independently switchable USB 2.0 channels and an audio channel, giving the user the flexibility to attach selected peripherals to different computers.

Dual link DVI-I with extended profile DDC EDID

The ADDERView Pro features full dual link DVI video delivering 4 megapixel resolutions at 60Hz. Because the ADDERView features DVI-I, you can also use a choice of digital or analogue sources. The extended DDC EDID profile ensures that the switched graphics card is always optimised to work with your screen. The dual link DVI capabilities enable users to work at very high resolutions including 2K (2048 x 1080) for film post production or WQXGA (2560 x 1600) for detailed medical imaging.

True Emulation USB2.0 technology

The AV4PRO-DVI is the first KVMA switch to feature Adder’s  advanced True USB Emulation technology. Emulated USB provides an instantaneous and reliable switching action and makes keyboard hotkey and mouse switching possible. However, previous implementations have used only generic emulations and consequently have only been able to support the most basic keyboard and mouse features. Adder’s revolutionary True Emulation technology overcomes this frustrating limitation by emulating the true character of the connected devices to all the computers simultaneously. This means that you can now use the extra function keys, wheels, buttons and controls that are commonly found on modern keyboards and mice. With the AV4PRO-DVI, a whole new group of users can take advantage of the flexibility KVM switches have to offer. Users in Architecture, Graphic design, Post production, Animation etc. often need to use specialised interface devices such as graphics tablets, 3D explorers, joysticks, and soon. It makes all this possible using Adder’s True Emulation technology.

TECHNICAL SPECIFICATIONS

Computer connections at switch:

USB2.0 type B, Dual-link DVI-I, 3.5mm stereo jack

Local KVM console connection: Video: 4x Dual-link DVI-I

Keyboard/Mouse: 2 x USB type A

Switched USB: 2 x USB2.0 type A

Audio: 3.5mm stereo jack

Power: 2.5mm DC jack (power adapter included),100-240VAC 50/60Hz input to power adapter, 5VDC 2A output from power adapter

Hardware compatibility

All computers with USB interfaces

Software compatibility

Operates with all known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare etc.
Computer connections at switch: USB2.0 type B, Dual-link DVI-I (up to 4 per connection), 3.5mm stereo jack

Local KVM console connection

Video: Dual-link DVI-I (Dual x 2, Triple x 3 or Quad x 4)
Resolution: All resolutions up to 5MP per head (eg 2560x1920 4.92M3-R).
Keyboard/Mouse: 2 x USB type A
Switched USB: 2 x USB2.0 type A
Switched USB: Supports USB 2.0 devices in low, full and high speed modes.
USB True Emulation: Emulates keyboard and mouse on each port. Low speed HID USB 2.0 devices supported
Audio: 3.5mm stereo jack
Other Connections: Options (flash upgrade, sync with other AV4PRO-DVI-MS and RS232 triggered power switches): Modular 10P10C

Physical design

2.5U high metal case 26cm (w), 15cm (d), 10cm (h)

Power

2.5mm DC jack (power adapter included), 100-240VAC 50/60Hz input to power adapter, 5VDC 2A output from power adapter

Operating temperature

0 - 40 deg C (32 to 104 deg F)

Approvals

CE, FCC

Additional accessories

DVI to VGA adaptor: VSA11
Single link DVI-D to DVI-D video cable: VSCD1
Combined dual link DVI-D and USB (USB type A to B) cable: VSCD3 (2m length); VSCD4 (5m length)
Audio cable 2m (3.5mm stereo jacks): VSC22
Flash upgrade adapter plus standard 3m patch lead: VSC40
Two 19inch rackmount brackets and four screws: RMK5PROMS
RC4 remote control plus standard 3m patch lead: RC4-8P8C
