Adder X200AS-USB-P-AUS

ADDERLink X200 KVM (VGA,USB KB/MS) extender Pair 300 Mtrs USB PC, USB Control, Includes a CATX-USBA CAM

ADDERLink X200s have been designed for use in applications where up to two computers can have their keyboard, video, audio and mouse control extended up to 300 m across CAT5 or higher UTP cable. The ADDERLink X200 provides absolute real time keyboard and mouse performance along with hi-definition, hi-resolution video over a VGA interface. The ADDERLink X200 receiver can also be used as a remote user station for the ADDERView CATx range of KVM switches.

Includes a CATX-USBA Computer Interface Module

.

$960.00 RRP (inc GST)
Login for Reseller Pricing

7 Days From Order

Quantity
click to enlarge

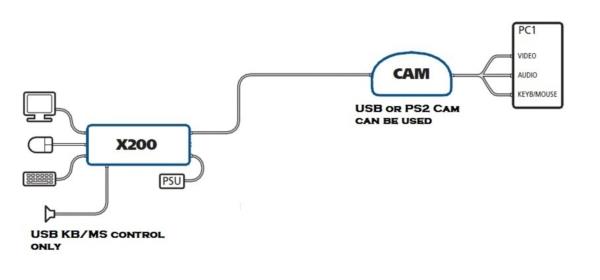

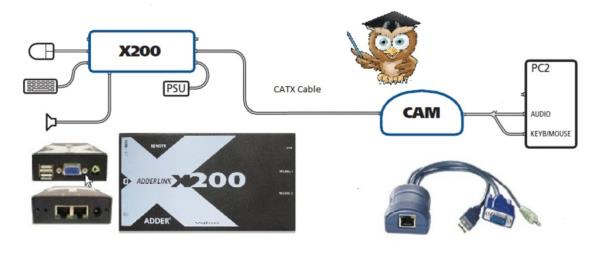

 The ADDERLink X Series X200 extender consists of a full-featured USB keyboard, video and mouse extender complete with stereo audio capabilities, supporting a maximum resolution of 1,920 x 1,200. What makes the X200 stand out is the inclusion of a 2-port KVM switch that allows the user to control two target devices up to 300 meters away using just a single keyboard and mouse.

It also doubles up as a remote user station for the ADDERView CATx range of KVM switches. Other interesting features include skew correction with a 300MHz bandwidth, video compensation to adjust the picture sharpness and brightness, 44.1 kHz digital stereo high fidelity audio for speakers and DDC for automatic video setup.

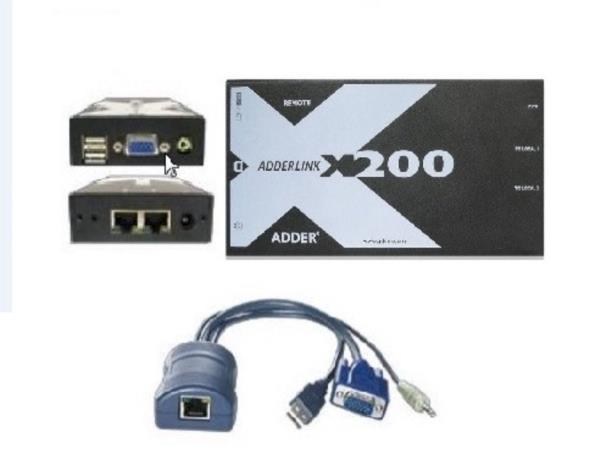

This Kit consists of a X200 unit, a USBA CAM/Dongle.

Video performance

Industry leading resolutions of:
1920 x 1200 to 50 m (165 ft.)
1600 x 1200 to 200 m (650 ft.)
1280 x 1024 to 300 m (1000 ft.)

Video compensation

The ADDERLink X200 applies 128 steps of signal compensation enabling fine picture adjustments.

Brightness control

The ADDERLink X200 offers its own brightness correction to ensure images are crisp, clear and bright.

Integrated De-Skew

The ADDERLink X200 AS/R model has integrated skew correction with a 300MHz bandwidth (1/4 of a pixel movement at 1600 x 1200 resolution). This removes the video skew issues that can be caused by
longer CATx cables.

Two port integrated KVM switch

Each receiver is fitted with two ports to enable connection to a local and remote computer, or two remote computers. The user can quickly select between these ports using keyboard hotkeys or mouse control. Individual video brightness, compensation and skew settings can be applied to each connection.

Flexible system configuration

Each receiver may be connected to one or two USB, PS/2 or Sun style computer access modules. Furthermore, the X200 receiver unit may be used as the remote user station for any ADDER CATx KVM switch.

Emulated DDC

Unless an extender actively supports DDC some wellknown high performance video cards cannot be used at high resolutions. The ADDERLink X200 fully supports DDC.

Digital audio

44.1kHz digital stereo audio delivers high fidelity audio for speakers.

Video Resolution

1920 x 1200 at distances up to 50 m/165 ft, 1600 x 1200 at distances up to 200 m/650 ft, 1280 x 1024 at distances up to 300 m/1000 ft.

Extension Distance

Up to 300 m/1000 ft. using CATx cable (x=5,5e,6)

Devices Supported

Supports computers with USB style keyboard and mice, flat-screen and CRT style monitors with standard HDD-15 video connectors and optional audio through 3.5 mm audio jack.

O/S Compatability

All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc.

Connectors (USB CAM)

Video: HDD-15 Optional audio: 3.5 mm jack
Keyboard, Mouse: USB type A CATx: RJ45 connector

Connectors (X200 remote unit)

Video: HDD-15 Optional audio: 3.5 mm jack
Keyboard, Mouse: USB Type A CATx: 2 x RJ45 connector
Power2.5 mm DC jack

Physical (USB CAM)

Combination of plastic enclosure and cables.
Enclosure: 64 mm/2.5 in. x 45 mm/1.8 in. x 25 mm/1 in.
Cables: 340 mm/13.4 in. long

Physical (X200 remote unit)

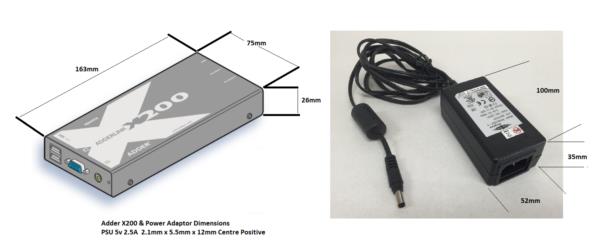

All metal case, 172 mm/6.8 in. x 26 mm/1 in. x 75 mm/3 in. 430 g/1 lb.

Power Supply

100 - 240VAC 50/60Hz (X200 remote unit only)

Additional Computer Access Modules (for second computer)

CATX-USB (USB computer access module)
CATX-USBA (USB computer access module with audio)
CATX-PS2 (PS2 computer access module)
CATX-PS2A (PS2 computer access module with audio)
CATX-SUNA (Computer access module with audio for Sun)

Approvals

CE, FCC
