KSR-F117-S801e

Austin Hughes

KVM LCD Console with 8 port DB15 KVM Switch, 17" 1920 x 1080 resolution.  DB-15 Connectivity : VGA + USB KB / MS 2-in-1 KVM cable


RKP117e CyberviewRackmount Keyboard Monitor is a combination of Keyboard, Video and touchpad or trackball mouse (KVM) in 1U Rack drawer. This KVM Drawer unit comes with a combo interface cable which supports both USB and PS2 keyboard interface.

KVM LCD Console with 8 port DB15 KVM Switch 17" 1920 x 1080 resolution  Touchpad mouse & US keyboard Integrated w/ 8-port KVM ( local console )



Port # : 8 or 16 Connector : DB-15 Connectivity : VGA + USB KB / MS 2-in-1 KVM cable ( 6 / 10 / 15 feet )

Graphic Connector : 1 x DB-15 VGA Input device : 2 x USB type A for keyboard & mouse

Resolution : 16:10 - max. 1920 x 1200 / 4:3 - max. 1600 x 1200



F117 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console 1.73 x 17.4 x 18.1 in.
(44 x 442 x 460 mm.)
*Some options extend chassis depth to 18.9 in. ( 480 mm. )
Console w/ KVM 1.73 x 17.4 x 22.8 in.
(44 x 442 x 580 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM
5.5 x 23.2 x 31.8 in.
(140 x 590 x 808 mm.)
Net Weight
Single Console 23.8 lbs. (10.8 kg)
Console w/ KVM 25.5 lbs. (11.6 kg)
Gross Weight
Single Console 34.8 lbs. (15.8 kg)
Console w/ KVM 38.5 lbs. (17.5 kg)
Mounting Distance
Single Console 18.5 ~ 27.6 inch
(470 ~ 700 mm)
Console w/ KVM 18.5 ~ 31.5 inch
(470 ~ 800 mm)
Console Ports
Video Input VGA + DVI-D single link
Video Option HDMI 1.3 / HDCP 1.1
KB / MS Combo ( USB or PS2 )
VGA console 6ft cable (CB-6)
--OR--
DVI-D console 6ft cable (CX-6)
Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A
Drawer end : DVI-D + DB-15 ( USB KB / MS )
Server end : DVI-D + USB type A
LCD Screen
LCD panel size ( diagonal ) 17.3"
Backlight type LED
Native resolution 1920 x 1080
Brightness (cd/m2) 400
Colors 16.7 M, 8-bit
Contrast Ratio (typ) 600 : 1
Viewing angle ( L/R/U/D ) 80/80/60/80
Viewing angle (H x V) 160° x 140°
Response time ( ms ) 40
Dot pitch ( mm ) 0.1989
Display area ( mm ) 381.888H x 214.812V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
MTBF (hrs) 50,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Input Impedance / Power level 30? / 750mV
Output Connector 3.5mm stereo jack
Output Impedance / Power level 30? / 2.8V
Power
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen on Max. 25W / Max. 55W
Power saving mode Max. 4W / Max. 34W
Power button on Max. 1W / Nil
Environmental
Operating Temperature 0 to 55°C Degree
Storage Temperature -20 to 60°C Degree
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC, CE & CCC certified
Safety UL, cUL, CE / LVD & CCC certified
Environment RoHS2 & REACH compliant

The F117 series is also known as the F-117. The F117e comes with an integrated touchpad, while the F117b comes with an integrated trackball.

F117 models with Integrated KVM Switch

Austin Hughes CyberView F117 with Matrix CAT6 KVM
Matrix CAT6 KVM
Local User Extended IP 8-Port 16-Port 32-Port
1 1 1 - F117-MUIP1613 F117-MUIP3213
1 2 1 - F117-MUIP1614 F117-MUIP3214
1 1 2 - F117-MUIP1624 F117-MUIP3224
1 1 0 - F117-MU1602 F117-MU3202
1 2 0 - F117-MU1603 F117-MU3203
1 3 0 - F117-MU1604 F117-MU3204

Austin Hughes CyberView F117 with Combo CAT6 KVM
CAT6 KVM
Local User Extended IP 8-Port 16-Port 32-Port
1 0 1 F117-UIP802 F117-UIP1602 F117-UIP3202
1 1 0 F117-U802 F117-U1602 F117-U3202
1 0 0 F117-U801 F117-U1601 F117-U3201

Austin Hughes CyberView F117 with DVI-D KVM
DVI-D KVM
Local User Extended IP 12-Port
1 0 0 F117-1201D

Austin Hughes CyberView F117 with Matrix VGA DB-15 KVM
Matrix VGA DB-15 KVM
Local User Extended IP 8-Port 16-Port 32-Port
1 1 1 F117-MIP813 F117-MIP1613 -
1 2 1 F117-MIP814 F117-MIP1614 -
1 1 2 F117-MIP824 F117-MIP1624 -
1 1 0 F117-M802 F117-M1602 -
1 2 0 F117-M803 F117-M1603 -
1 3 0 F117-M804 F117-M1604 -

Austin Hughes CyberView F117 with VGA DB-15 KVM
VGA DB-15 KVM
Local User Extended IP 8-Port 16-Port 32-Port
1 0 1 F117-IP802 F117-IP1602 -

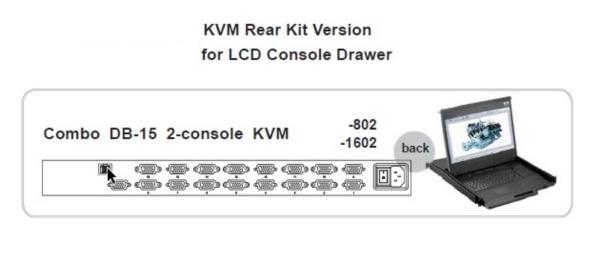

1 1 0 F117-802 F117-1602 -
1 0 0 F117-S801 F117-S1601 -

Austin Hughes CyberView F117 with USB HUb VGA DB-15 KVM
VGA DB-15 KVM with USB Hub
Local User Extended IP 8-Port 16-Port 32-Port
1 0 1 F117-IP802H F117-IP1602H -
1 1 0 F117-802H F117-1602H -
1 0 0 F117-801H F117-1601H -

Austin Hughes CyberView F117 with PS2 DB-15 KVM
VGA PS/2 KVM
Local User Extended IP 8-Port 16-Port 32-Port
1 0 0 F117-801 F117-1601 -
