KSR-RKP117-IP802e

Austin Hughes

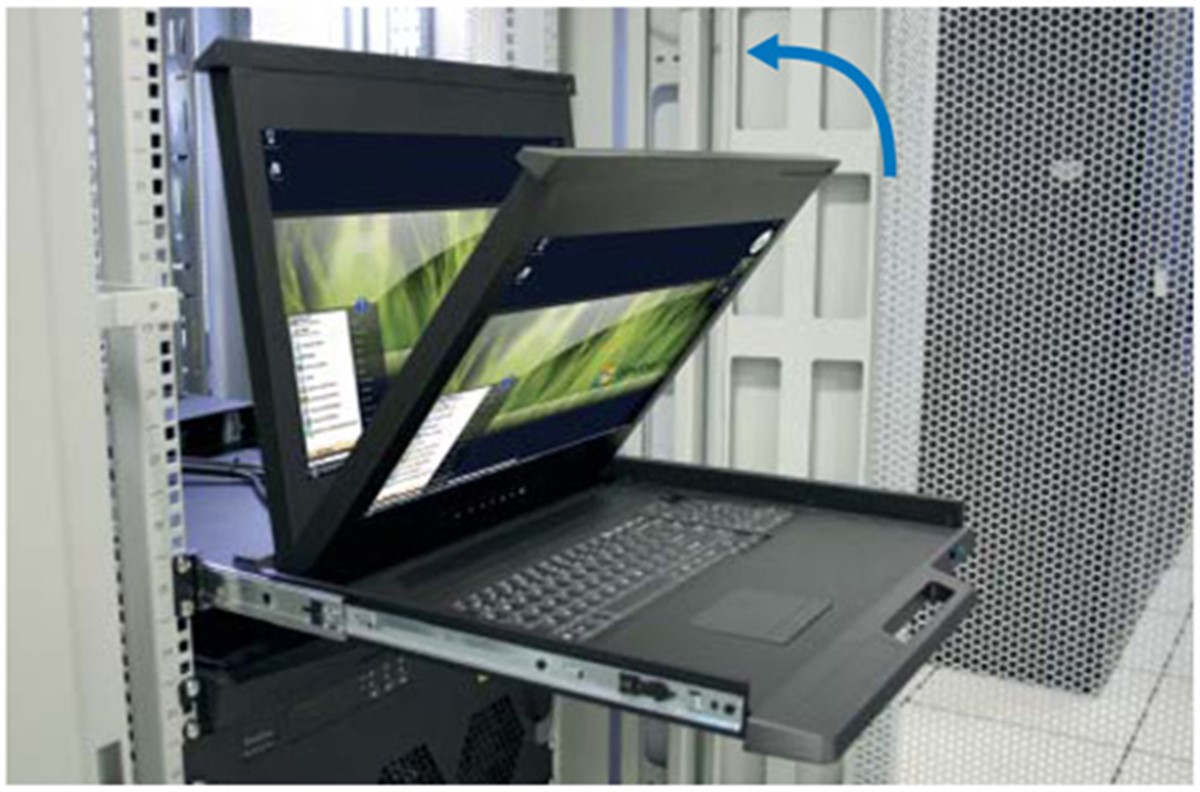

Cyberview Rackmount Monitor Keyboard Console RKP117-IP802e with KVM over IP Switch is a combination of Keyboard, Video and touchpad Mouse (KVM) in 1U rack drawer.

17" 1U Short depth Rackmount TFT LCD Monitor Keyboard Drawer. RKP Series is a combination of keyboard, mouse and monitor into a drawer, with features such as flip-up design, adjustable brackets, built-in LCD OSD to provide effective assistance for an administrator to control multiple PCs.

RKP-117 Features

  • Rack Monitor with 8 Port KVM over IP Switch in 1U

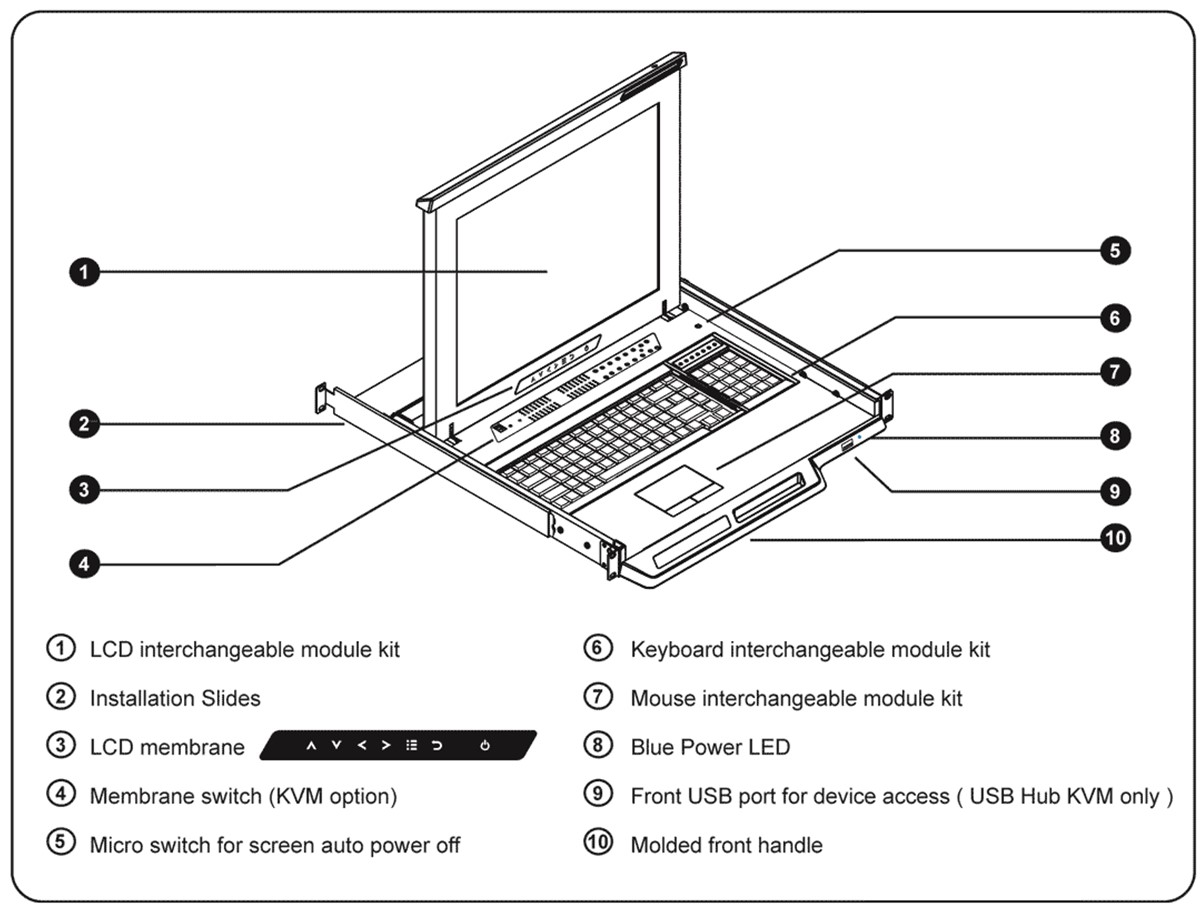

  • Unique mechanical design to maximize rack mountable space.
  • Short depth design of 460mm ( 18.1" )
  • Black anodized aluminium front panel
  • Notebook keyboard with touchpad or trackball supporting multiple languages.
  • Built-in on screen display controlled by integral membrane switches
  • Lock out rails to prevent movement of the keyboard
  • Front USB port for device access (USB Hub KVM only)
  • 1280 x 1024 native resolution / 16.7M colors
  • Rear rackmount bracket included.

RKP-117 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console 1.73 x 17.4 x 18.1 in.
(44 x 442 x 460 mm.)
Console w/ KVM 1.73 x 17.4 x 22.8 in.
(44 x 442 x 580 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM		 5.5 x 23.2 x 31.8 in.
(140 x 595 x 808 mm.)
Net Weight
Single Console 26.4 lbs. (12 kg)
Console w/ KVM 28.6 lbs. (13 kg)
Gross Weight
Single Console 36.5 lbs. (16.6 kg)
Console w/ KVM 41.8 lbs. (19 kg)
Mounting Distance
Single Console 18.5 ~ 27.6 inch
(470 ~ 700 mm)
Console w/ KVM 18.5 ~ 31.5 inch
(470 ~ 800 mm)
Console Ports
Video Input VGA
Video Option DVI-D single link
HDMI 1.2 / HDCP 1.1
S-Video ( 4-pin ) - NTSC & PAL
Composite ( BNC ) - NTSC & PAL
KB / MS Combo ( USB or PS2 )

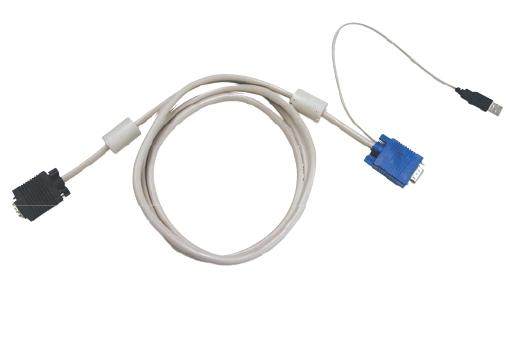

VGA console 6ft cable (CB-6) Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A
LCD Screen
LCD panel size ( diagonal ) 17"
Backlight type LED
Native resolution 1280 x 1024
Brightness (cd/m2) 250
Colors 16.7 M
Contrast Ratio (typ) 1000 : 1
Viewing angle ( L/R/U/D ) 85/85/80/80
Viewing angle (H x V) 160° x 160°
Response time ( ms ) 5
Dot pitch ( mm ) 0.264
Display area ( mm ) 337.92H x 270.33V
Surface treatment Haze 25%, Hard-coating
Surface hardness 3H
MTBF (hrs) 30,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Input Impedance / Power level 30? / 750mV
Output Connector 3.5mm stereo jack
Output Impedance / Power level 30? / 2.8V
Power
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen on Max. 25W / Max. 55W
Power saving mode Max. 4W / Max. 34W
Power button on Max. 1W / Nil
Environmental
Operating Temperature 0 to 55°C Degree
Storage Temperature -20 to 60°C Degree
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC, CE & CCC certified
Safety c UL us, CE / LVD & CCC certified
Environment RoHS2 & REACH compliant


F117 with Integrated KVM Switch


VGA DB-15 Combo		 Local User Extended IP 8-Port 16-Port 32-Port
1 0 1 RKP117-IP802 RKP117-IP1602 -
1 1 0 RKP117-802 RKP117-1602 -
1 0 0 RKP117-S801 RKP117-S1601 -
