RP-F821-125VDC

Austin Hughes

Cyberview RP-F821-125VDC is an 8U 21.5" Widescreen rackmount LCD monitor with features such as a built in LCD OSD to provide effective assistance for an administrator to control multiple PCs. VGA & HDMI inputs.   Powered by 125VDC

Cyberview RP-F821 is an 8U 21.5" Widescreen rackmount LCD monitor with features such as a built in LCD OSD to provide effective assistance for an administrator to control multiple PCs. VGA & DVI-D inputs.  Powered by 125VDC



The RP series provides a cost effective rackmount monitor solution for your limited IT budget in a space saving, highly customizable package.

RP-F821 Features & Benefits

  • 8U 21" LCD display panel
  • 1920 x 1080 native resolution / 16.7M colors
  • HDMI + VGA video input
  • PiP Sub-screen & PbP Dual-screen viewing

Available Upgrades



  • Dual stereo speakers for HDMI ( HS4.4 )
  • DVI-D + Audio input & output ( DV4.4 )
    ( with speakers )
  • DP 1.0 + HDMI-2.0 + Audio input & output ( DP )
    ( with speakers )
  • Composite + Audio IN + Speakers ( BNC )
  • 3G / HD / SD-SDI Broadcast-grade input ( SDI )
    ( with speakers )
  • Multi display OSD controller ( MCS )
  • MIL-type or lockable connector
  • DC power : 12V / 24V / 48V / 125V / 250V
  • Projected Capacitive 10-pt Touch Screen
  • Capacitive 1-pt Touch Screen
  • Resistive 1-pt Touch Screen

RP-F821 Specifications

Mechanical

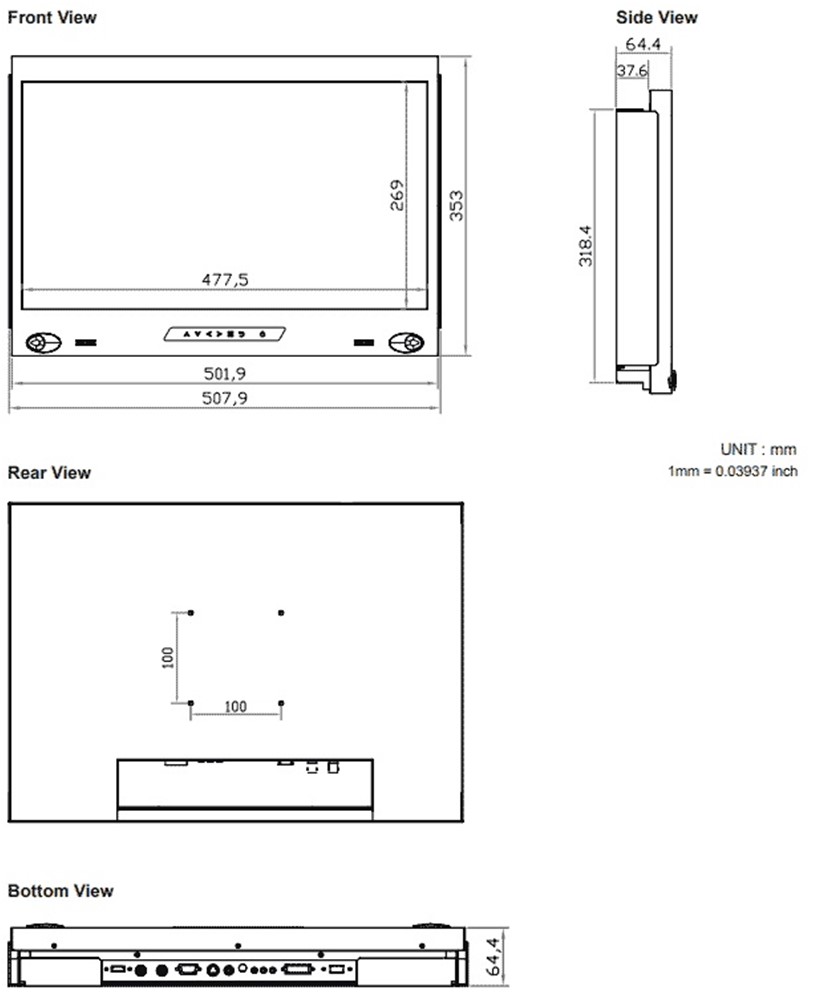

Product Dimensions (H x W x D) 13.9 x 19.8 x 2.5 in
( 353 x 502 x 64 mm )
Package Dimensions (H x W x D) 21.9 x 23 x 4.9 in
( 557 x 583 x 124 mm )
Net Weight 19.4 lb ( 8.8 kg )
Gross Weight 24.6 lb ( 11.2 kg )

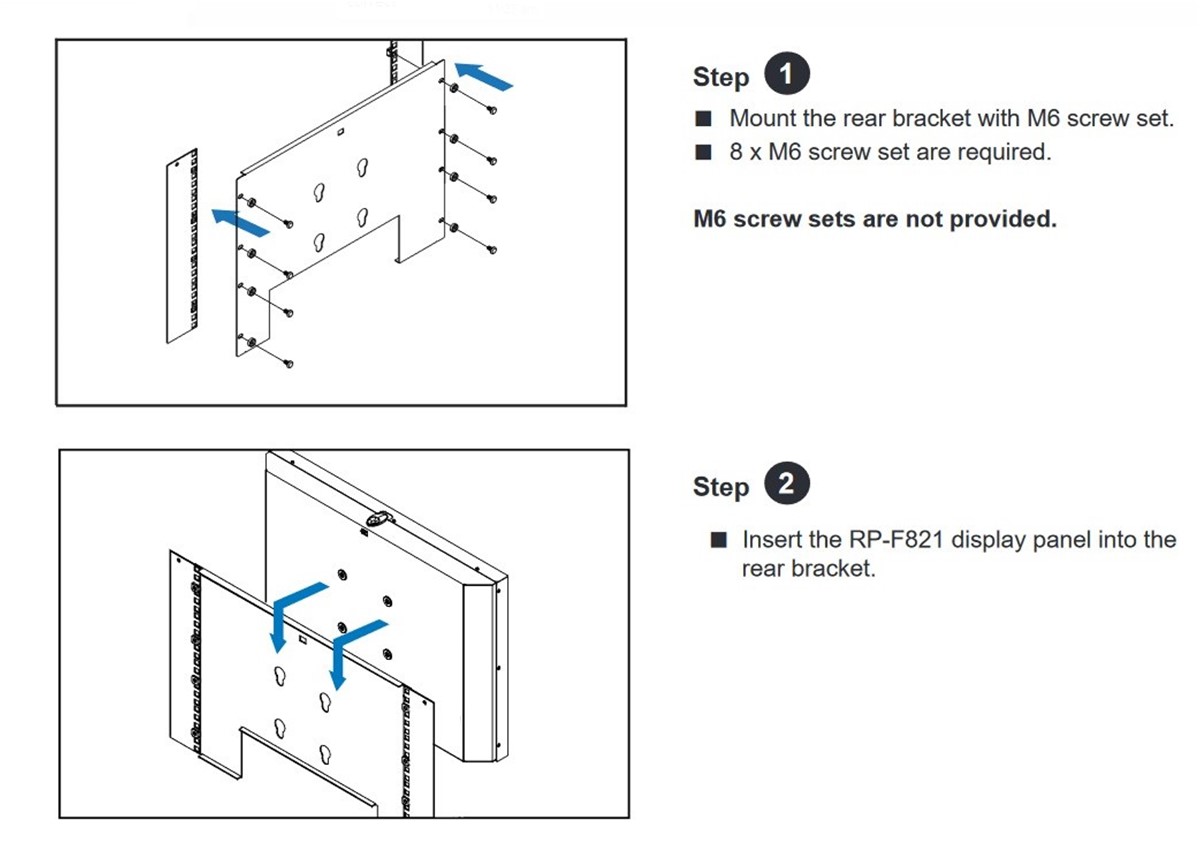

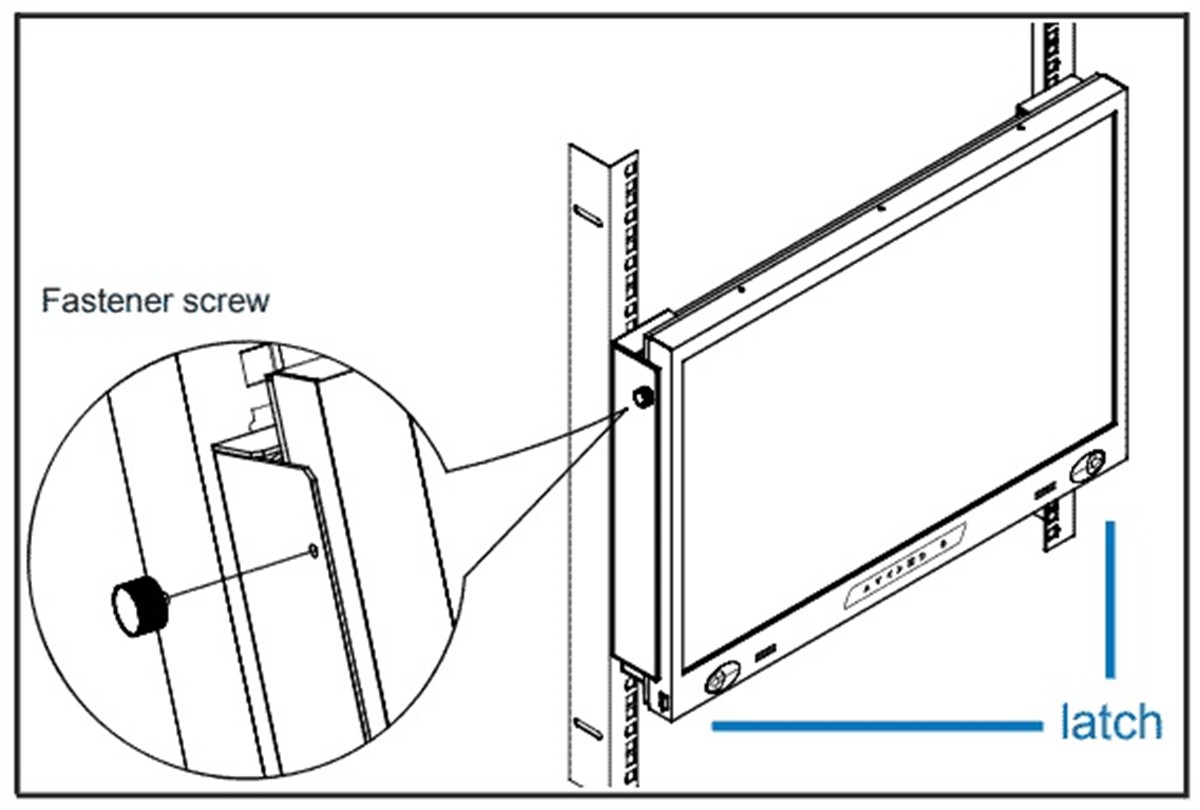

Mounting
Rackmount 8U
VESA mount 100*100 mm

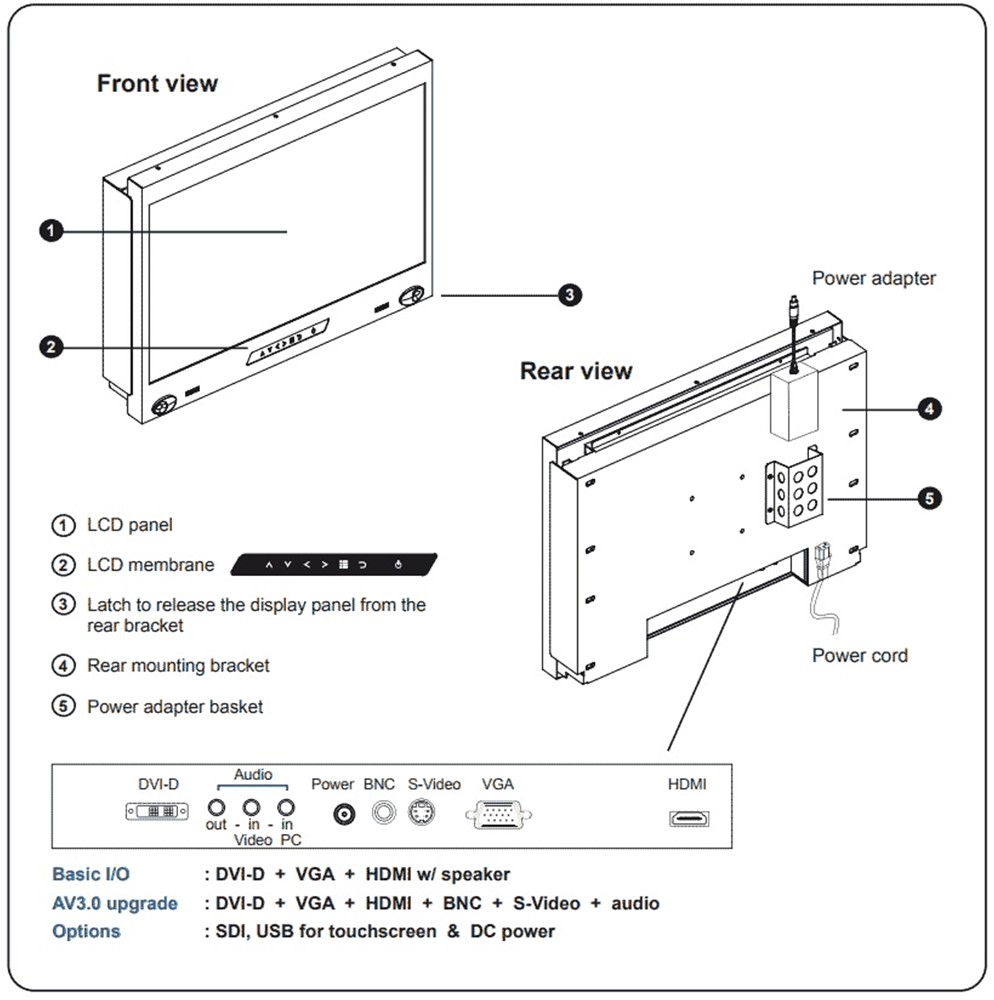

Console Ports
Video Input VGA + HDMI
Video Option DVI-D
S-Video ( 4-pin ) - NTSC & PAL
Composite ( BNC ) - NTSC & PAL
LCD Screen
LCD panel size ( diagonal ) 21.5"
Backlight type LED
Native resolution 1920 x 1080
Brightness (cd/m2) 250
Colors 16.7 M
Contrast Ratio (typ) 1000 : 1
Viewing angle ( L/R/U/D ) 85/85/80/80
Response time ( ms ) 5
Dot pitch ( mm ) 0.248
Display area ( mm ) 476.64H x 268.11V
Surface treatment Haze 25%, Hard-coating
Surface hardness 3H
MTBF (hrs) 30,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Input Impedance / Power level 30? / 750mV
Output Connector 3.5mm stereo jack
Output Impedance / Power level 30? / 2.8V
Power
Power Input 125VDC
Power Consumption
Screen on Max. 32W
Power saving mode Max. 4W
Power button on Max. 1W
Environmental
Operating Temperature 0 to 55°C Degree
Storage Temperature -20 to 60°C Degree
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant
