RP-X617-TRB

Austin Hughes

Cyberview 6RU Rackmount Display Panel with USB Resistive Touchscreen 16.2" Widescreen 1920 x 1200 LCD - VGA/DVI-D/HDMI

The RP-X617 is a 6U 16.2" Widescreen rackmount LCD monitor with features such as a built in LCD OSD to provide effective assistance for an administrator to control multiple PCs. The RP series provides a cost effective rackmount monitor solution for your limited IT budget in a space saving, highly customizable package.

RP-X617 Features & Benefits

  • 6U 17" LCD display panel
  •  1920 x 1200 WUXGA native resolution / 16.7M colors ( 8-bit )
  •  HDMI 1.4 + DVI-D + VGA video input
  •  PIP Sub-screen & PBP Dual-screen viewing efficiency
  •  Built-in dual stereo speakers
  •  2-year standard warranty ( upgradable up to 5 years )

Available Upgrades

  • Basic I/O: VGA + DVI-D + HDMI + audio
  •  Optional I/O: 3G / HD / SD-SDI
  •  Options: USB for touchscreen, DC power & SDI



RP-X617 Specifications

Mechanical

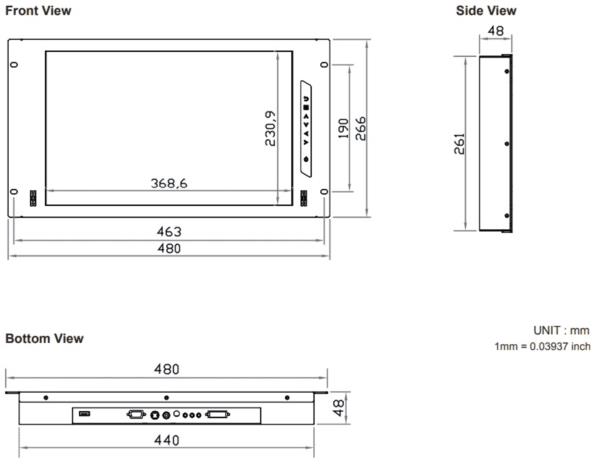

Product Dimensions (H x W x D) 10.5 x 18.9 x 1.9 in
( 266 x 480 x 48 mm )
Package Dimensions (H x W x D) 17.8 x 20.8 x 4.9 in
( 451 x 529 x 124 mm )
Net Weight 9.2 lb ( 4.2 kg )
Gross Weight 13.6 lb ( 6.2 kg )
Console Ports
Video Input HDMI 1.4 + DVI-D single link + VGA (optional)
LCD Screen
LCD panel size ( diagonal ) 16.2"
Backlight type LED
Native resolution 1920 x 1200
Brightness (cd/m2) 300
Colors 16.7 M, 8-bit
Contrast Ratio (typ) 800 : 1
Viewing angle ( L/R/U/D ) 89 / 89 / 89 / 89
Response time ( ms ) 30
Dot pitch ( mm ) 0.191
Display area ( mm ) 343.8H x 214.9V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
MTBF (hrs) 20,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Input Impedance / Power level 30? / 750mV
Output Connector 3.5mm stereo jack
Output Impedance / Power level 30? / 2.8V
Power
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
Screen on Max. 34W
Power saving mode Max. 4W
Power button on Max. 1W
Environmental
Operating Temperature 0 to 55°C Degree
Storage Temperature -20 to 60°C Degree
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant
