Dock KD-E20

AV Access

New USB C KVM Switch Docking Station for 2 Laptops & 4K Dual Monitor, 11-in-1 Design (100W PD), 1G Ethernet Port, EDID Emulation

New USB C KVM Switch Docking Station for 2 Laptops & 4K Dual Monitor, 11-in-1 Design (100W PD), 1G Ethernet Port, EDID Emulation.

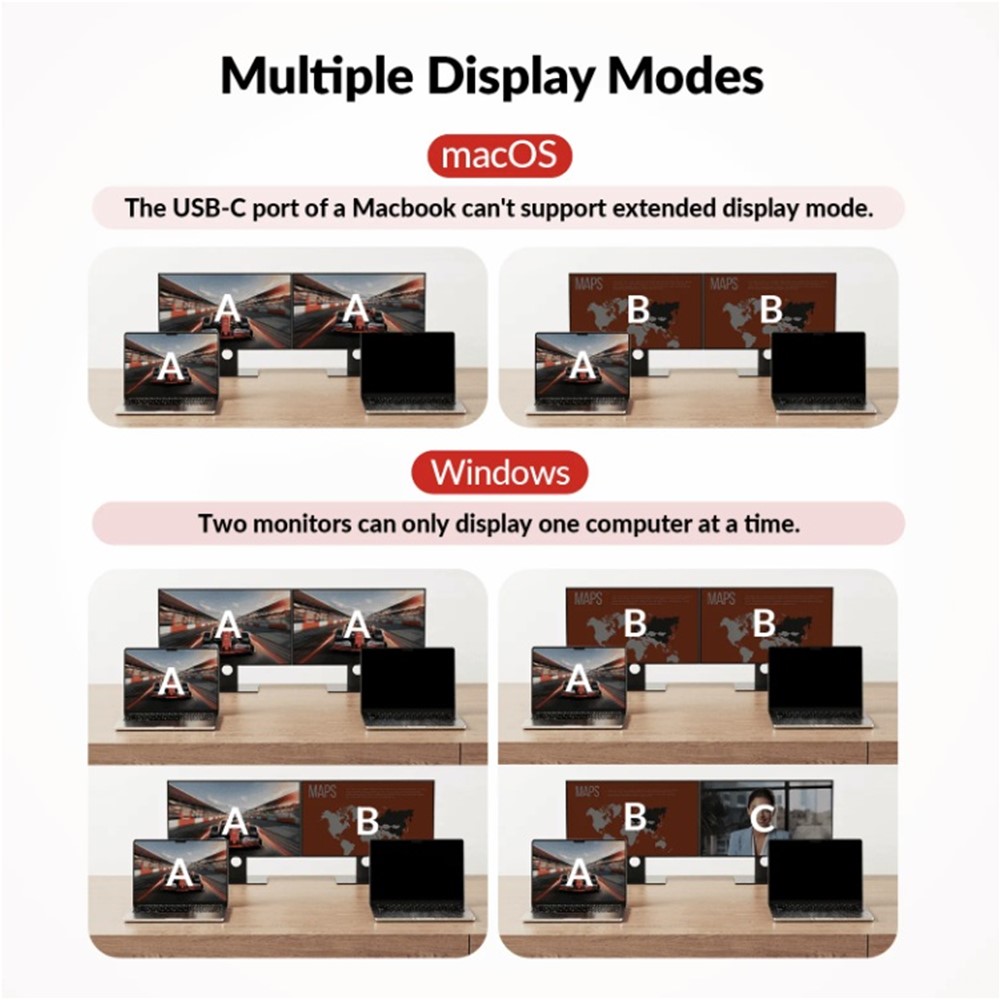

  • Dual-Laptop Docking & Dual Monitors: Connect two laptops and enjoy dual 4K@60Hz displays for efficient multitasking. Note: MacOS doesn’t support USB C MST, so external monitors will show duplicate content.

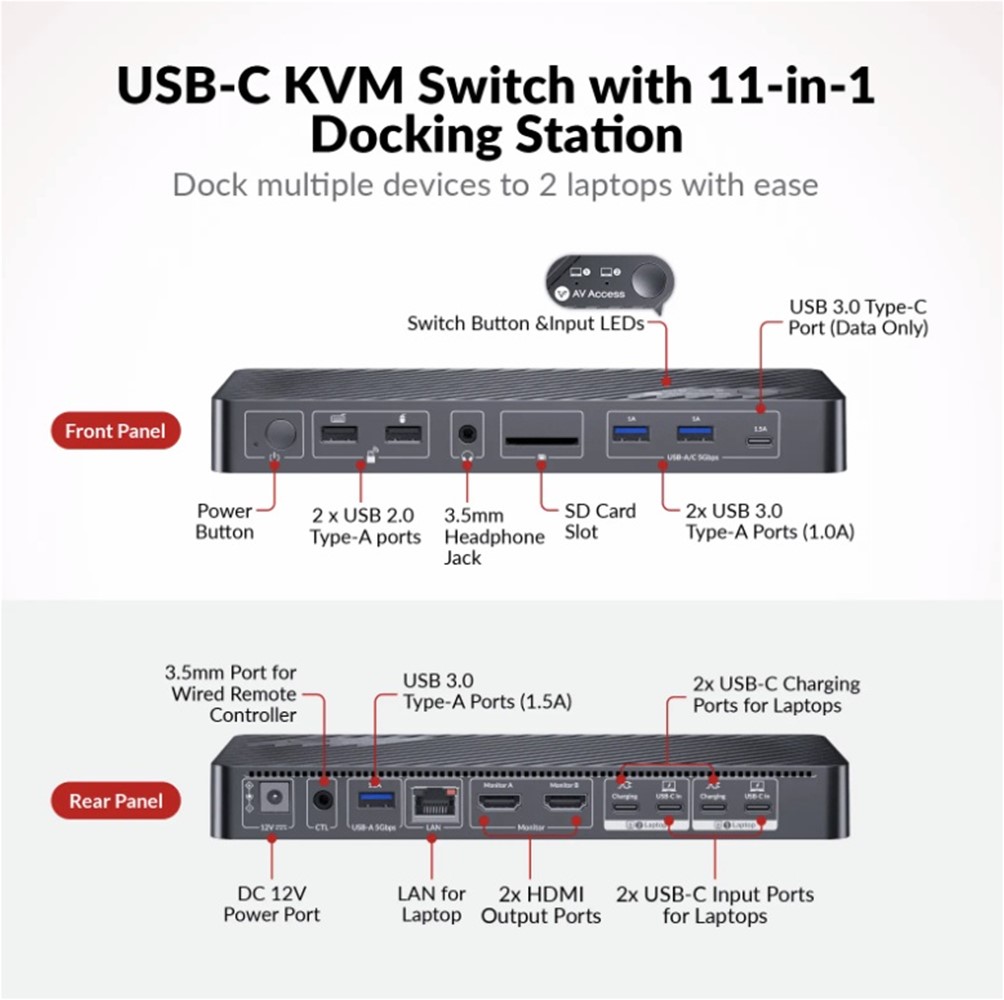

  • 11-in-1 Docking Station: Expand your workspace with multiple ports, including HDMI, USB, Ethernet, and more.
  • 1G LAN Port: Ensure stable and fast wired network for both laptops, no matter which laptop you switch to.

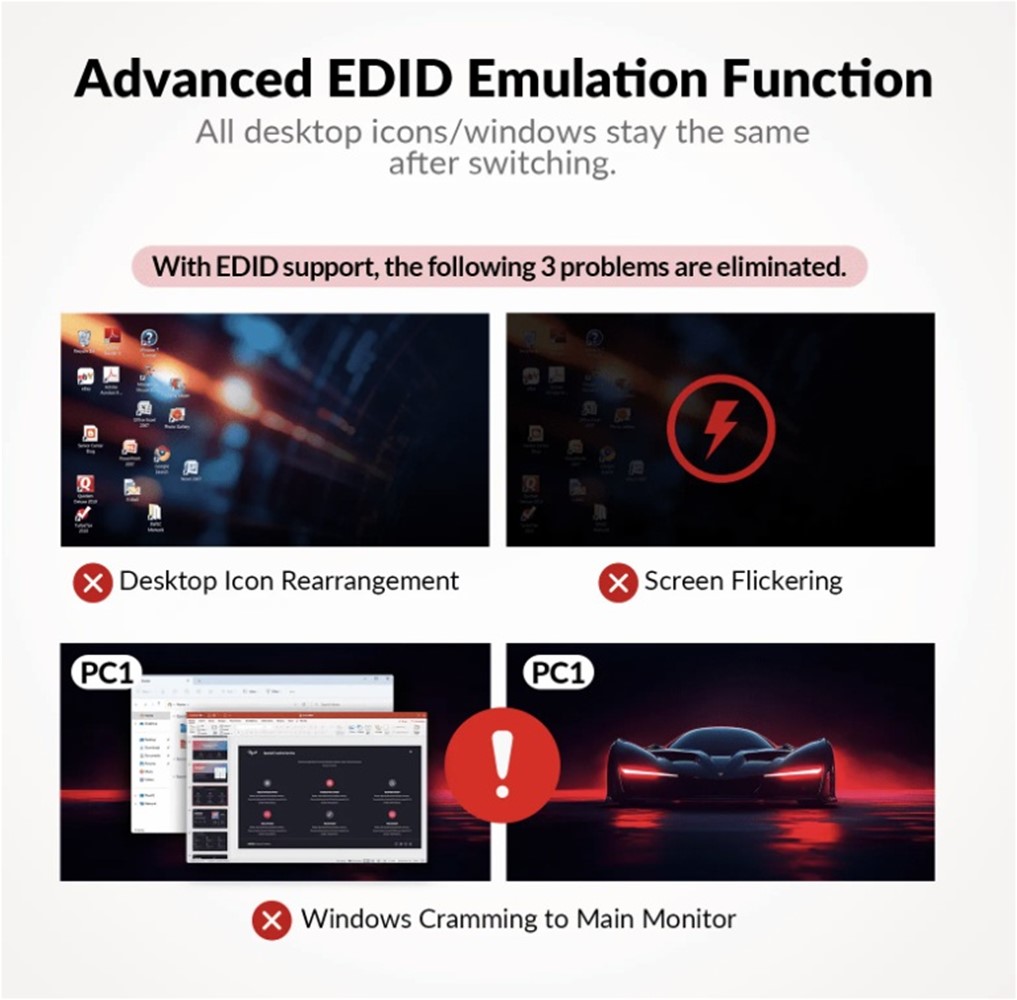

  • EDID Emulation: Prevents screen flickering and icon rearrangement when switching devices.
  • Full-Featured USB C: One USB C connection supports dual 4K@60Hz videos, up to 5Gbp/s data transfer, Gigabit Ethernet, and up to 100W charging (additional power adapter required for laptop’s charging).
  • Fast Switching: Seamless transitions between devices in just 2-3 seconds.



* Important Notes:

1. MacOS doesn’t support USB-C MST (multi-stream transport), so two duplicate contents will be displayed. The power adapter for the KVM switch is included in the package. When charging your laptop, please additionally use your laptop’s original adapter.
2. Supports ultrawide resolution of 3440 × 1440 @ 60 Hz. When connected to a 5120 × 1440 display, the output is limited to 3840 × 1080.

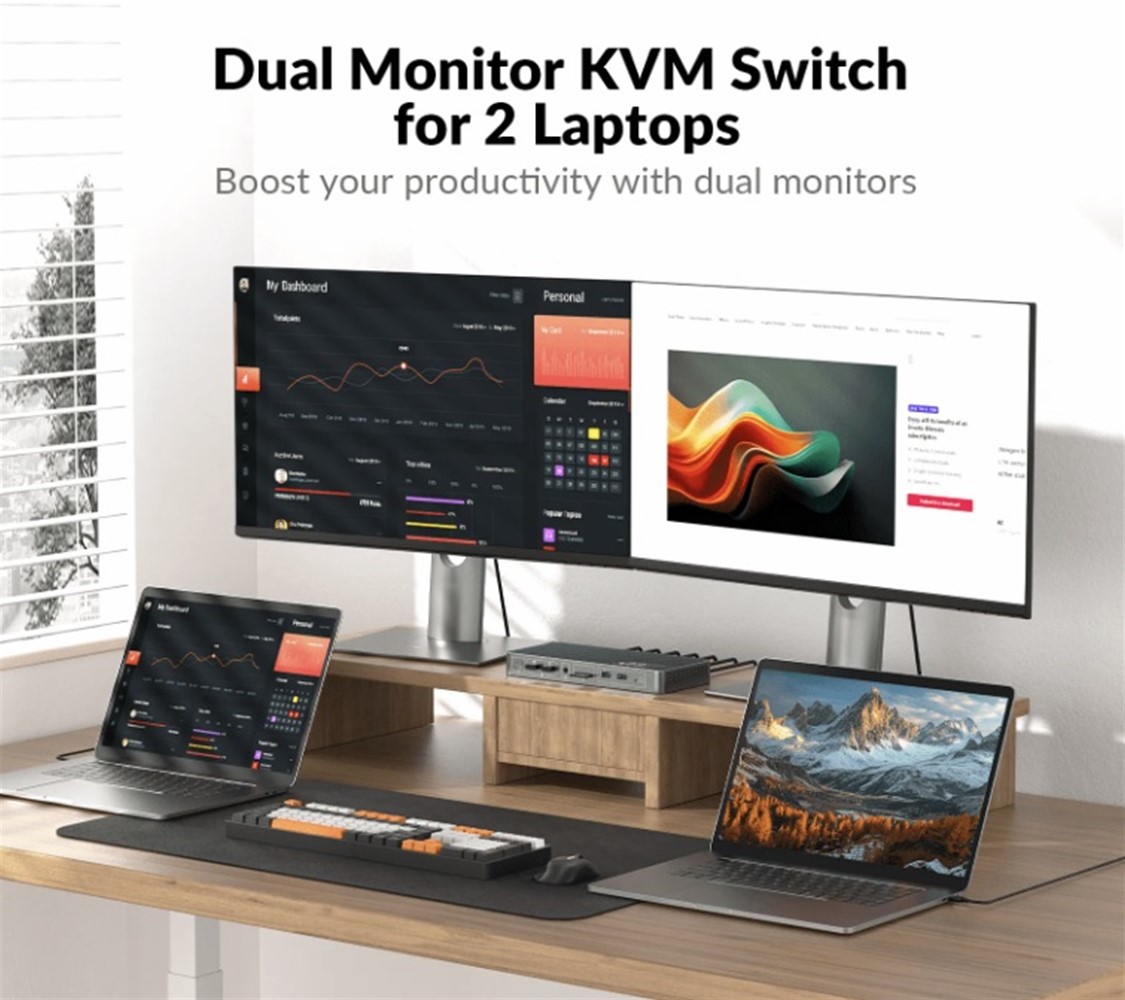

Two Laptops, Two Screens, One Solution.   Work Smarter, Switch Faster

Maximize Productivity, Minimize Hassle.   Switch, Share, Simplify
Effortlessly connect two laptops, enjoy dual 4K displays, and power up your workflow with KD-E20 — your ultimate dual-laptop docking solution.

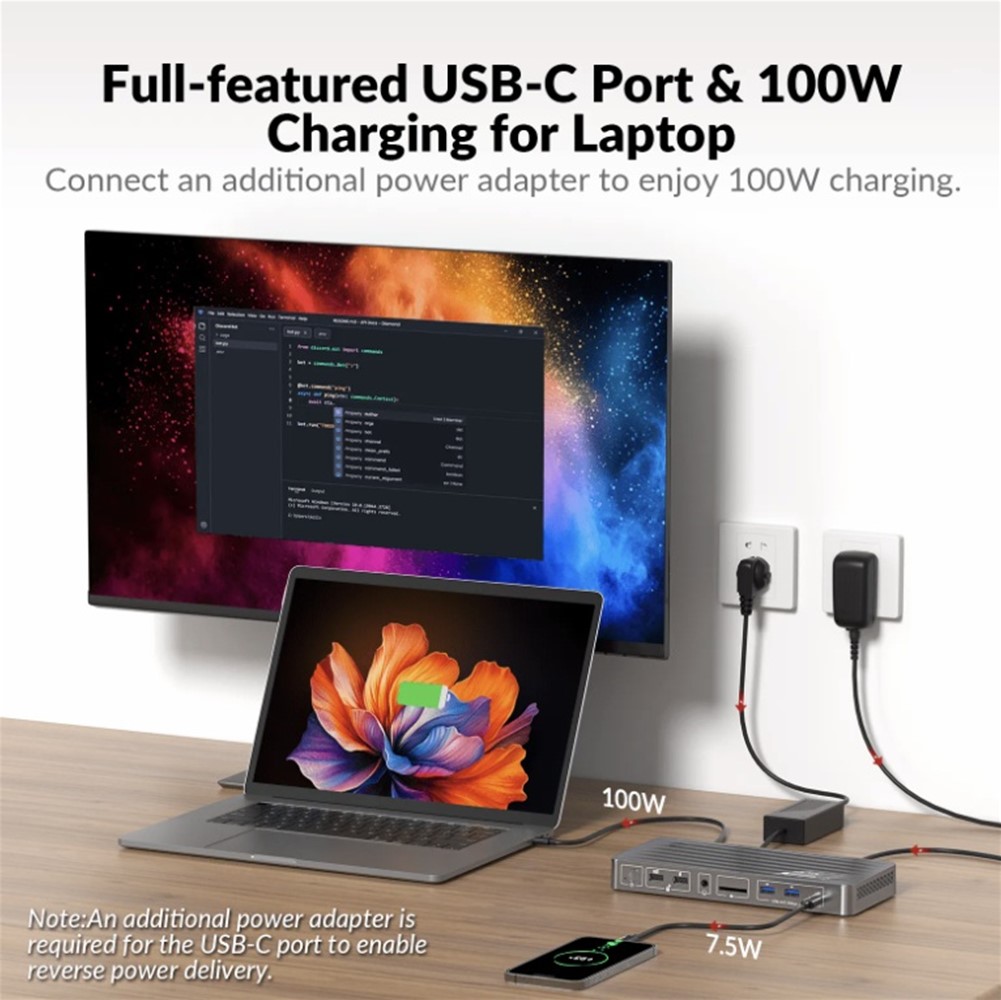

Power, Video, and Data in One Port
The 20Gbps USB C port delivers 4K video, 5Gbps data transfer, and up to 100W charging simultaneously — your all-in-one solution for productivity and connectivity.

Note: When charging your laptop, please additionally use your laptop’s original adapter.

Boost Connectivity with a Docking Station

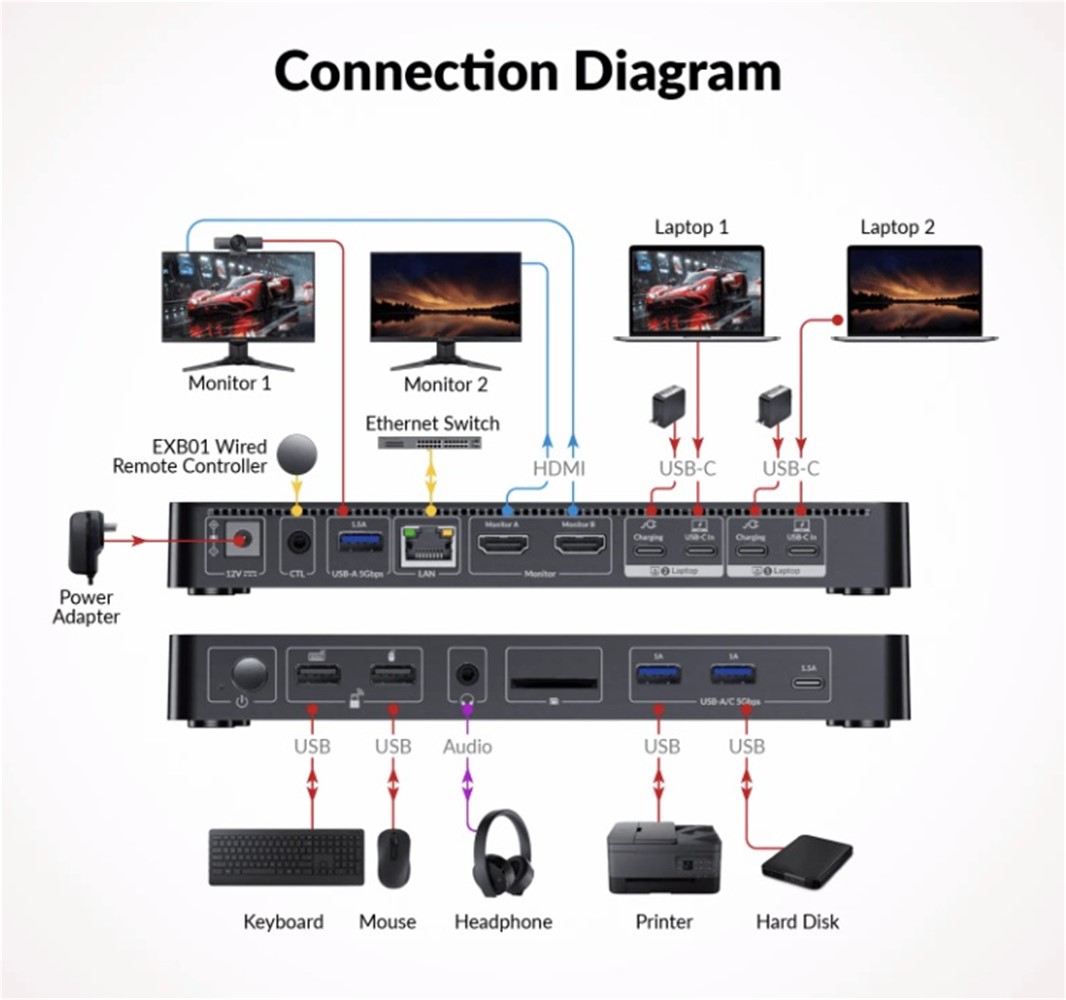

With KD-E20, you can easily share an 11-in-1 docking station between two laptops. Perfect for creating a streamlined and efficient workstation, whether at home or in the office.

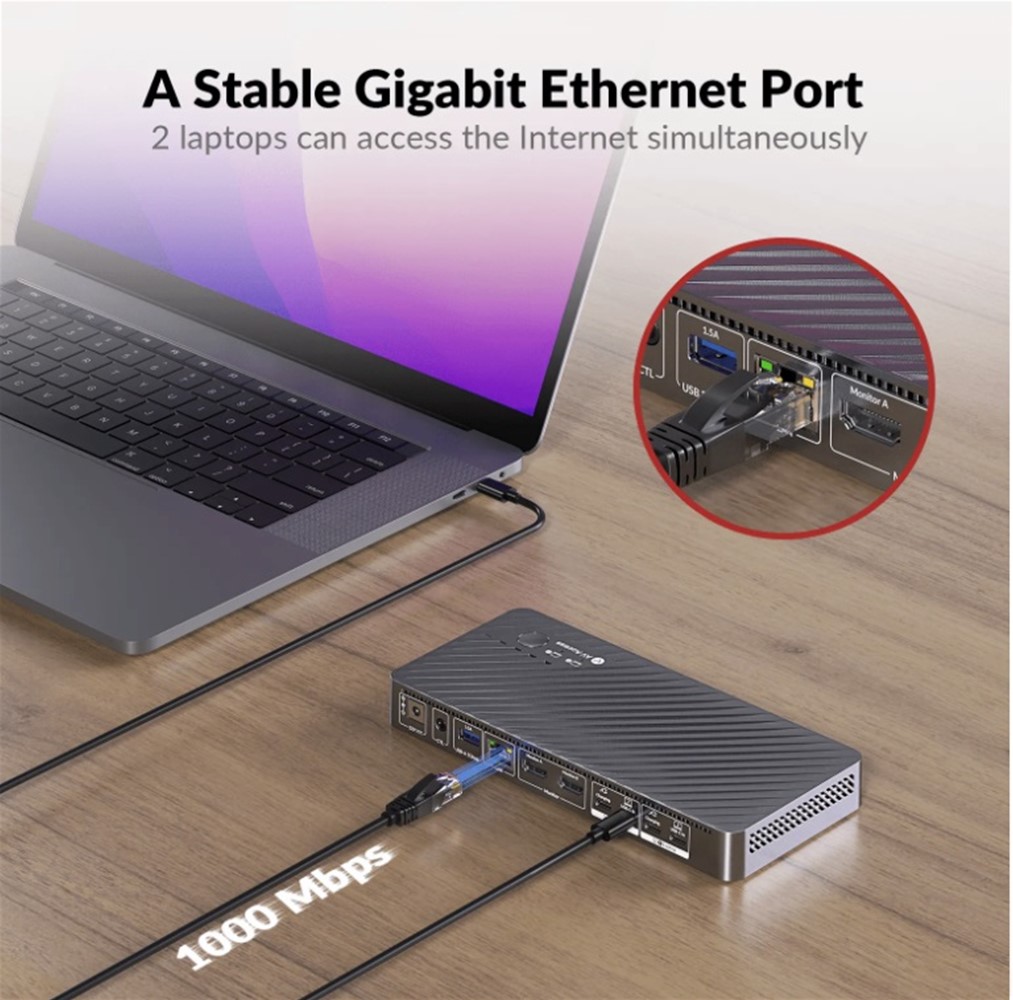

1G Ethernet Port, Stay Connected

The KD-E20 features a single Gigabit LAN port that seamlessly provides stable, high-speed internet to two laptops. Enjoy reliable connections for both devices without hassle!

Quick Device Switching for Efficiency
Easily switch between your two laptops with just one tap or click—seamless transitions in 2–3 seconds for a smoother workflow.



In the Box

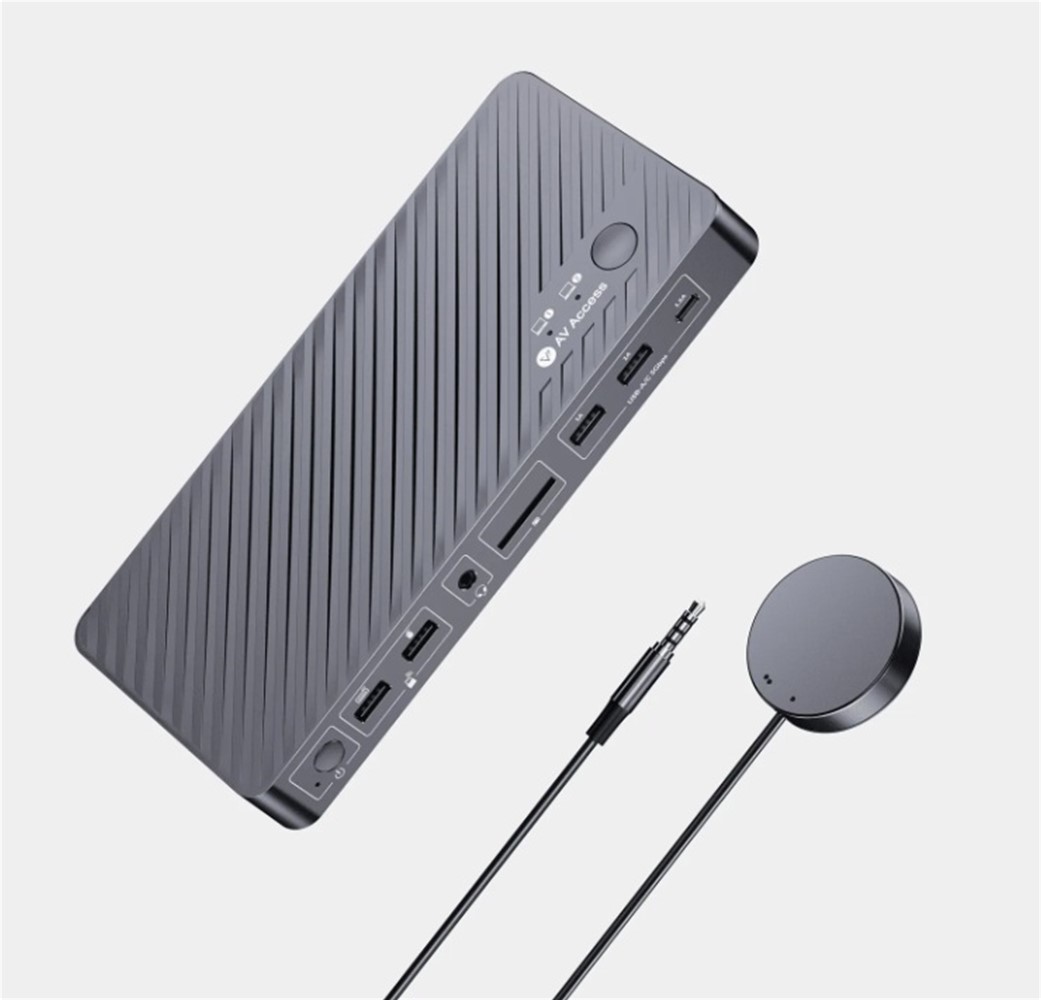

1 x KVM Switch Docking Station
1 x Power Adapter (DC 12V/3A)
2 x USB 3.2 Gen 2 Type-C to Type-C Cable (L = 1m/3.2ft)
1 x Wired Remote Controller (EXB01)
1 x User Manual

Technical
Input USB C supports: 100W Charging (PD 2.0), USB 3.0 (up to 5Gbps), and up to 4K@60Hz (DP MST) two video transmission
Output HDMI 2.0b, up to 4K@60Hz 4:4:4 8bit and HDCP 2.2
Peripheral and Expansion USB C x1: Up to 5Gb/s, 1.5A power output.

USB-A x5:

· Three USB 3.0 ports, up to 5Gb/s, and two of them supports 1A power output, and the other one supports 1.5A power output

· Two USB 2.0 ports, up to 480Mb/s

SDXC card: Up to 104MB/s, maximum support 2TB.

LAN: RJ-45 connector, support for 1Gb Ethernet performance (work with two USB C Laptops simultaneously)
Input/Output Resolution Supported SMPTE:

1280x720P1,2,3,4,5,6,7,8, 1920x1080I6,8, 1920x1080P1,2,3,4,5,6,7,8,9,10,11,12, 2560×10809, 3840×10809, 3840×21602,3,5,6,8, 4096×21602,3,5,6,8

VESA:

800×6008, 1024×7688, 1280×7688, 1280×8008, 1280×9608, 1280×10248, 1360×7688, 1366×7688, 1400×10508, 1440×9008, 1600×9008, 1600×12008, 1680×10508, 1920×12008, 2560×14401,2,3,4,5,6,7,8,9,10

1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = 120Hz, 10 = 144Hz, 11 = 165Hz, 12 = 240Hz
Audio Format Supported HDMI Out: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X

USB C In: Fully supports multiple channel audio formats, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X

Headphone: Stereo
General
Operating Temperature 0°C to + 45°C (32 to + 113 °F)
Storage Temperature -20 to +70°C (-4 to + 158 °F)
Humidity 20% to 90%, non-condensing
Power Consumption 28.2W (Max)
Dimensions (W x H x D) 220mm x 25.2mm x 100mm/ 8.66’’ x 0.99’’ x 3.94’’
Product Weight 0.72kg/1.59lbs
