GD-A1110216

Guntermann and Drunck

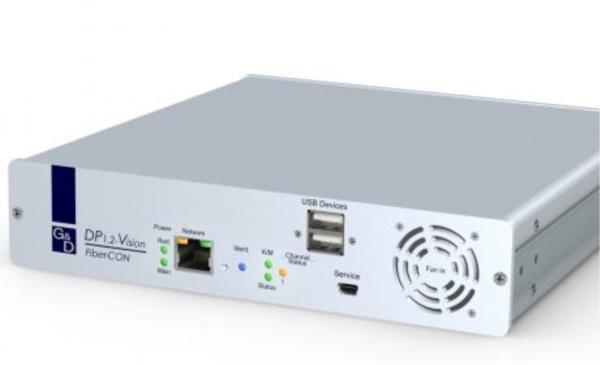

DP1.2-Vision uses fibre optics to transmit signals up to 10,000 m (Fiber). The devices use DisplayPort 1.2 video and are available as single and multi channel variant (in preparation). It is also possible to transmit transparent USB 2.0, RS232 and audio signals. The system consists of a computer module (transmitter) and a user module (receiver) and enables you to operate a computer on a local or remote console.

Video

  • Support of DisplayPort 1.2a video
  • Support of 4K and ultra HD resolutions at 60 Hz
  • Transmission is compressed, pixel perfect, with low latency and ideal hand eye coordination
  • Pixel encoding RGB 4:4:4 with 24bpp / 8bpc
  • Resolution with pixel rates between 25 MPixel/s and 600 MPixel/s at the computer module, at the local console and at the user module
  • 24 bit colour depth
  • Exemplary resolutions: 4096x2160/60Hz (4Kp60Hz), 3840x2160/60Hz (Ultra-HD/60Hz), 1920x1200/60Hz, 2560x1600/60Hz, 2048x2048/60Hz (2Kx2K)
  • Further VESA and CEA standardized resolutions with refresh rates within the range of the maximum pixel rate as well as horizontal and vertical frequency possible
  • Horizontal frequency: 25kHz - 180kHz
  • Vertical frequency: 24Hz - 200Hz

Operation

  • Can be operated in extender or matrix mode
  • Ident LED to quickly find devices in complex installations
  • Web interface for configuration, monitoring and updates
  • SNMP (trap and agent)
  • Permanent keyboard and mouse emulation
  • Permanent monitor emulation
  • E-EDID support
  • Local console at computer module
  • Freeze function at remote console

Signals

  • Embedded audio on DisplayPort up to stereo PCM
  • Audio stereo bidirectional
  • RS232 transparent
  • Support of PS/2 and USB keyboard/mouse (even in mixed mode). On computer side, PS/2 keyboard only
  • Optional transparent USB2.0 (16Mbit/s) transmitted on primary KVM transmission channel
  • Optional transparent USB2.0 (HiSpeed, 480Mbit/s) transmitted on additional transmission channel

Transmission

  • Distances up to 140 meters at maximum resolution over CAT-x cable (depending on cable: x = 5e, 6, 7)
  • Distances up to 400 metres at maximum resolution with multimode fiber optics
  • Distances up to 5,000 (S) or 10,000 m (S+) metres at maximum resolution with singlemode fiber optics

Device

  • Redundant power supply
  • Internal power pack for main power supply
  • Ventilation concept for the use in cold/hot aisle installations
  • Support through KVM-NetworkCenter
  • Galvanic separation of transmitter and receiver with fiber optics, resistant against interference radiation
  • High reliability

System update

  • Over the config panel

ARU2 = USB2.0 full speed, not embedded in KVM transmission line =  additional cable = additional port on CCC Switch
