GD-A1420199

Guntermann and Drunck

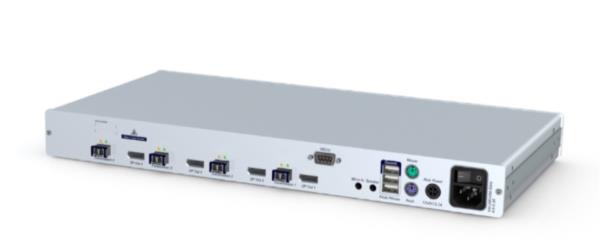

DP-Vision - transmission of DisplayPort™ signals via CAT.   The system consists of a computer module (transmitter) and a user module (receiver) and enables you to operate a computer on a local or remote console.DP-Vision uses CAT-x cables to transmit up to 140 m.   The devices use DisplayPort video and are available as variants displaying 1, 2, 3 or 4 video channels. It is also possible to transmit transparent USB 2.0, RS232 and audio signals.


Video

Highly developed compression algorhythm of the latest generation for best video quality and latency-free transmission - The High-Dynamic-Image-Processing level 3
DisplayPort 1.1a signals
Resolutions per channel up to 2560 × 1600 @ 60 Hz (more VESA and CEA standardized resolutions within the video bandwith and the horizontal / vertical frequency are possible, e.g. 1600 x 1200 @ 60 Hz)
Hz to 120 Hz
24 bit colour mode
Transparent forwarding of E-DDC information
Single- and multi-channel variants

Operation
At both modules console with all video channels
via Web-Interface or OSD
Competing or exclusive operation via local or remote workplace

Signals
Transmission of bidirectional audio and RS232
PS/2 and USB keyboard/mouse support
Integrated USB 2.0 transmission with Full Speed (ARU variant)
Transparent transmission of USB 2.0 with Hi-Speed 480 MBit/s (ARU2 variant)
Generic USB-HID interface for connecting any HID device, e.g. touchscreens or tablets

Transmission
Distances up to 140 meters at maximum resolution over CAT-x cable (x = 5e, 6, 7; depending on cable)
Distances up to 400 metres at maximum resolution with multimode fiber optics
Distances up to 5,000 (S) or 10,000 m (S+) metres at maximum resolution with singlemode fiber optics

Device
Supports PS/2 and USB keyboard/mouse; allows mixed operation
Permanent keyboard/mouse emulation
Redundant, external power supply (optional)
Ident LED helps finding the device in complex installations
Shipped as desktop variant (Twin devices and sets for rack- or tablemounting are seperately available)

System update
Over the config panel
