GD-A2100190

Guntermann and Drunck

This KVM switch DP1.2-MUX3-ATC enables you to operate up to three computers via one console.  The console is provided with a keyboard, a mouse and a DisplayPort™ monitor. The computers connected to the KVM switch are operated from the installed console.


This KVM switch DP1.2-MUX3-ATC enables you to operate up to three computers via one console. The KVM switch with Instant switching technology and native 4K UltraHD support


The console is provided with a keyboard, a mouse and a DisplayPort™ monitor. The computers connected to the KVM switch are operated from the installed console.

The KVM switch DP1.2-MUX3-ATC enables you to operate up to three computers via one console.

The console is provided with a keyboard, a mouse and a DisplayPort™ monitor. The computers connected to the KVM switch are operated from the installed console.

Thanks to the newly developed instant switching technology the switching process between computers is done in real time and takes place either via the push buttons on the front panel, configurable key combinations, or a serial device which is connected to the Service- or RS232 port.

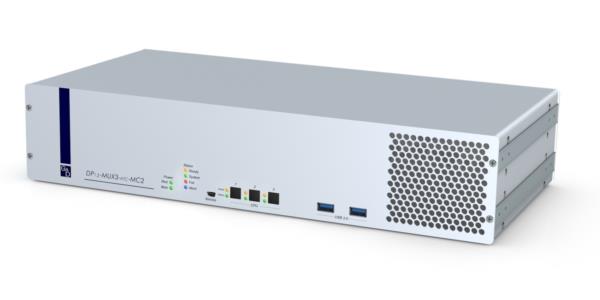

The front panel of the device provides two USB 3.0 interfaces to operate any USB devices. The connected USB devices are available to whichever active computer.

The KVM switch emulates keyboard and mouse on each channel and hence guarantees error-free booting at all times.

The DP1.2-MUX3-ATC switches the following signals:DisplayPort™ 1.2a and 1.1a

  • Keyboard/mouse
  • Audio (analog and embedded)
  • USB 3.0 transparent

Video resolution

Up to 4096 x 2160 @ 60Hz (4K @ 60 Hz) at 24 bit colour depth. More standardized resolutions within the max. pixelrate (600MHz, min. 25MHz) and refresh rate between 24 and 120 Hz possible.



The DP1.2-MUX3-ATC switches the following signals:

  • DisplayPort™ 1.2a and 1.1a
  • Keyboard/mouse
  • Audio (analog and embedded)
  • USB 3.0 transparent

Video

  • DisplayPort™ 1.2 on input and output side
  • E-DDC support
  • Resolution with pixel rates between 25 MP/s and 600 MP/s
  • Colour depth: 24 Bit
  • Horizontal frequency: 25 kHz - 295 kHz
  • Vertical frequency: 20 Hz - 240 Hz

Exemplary resolutions:

  • 4096 × 2160 @ 60 Hz (4K @ 60 Hz)
  • 3840 × 2160 @ 60 Hz (Ultra-HD @ 60 Hz)
  • 2560 × 1600 @ 60 Hz
  • 2560 x 1440 @ 144 Hz
  • 1920 × 1200 @ 60 Hz
  • 1920 x 1080 @ 240 Hz
  • 2048 × 2048 @ 60 Hz (2K x 2K)



Further standardized resolutions with refresh rates within the range of the maximum pixel rate as well as horizontal and vertical frequency possible.

Highlights

  • Switches analog and embedded audio and transparent USB 3.0
  • Data transfer rate up to 21,6 Gbit/s (DP1.2) or 10,8 Gbit/s (DP1.1)
  • Suitable for all operating systems
  • Instant switching technology
  • Hot-pluggable
  • Screen freeze function indicates loss of video signal
  • DDC/CI support
  • OSD
  • Automatic channel switching in case of signal loss

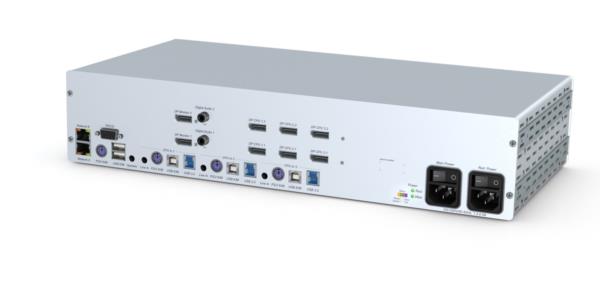

  • 2 network interfaces
  • Web application Config Panel 21 for remote configuration and displaying of the Monitoring values and channel switching
  • Redundant power supply
  • Channel switching via hotkey, SNMP, buttons, OSD, Webinterface, IP-Control or external serial device
  • Comprehensive proactive diagnostics by monitoring and SNMP
  • User management

Design

  • Available as desktop (DT) or rack mount (RM) variant

Video channels

  • Singlechannel
  • Multi-Channel 2

Peripheral connections

  • Available for USB connections
