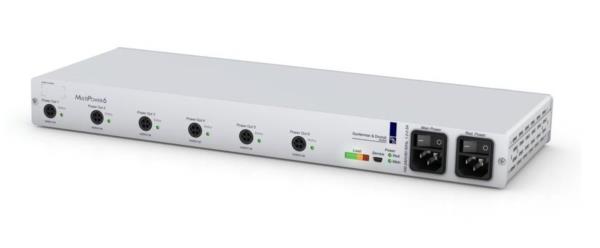

Guntermann and Drunck GD-A4110032

GDSys MultiPower - 6 provides up to 6 output interfaces (12V)

Multipower-6: up to 6 output interfaces (depends on the device) supply G&D devices with 12V and max. 1.2 A

Enables external monitoring of the device status

.

P.O.A.
Login for Reseller Pricing

21 days from Order

Quantity
click to enlarge

Device

  • Central power supply, for example in racks
  • Multipower-6: up to 6 output interfaces (depends on the device) supply G&D devices with 12V and max. 1.2 A
  • Enables external monitoring of the device status

MultiPower-6
Interfaces
To G&D device 6 × Mini-DIN 4 socket
Supply of the connected devices
Voltage 12 Volt
Max. power consumption per output 1,2 A
Housing
Material Anodised aluminium
Desktop (W × H × D) 435 × 44 × 154.5 mm
Rack mount (W × H × D) 19" × 1U × 154.5 mm
Main power supply
Type Internal power pack
Connector 1 × IEC plug
Voltage AC100-240V/60-50Hz
1.2A - 0.5A
Redundant power supply
Type Internal power pack
Connector 1 × IEC plug
Voltage AC100-240V/60-50Hz
1.2A - 0.5A
Update
Mode Local service socket
Connector 1 × miniUSB at device
Operation
Temperature +5 to +40 °C
Air humidity <80% non-condensing
Conformity CE, RoHs
