Icron I-USB-1850

ICRON USB Rover 1850 - Cat5 Single USB Extender Pair, 00-00301 1850

The Icron USB Rover®1850 extends USB 1.1 connections beyond the desktop up to 85* meters without external power adapters over a single Cat5e cable, ideal for keyboards, mice,  game controllers and interactive whiteboards – including all SMART Boards and Promethean ActivBoards..

$130.00 RRP (inc GST)
Login for Reseller Pricing

In stock

Quantity
click to enlarge

Icron USB Rover® products operate over standard solid core Cat5e UTP cable (the same wiring used in Ethernet). The Icron USB Rover 1850 uses technology ideal for extending USB peripherals and does not require additional software for either the computer or the target devices.

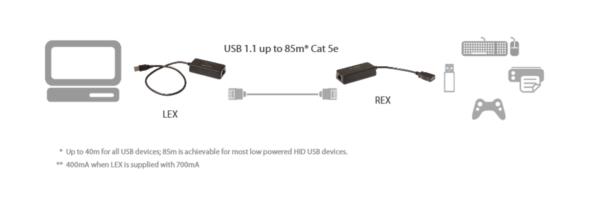

The USB Rover 1850 product is composed of two separate units: the Local Extender (LEX) and the Remote Extender (REX). Conventional USB cables are used to connect the LEX unit to the host computer, and the remote USB device to the REX unit. Cat5e UTP cabling is used to connect the LEX and REX units over a distance of up to 85m (279 ft).

Icron’s USB Rover 1850 extension system is ideal for use with USB peripherals including: keyboards, mice, interactive white boards (including SMART Boards and Promethean ActivBoards), and game controllers.

Features
Plug and play. No software drivers required
Supports all major operating systems: Windows, Mac OS X, Linux
Reliable operation with more USB devices including USB 1.1 web cameras and USB hubs
Works with all SMART Boards and Promethean ActivBoards
Remote extender supplies up to 400mA* to USB devices
Provides support for any full-speed (12 Mbps) or low-speed (1.5 Mbps) USB device
Robust ESD and EFT immunity for industrial environments
Designed and FCC/CE certified in North America

The Icron USB 1.1 Rover® 1850 system includes:

Local Extender (LEX) module
Remote Extender (REX) module
Quick Start Guide.
Three year warranty

Applications

Interactive White Board
KVM Extension: Keyboard and Mouse
Digital Signage
Industrial Control
Corporate Board Rooms: USB Device Extension



Performance
Reach:  Up to 85m (279 feet) using Cat5e Cable

Local Extender

LEX unit USB Connector: 1 x USB Type A Plug
LEX unit – Pig Tail Length: 18″ (45.7cm)
LEX unit Link Connector: 1 x RJ45
Dimensions: 3.34″ x 1.57″ x 0.98″ (85mm x 40mm x 25mm)

Remote Extender

REX unit USB Connector: 1 x USB Type A Receptacle
REX unit – Pig Tail Length: 6″ (15.2cm)
REX unit Link Connector: 1 x RJ45
Maximum current available at REX: 400mA when LEX is supplied with 600mA
Dimensions: 3.34″ x 1.57″ x 0.98″ (85mm x 40mm x 25mm)

Environmental

Operating Temperature: 32°F to 122°F (0°C to 50°C)

Certifications

Emissions: FCC (Class A), CE (Class A)
Immunity: CE Criteria A
Environmental: RoHS2 (CE)
Safety: CPSIA, Flammability V-1

Support

Warranty: 3 years
