Icron i-USB-2850

ICRON USB Rover 2850 - CatX 2 Port USB Extender Pair, 00-00312 2850

The USB Rover® 2850 is a 2-port extender for USB 1.1 connections beyond the desktop up to 40meters Full Speed and Low Speed without the need for external power adapters, ideal for keyboards, mice,  game controllers and interactive whiteboards – including all SMART Boards and Promethean Active Boards or up to 85m for Low-Speed USB..

$150.00 RRP (inc GST)
Login for Reseller Pricing

21 Days from Order

Quantity
click to enlarge

USB Rover products operate over standard solid core Cat 5e UTP cable (the same wiring used in Ethernet). The USB Rover® 2850 uses technology ideal for extending USB peripherals without the need for additional software for either the computer or the target devices.

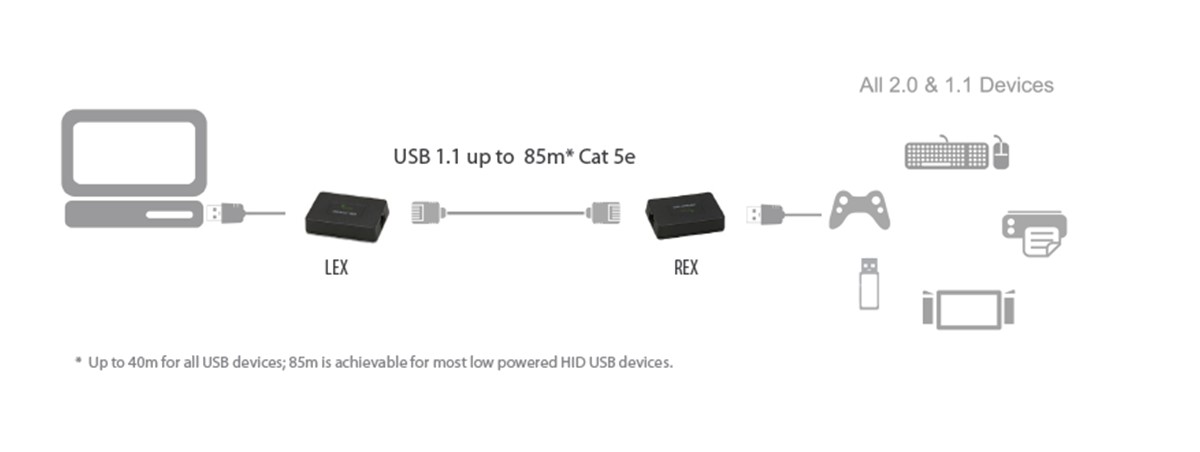

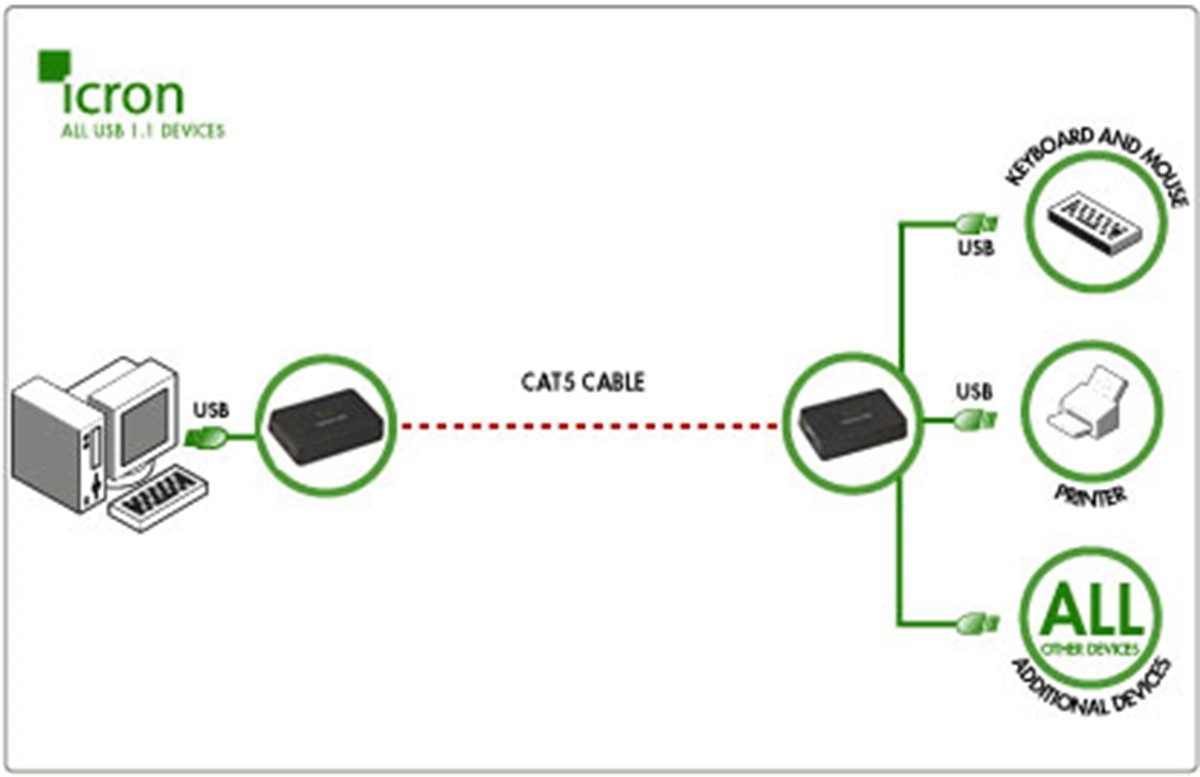

The USB Rover 2850 product is composed of two separate units: the Local Extender (LEX) and the Remote Extender (REX). Conventional USB cables are used to connect the LEX unit to the host computer, and the remote USB device to the REX unit. Cat 5e UTP cabling is used to connect the LEX and REX units over a distance of up to 85m (279 ft).

Icron’s USB Rover 2850 extension system is a 2-port extender, ideal for use with USB peripherals such as keyboards, mice, interactive white boards (including SMART Boards and Promethean ActivBoards), and game controllers without the need for external power adapters.


Features

Plug and play. No software drivers required
Supports all major operating systems: Windows®, Mac OS X®, and Linux®
Reliable operation with all USB 1.1 and 2.0 devices including hubs
Works with all SMART Boards and Promethean ActivBoards
Supports both Full-Speed (12 Mbps) and Low-Speed (1.5 Mbps) throughputs
Supplies up to 400mA* to USB devices
Industrial rated ESD/EFT immunity
FCC/CE Class B emissions

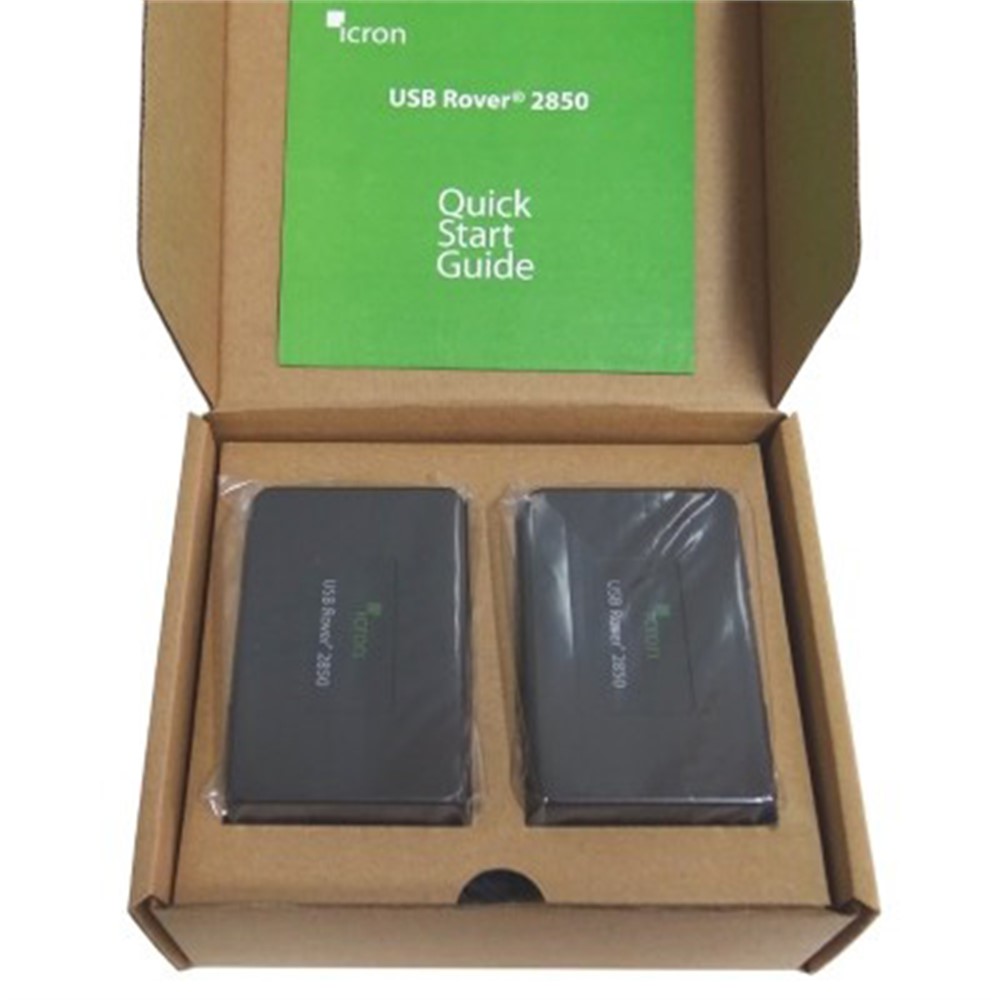

The USB 1.1 Rover® 2850 system includes:

Local Extender (LEX) module
Remote Extender (REX) module
Quick Start Guide
Three-year warranty

Applications

Interactive White Board
KVM Extension: Keyboard and Mouse
Digital Signage
Industrial Control
Corporate Board Rooms: USB Device Extension

Range

Full-Speed and Low-Speed:Up to 40m
Low-Speed: Up to 85m (279 ft)*

Local Extender

USB Connector: 1 x USB Type B Receptacle
Link Connector: 1 x RJ45
Dimensions:85mm x 55mm x 22mm (3.34″ x 2.17″ x 0.87″)
Enclosure: Black ABS

Remote Extender (REX)

USB Connector: 2 x USB Type A Receptacles
Link Connector: 1 x RJ45
Dimensions: 85mm x 55mm x 22mm (3.34″ x 2.17″ x 0.87″)
Enclosure: Black ABS
Maximum Current Available: 400mA shared between USB ports when LEX is supplied with 800mA

Environmental

Operating Temperature: 0°C to 50°C (32°F to 122°F)

Compliance

Emissions: FCC (Class B), CE (Class B)
Immunity: CE Criteria A
Environmental: RoHS
Safety: CPSIA, Flammability V-1

Support

Warranty: 3 years
