M-CIP-DRS

Matrox

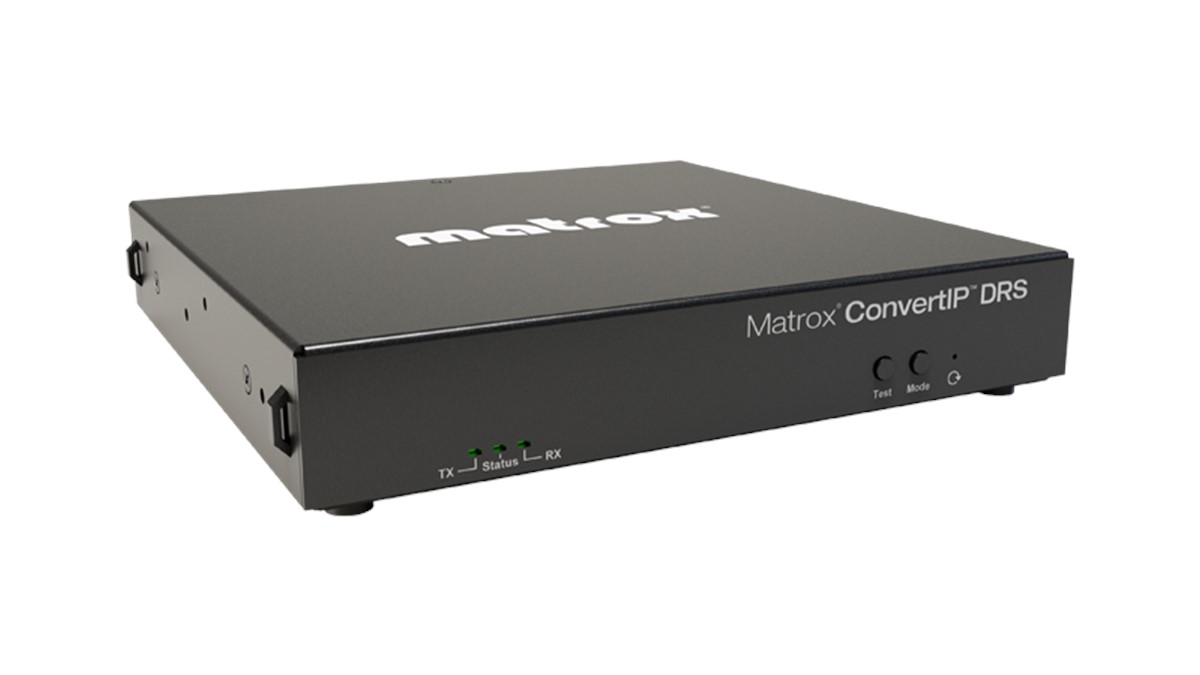

Matrox ConvertIP DRS is a compact, standalone ST2110 & IPMX transmitter/receiver Dual-channel RJ45 SDI-to-IP device.


Matrox ConvertIP DRS is a compact, standalone ST2110 & IPMX transmitter/receiver Dual-channel RJ45 SDI-to-IP device.  Featuring 12G-SDI, genlock, and three RJ45 ports on a singe device, ConvertIP DRS is designed for 1G AV workflows and is optimal for an ultra-low latency experience.

Model: CIP-DRS

  • SDI I/O
  • Multi-network support
  • 3x RJ45 1G network support
  • Fanless design for quiet cooling
  • Power redundancy through PoE+ and locking AC power connector (optional power supply cable sold separately)



SMPTE ST 2110 is a standard from the Society of Motion Picture and Television Engineers (SMPTE) that describes how to send digital video over an IP network.  ST 2110 permits granular transport of individual separate essence streams supporting video, audio, and metadata.

IPMX standard is designed to transport and control of compressed and uncompressed video and audio, including 4Kp60 with 4:4:4 color, over standard 1 Gigabit Ethernet networks.  IPMX (Internet Protocol Media Experience) is a proposed set of open standards and specifications for AV over IP which address the ProAV industry’s need for a common set of ubiquitous standards and protocols in the transition to IP infrastructures.

  • Converter Signal Types - Audio & Video
  • Converter Type - Up/Down Converter
  • Rackmountable - Yes
  • ROHS Compliant - Yes
  • Warranty - Yes
  • Warranty (Length/Type): 3 Years
  • Certifications: EU, REACH, CE (EU), FCC (USA), ICES-003 (Canada), KC (Korea), RCM (Aus/NZ)

  • Operating Temperature (Maximum): 45 C
  • Operating Temperature (Minimum): 0 C
    Current Draw: 0.50 Amps
  • AC Voltage (Minimum): 100 Volts
  • AC Voltage (Maximum): 240 Volts
  • Rack Units (Height): 1
  • Active Power: 18 Watt
  • Depth: 181.10 mm
  • Height: 36.07 mm
  • Width: 191.26 mm
  • Product Weight: 0.67 kg
  • Colour: Black
  • Form Factor: Standalone appliance, Rack-mountable: 1U, 1/2 rack (horizontal)
  • Cooling: Fanless
  • Video Input: Tx mode: 12G SDI, Rx Mode: No input
  • Video Input Resolutions: HD and 4K broadcast resolutions
  • Video Outputs: Tx mode: No output, Rx mode: 12G SDI
  • Video Output Resolutions: HD and 4K broadcast resolutions
  • Genlock: Bi-Level and Tri-Level input support
  • VANC ancillary data processing: Yes
  • Audio Input/Output: Up to 16 channels of audio embedded in SDI output signal, Unbalanced analog stereo input via 1/8“ (3.5mm) jack, Line Level
  • Network Connector: 3x RJ45 (LAN 1 for Media and Control with PoE, LAN 2 for Media and Control (redundant), Control LAN for Control data)
  • RS-232: Yes
  • Control and management: Web browser-based UI, standalone utility
  • Maximum Video Resolutions: 4096 x 2160 60p
  • Color Space: YUV 4:2:0 10-bit1 and 8-bit2, YUV 4:2:2 10-bit3, RBG 4:4:4 8-bit, SDR/HDR4
  • Video Scaling: High Quality multi-tap 10-bit Up/Down Scaler
  • Video Deinterlacing: Yes
  • Color Space Conversion: Yes
  • Video: ProAV 4:4:4 8-bit codec; HD 200 Mbps, 4K 800 Mbps, Optional: JPEG-XS 4:2:2 10-bit; HD 400 Mbps, 4K 1.6 Gbps
  • Audio: Uncompressed PCM (~1 Mbps/ch)
  • Latency: Less than a 1/4 frame (<4 ms)
  • HDCP Support: Yes
  • Network Standard: RJ45 providing 1 GbE or 2.5 GbE Base-T Ethernet
  • IP addressing: IPv4, IPv66, DHCP (default) and static IP
  • Supported Protocols: SMPTE ST 2110 (-10, -20, -21, -30, -31, and -40), SMPTE ST 2059-2, SMPTE ST 2022-7
  • Redundancy: Yes (ST 2022-7)
  • Command and Control: HTTPS over TCP
  • Discovery, Registration and Control: NMOS discovery and control according to standards IS-04 v1.3 and IS-05 v1.1
  • PoE+: Yes (IEEE 802.3at Type 2)



Hardware included: ConvertIP DRS appliance
Optional Hardware: ConductIP NMOS-based routing solution (Part #: CDCTIP-SERV)


Accessories (sold separately):

  • ConvertIP power supply unit (Part #: EPS40WKIT-NA, EPS40WKIT-EU, EPS40WKIT-UK, EPS40WKIT-AU, EPS40W-10PK8 ),
  • Rackmount kit (Part #: RMK-19TR-A),
  • Angled bracket kit (Part #: RMK-6BRKT-A),
  •   Secure cable solution for HDMI (Part #: SK-SLND-4),
  •   NRG redundant power supply unit (Part #: NRG-5-1DB or NRG-5-2DB)

Software: Matrox ConvertIP Command Center (Web UI), Matrox ConvertIP Manager (Microsoft® Windows® 10)

  • Optional Software: JPEG-XS codec license

Operating Conditions:

  • Altitude: 650 hPa (3,580 m) to 1,013 hPa (0 m),
  • Humidity: 20% to 80% non-condensing

Storage conditions:

  • Temperature: -40 to 70 degrees Celsius,
  • Altitude: 192 hPa (12,000 m) to 1,020 hPa (-50 m),
  •   Humidity: 5% to 95% non-condensing
