IDock B10

OEM

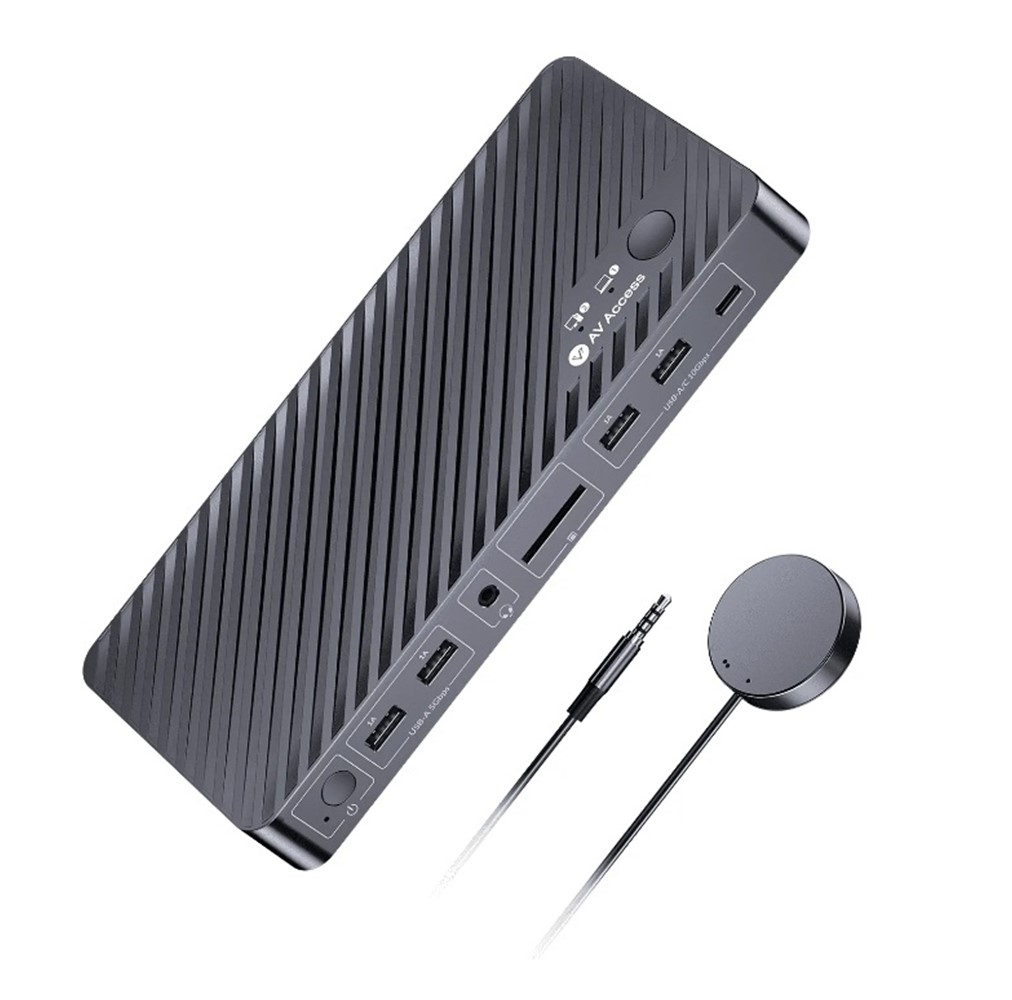

iDock B10 USB-C KVM Switch Docking Station for 1 Laptop & 1 Desktop, 8K@60Hz Dual Monitors, 100W Charging, High-Speed USB 3.2, 1G Ethernet


iDock B10 USB-C KVM Switch Docking Station for 1 Laptop & 1 Desktop, 8K@60Hz Dual Monitors, 100W Charging, High-Speed USB 3.2, 1G Ethernet



?1 Laptop + 1 Desktop Switching: Connect 1 laptop and 1 desktop, and switch between them with ease using one button.
? Dual Monitor Outputs: Support dual displays for both sources — perfect for multitasking (MacOS doesn’t support extended dual screens).
? Dual 8K@60Hz Outputs: Support two 8K@60Hz monitors simultaneously for ultra-crisp visuals and ultimate productivity.
? High Refresh Rates for Gaming: Up to 4K@165Hz on desktops or 4K@120Hz on laptops, both supporting 1440P@165Hz and 1080P@240Hz.

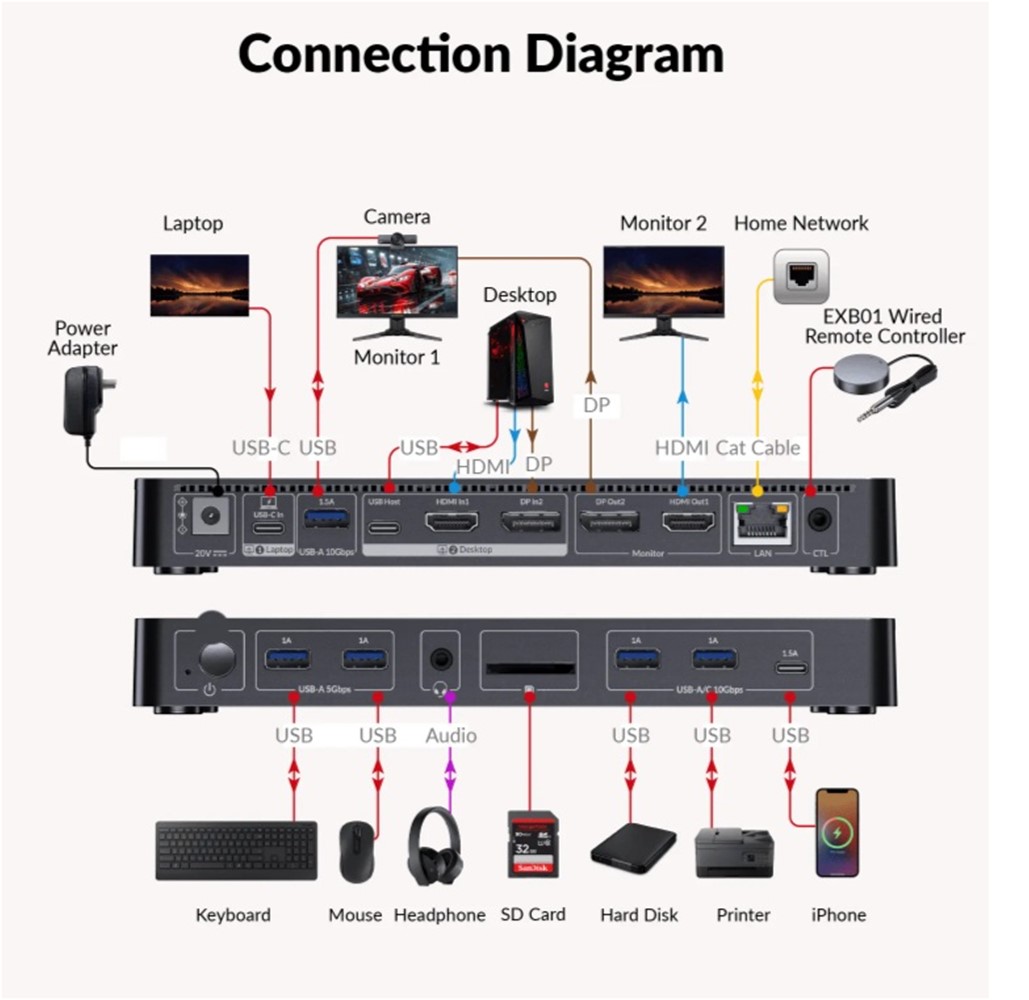

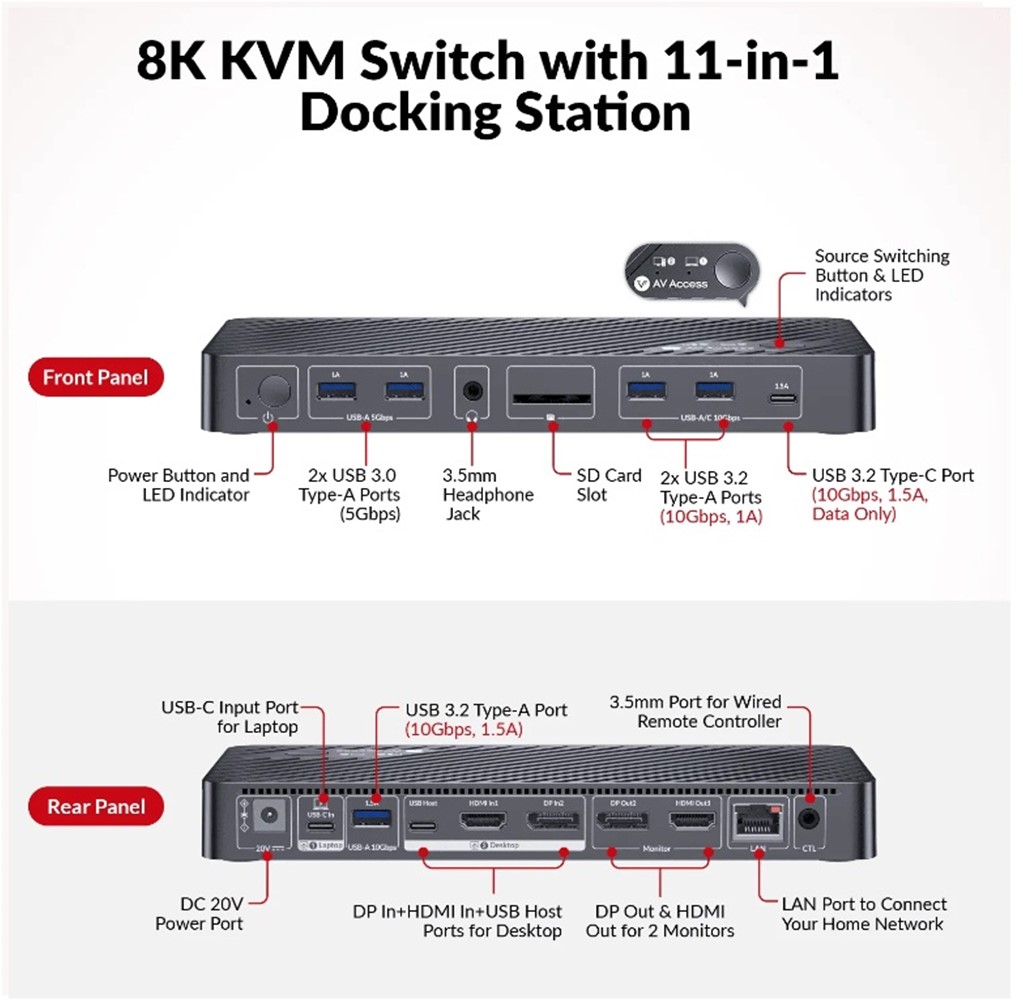

? 11-in-1 Docking Station: Expand your setup with HDMI, DP, USB-C/A, LAN, SDXC card reader, audio jack and more.
? Full Speed 100W Charging: One USB-C cable does it all — dual 4K video, blazing-fast data, wired internet, and up to 100W laptop charging.
? Stable Internet Connection for Both PCs: Enjoy fast, stable network access for both your desktop and laptop.
? Easy Switching Methods: Toggle sources via top panel button or EXB01 remote controller (Included in the package).



* Important Notes:
? MacOS devices do not support extended dual screens.
? EDID emulation is not supported.
? The maximum resolution for the laptop (via USB-C In) will be at 4K@60hz for a dual monitor setup, and at 4K@120hz for a single monitor setup.





1 x KVM Dock Switcher
1 x Power Adapter (DC 20V/6A)
1 x HDMI 2.1 Cable (L = 1.5m)
1 x DP 1.4a Cable (L = 1.5m)
1 x USB 3.2 Gen 2 Type-C to Type-C Cable (L = 1m)
1 x USB Type-A to USB Type-C Cable (L = 1.8m)
1 x Wired Remote Controller (EXB01)
1 x User Manual



Technical
Input · USB-C In: 100W Charging; USB 3.2 Gen 2 (up to 10Gbps); 8K@30Hz or 4K@120Hz video signal transfer

· HDMI In: HDMI 2.1, up to 8K@60Hz or 4K@165Hz

· DP In: DP 2.0, up to 8K@60Hz or 4K@165Hz

Note: DP input supports UHBR 13.5 (13.5 Gbit/s per lane) standard in DP 2.0.

Output · HDMI: HDMI 2.1, up to 8K@60Hz or 4K@165Hz

· DP: DP 2.0, up to 8K@60Hz or 4K@165Hz

Note: DP output supports UHBR 13.5 (13.5 Gbit/s per lane) standard in DP 2.0.

Peripheral and Expansion USB-C x1: Up to 10Gbps, 1.5A power output.

USB-A x5:

· Two USB 3.2 type-A ports on front panel, supports 1A power output, and 10Gbps data transfer;

· Two USB 3.2 type-A ports, supports 1A power output, and 5Gbps data transfer;

· One USB 3.2 type-A port on rear panel, supports 1.5A power output, 10Gbps data transfer;

SDXC card: Up to 104MB/s, maximum support 2TB.

LAN: RJ-45 connector, supports for 1Gb Ethernet performance.

Input/Output Resolution Supported SMPTE:

1280x720P1,2,3,4,5,6,7,8,1920x1080I6,8, 1920x1080P1,2,3,4,5,6,7,8,9,10,11,12,

3840×21602,3,5,6,8,9,10,11, 4096×21602,3,5,6,8,9,10,11, 5120×28802,3,5,6,8,9,

7680×43202,3,5,6,8

VESA:

2048×15368,10,11,12, 2560×14408,10,11,12, 2560×16008,10,11,12, 3440×14408,10,11,12, 3840×14408,10,11,12, 4K8,10,11,12, 5120×28808,9,10, 8K8

1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = 100Hz, 10 =120Hz, 11 = 144Hz, 12 = 165Hz, 13 = 240Hz

Audio Format Supported HDMI/DP Out: Fully supports audio formats in DP 1.4/HDMI 2.1 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X

USB-C In: Fully supports multiple channel audio formats, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X

Headset: Stereo

General
Operating Temperature 0°C to + 45°C (32 to + 113 °F)
Storage Temperature -20 to +70°C (-4 to + 158 °F)
Humidity 20% to 90%, non-condensing
Power Consumption 120W (Max)
Device Dimensions

(W x H x D)

220mm x 25.2mm x 100mm / 8.66” x 0.99” x 3.94”
Product Weight 0.33kg/0.73lb
