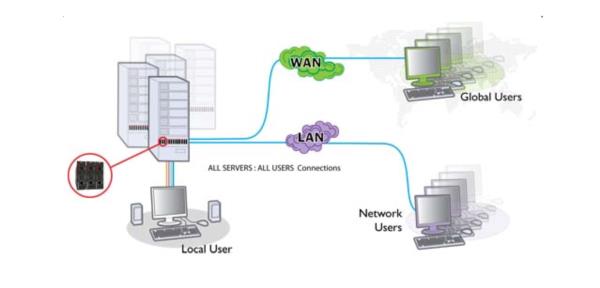

A powerful and flexible KVM-over-IP product contained with in a palm sized unit, the ADDERLink ipeps enables computer access from anywhere in the world, securely and remotely via the Internet or corporate network. The ADDERLink ipeps uses Real VNC client software that is specifically designed for secure, high performance KVM-over-IP applications.
Despite its small size, there is no compromise in the performance of the ADDERLink ipeps. By using Adventiq Inside® on-chip KVM-over-IP technology, an extremely high performance solution can be contained in a compact unit.
Interface powered, optional external PSU available
Independent operation gives full control even during boot up, BIOS level or computer crash states
USB or PS/2 keyboard and mouse connections
Virtual media support (via USB)
High performance video
Enterprise grade security (using AES 128 bit encryption and RSA 2048 bit public key authentication) further enhanced by the use of Real VNC that allows for the creation of ciphered user communications.
16 user profiles and access data logging
Up to 16 units can be rack mounted in 2U of rack space
Supports exclusive access mode or up to four simultaneous connections
ipeps DA model has feed through port that provides local KVM console access
Auto sensing 10/100 Mb Ethernet port
Supports standard PC, Sun and Mac video modes up to resolutions of 1600 x 1200 with scalable viewer.
Supports PC, RS/6000, Alpha and SGI computers, Sun and Mac. USB or PS/2 connections supported
All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc
ADDERLink ipeps to KVM/computer connection
Video: HDD15, Keyboard/Mouse: MiniDIN6 1m 3-in-1 cable supplied (USB converters also included)
Local console (DA model only)
Video: HDD15, Keyboard/Mouse: MiniDIN6
Ethernet: RJ45 10/100 autosensing
Compact case, robust metal construction.
ipeps 120mm/4.72 (w), 27mm/1.06 (h), 75mm/2.95 (d), 0.34kg/0.76lbs.
ipeps DA 120mm/4.72 (w), 42mm/1.65 (h), 75mm/2.95 (d), 0.46kg/1.02lbs.
16 or 8 (DA) per 2U. Rack mount kits available (X-RMK-Chassis ), Fascia Plates available MET-IPEPS-DA-FASCIA for AL-IEPS-DA (order separately), MET-IPEPS-FASCIA for AL-IPEPS (included).
Optional power supply
100-240 VAC 50 - 60Hz
0 - 40 deg C / 32 to 104 deg F
MET-IPEPS-DA-FASCIA: Dual Rack Kit
VKVM-1M; VKVM-2M; VKVM-5M; VKVM-10M: KVM cable set (one set per connected computer, supplied with product )
CCSUN-2M; CCSUN-5M; CCSUN-10M: CCSUN Convertor Cable(required to connect Sun computers that use a mini-DIN port to connect their keyboard and mouse)
CAB-XSERIES-4WAYPWR: Squid Power Cable (allows up to four IPEPS units to be powered from a single power adapter)
PSU-IEC-5VDC-2.5A: Power Adapter plus country specific power cable: Standard version power adapter capable of supplying a single IPEPS units directly or up to two IPEPS using the squid power cable
PSU-IEC-5VDC-4AMP: Heavy duty version power adapter capable of supplying up to four IPEPS units using the squid power cable
