Adder ALDV120P-AUS

ADDERLink DVI Digital Video Extender ALDV120P

ADDERLink ALDV120P is a Line powered DVI digital video extender. Allow you to transmit a HD video stream over a single CATx cable.





.

$505.00 RRP (inc GST)
Login for Reseller Pricing

In stock

Quantity
click to enlarge

ADDERLink DV120 is an easy to install, highly compact video extender system that can transmit an HD video stream over a single CATx cable. This allows you to locate your media playback hardware in a secure and temperature controlled environment. Thus, your valuable systems are kept safely away from the display point environment whilst maintaining precisely the same user experience.

ADDERLink DV120 is ideally suited to the Digital Signage (DOOH - Digital Out-Of-Home) and Audio Visual (AV) industries.

Pixel perfect digital video

The ALDV120 uses an uncompressed communication system whereby the pixels of every frame are sent without loss. Resolutions up to 1920 x 1200 @ 60Hz (WUXGA) are supported.

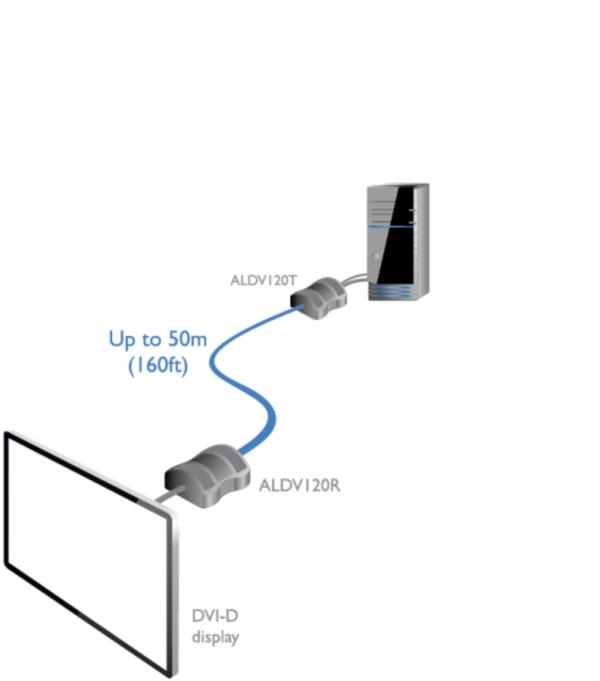

Up to 50 meters over a single CATx cable

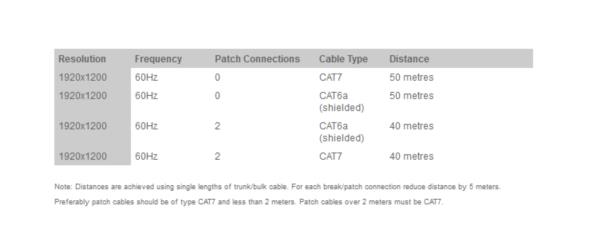

Video and power pass along a single cable, providing a maximum of 50 meters extension. The actual achievable extension distance is dependent upon the CATx cable type used and the number of connection breaks for patch panels and wall plates. Please see the table on reverse for details.

Highly energy efficient - No external power supplies are required

The AdderLink DV120 is designed to be highly power efficient, using less than an eighth of the power required by some competing systems. By harvesting power from a standard USB socket, no external PSUs are needed and hence the support infrastructure required is kept to an absolute minimum.

EDID management

The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.

Plug and Play

The AdderLink DV120 extenders are delivered in a zero config state so you can connect their two units and start working with them immediately. There’s no need for drivers or software to be installed.

Perfect video wall companion

With locking connectors and no power supplies required at the receiver, the ALDV120 makes a perfect companion for video walls where the controller must be located far from the screens.

Built to last

Adder Technology have a well-earned reputation for creating products that perform well and stay the course. The AdderLink DV120 is no exception and features tough, yet lightweight ABS enclosures to ensure they can easily withstand everyday treatment. The internal components and external connectors too are selected for their reliability in addition to their performance characteristics.

Hardware compatibility

All computers with DVI-D and USB connections - requirement dependent

DVI-D interface

The system supports resolutions such as 480p, 720p, 1080P or WUXGA (1920 x 1200) @ 60Hz* and 24 bit color depth

* with reduced blanking

Software compatibility

All known operating systems

Computer connections at transmitter (TX)

DVI-D male, USB type A (for power only)

Display connections at receiver (RX)

DVI-D male

Power

USB powered, 5VDC -2.5W for both RX and TX units combined

Physical design

Injection moulded ABS cases:

45mm / 1.8’’ (w) x 63mm / 2.5’’(d) x 21mm / 0.8’’(h) with 30cm / 12" pigtails, Weight 250g / 0.6 lb per pair

Operating temperature

0 to 40ºC / 32 to 104ºF

Approvals

CE, FCC
