ALIF2122R-AUS

Adder

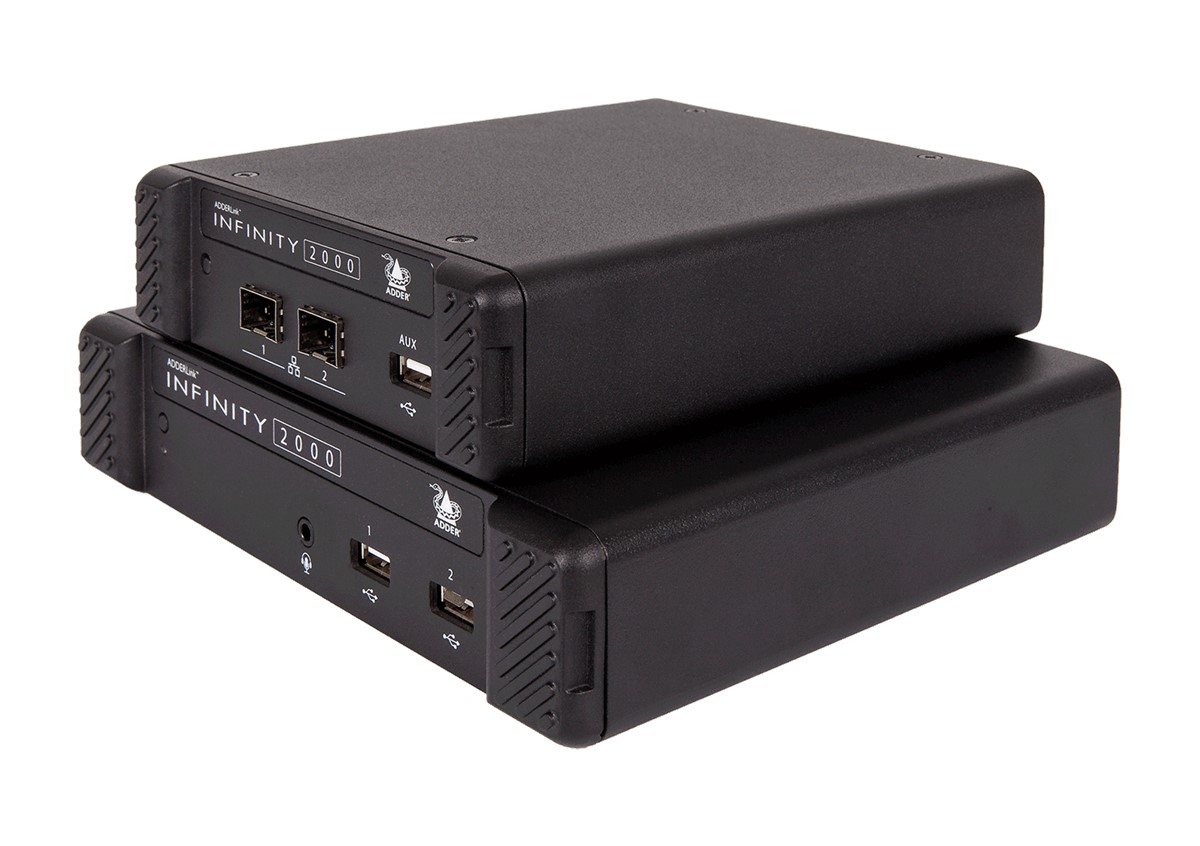

The ADDERLink® INFINITY 2122 Receiver is part of a high performance IP KVM (Keyboard, Video and Mouse) extender that forms part of the ADDERLink® INFINITY matrix solution. 2 SFP sockets     SFP Modules not included purchased seperately


The ADDERLink® INFINITY 2122 Receiver is part of a high performance IP KVM (Keyboard, Video and Mouse) extender that forms part of the ADDERLink® INFINITY matrix solution. 2 SFP sockets.

This enables the relocation of critical computing hardware into a secure and temperature controlled environment away from the user work station; whilst maintaining a pixel-perfect desktop experience.

  • Plug and play
  • Greater extension distances using a standard IP network
  • Up to 500m/1640ft to 20km/12mi over a single length of fiber
  • 2 SFP sockets
  • Video resolutions up to 1x 2560x1600 @60Hz or 2x 1920x1200 @60Hz
  • USB mass storage devices supported plus keyboard, mouse, tablet and touch
  • Support for Mac Pro®
  • Redundant network operation
  • Dual touch screen support including onscreen keyboard and floating launch button



Works with the ALIF2022T



Perfect digital video, real time control
Using a spatially-lossless encoding system, with 1:1 pixel mapping, the ADDERLink INFINITY (ALIF) 2122 provides pixel-perfect and color accurate video with no artifacts. The digital video received is the same as the digital video leaving the remote computer.

Single CATx cable or fiber with immunity from interference
Using standard IP technology allows a choice of single structured cable (CATx) or fiber connection achieving reliable links without interference.

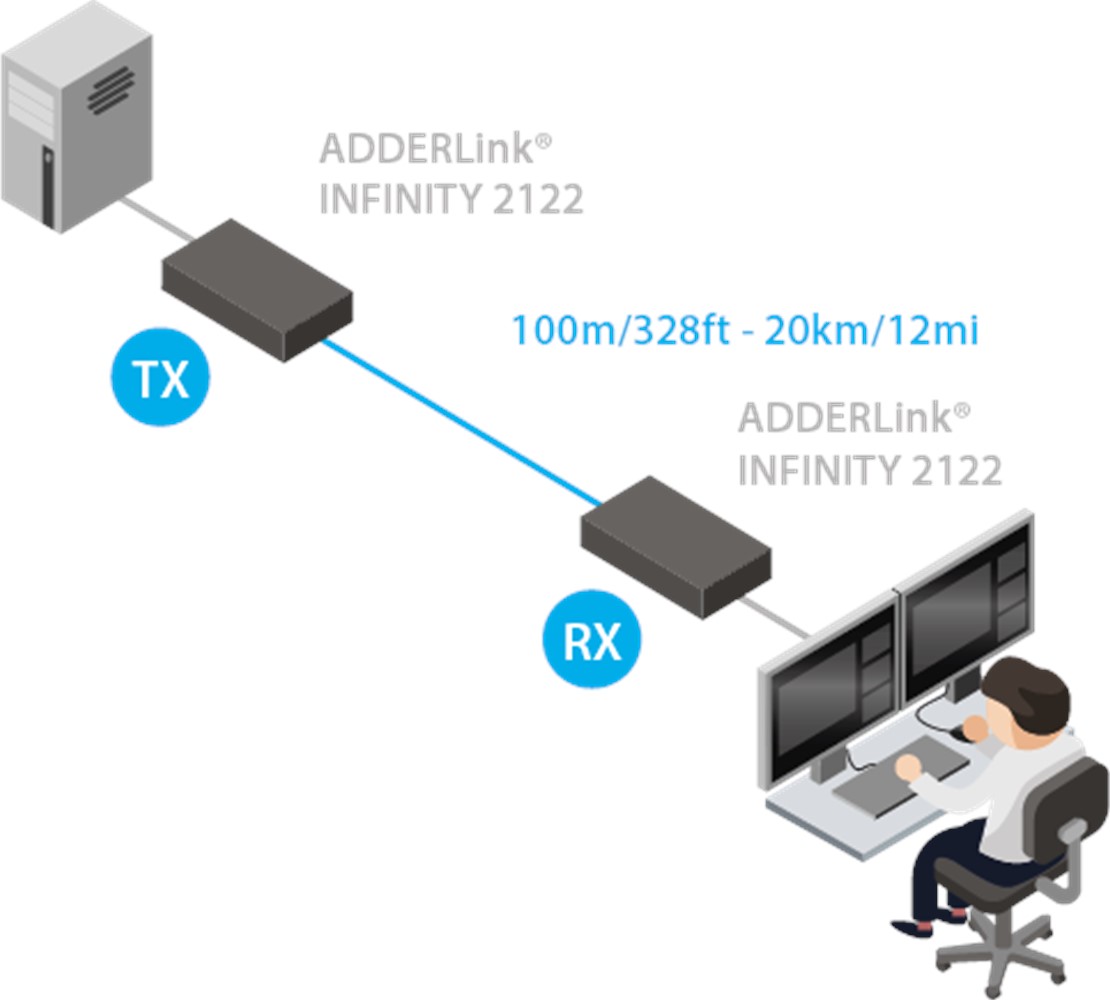

Extension distances
Extension distance is not limited to a single 100m/328ft cable length - it can be extended further by adding a 1GbE network device to achieve an additional 100m/328ft. The units are fitted with SFP cages to accept fiber optic transceivers which enable much greater extension distances of up to 20km/12mi.

Support for Mac Pro® (Dithered Video)
Some graphics cards use a technique called dithering to give the appearance of a deeper color depth than is actually the case. Dithering can significantly increase the normal video data rates. The ALIF2122 TX has a feature called Magic Eye which supports dithering without allowing it to degrade overall link performance.

USB2.0 with class control
Enables connection of USB devices such as mouse and keyboard, graphics tablets, jog shuttles, joysticks, and 3D explorers, alongside mass storage devices. For applications where security is of high importance, the system has the ability to disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.

EDID management
Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without additional configuration.

Plug and Play
All ALIF extender devices are delivered in a zero config state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.

Redundant network operation
The units support network teaming allowing for full network redundancy and increased resilience for mission critical applications.

ADDERLink INFINITY Matrix
With the addition of the ADDERLink INFINITY Management System (AIM), multiple point-to-point extenders can be turned into a truly scalable digital KVM matrix system, that allows any workstation to link with any computer connected to the network.





Operating Systems and Software Compatibility
Software: All commonly known software and operating systems including Windows®, Linux®, macOS®, and Sun OS. Hardware: RS232 is supported via USB to RS232 accessory

Video resolutions
The system supports up to 1x 2560x1600 @60Hz or 2x 1920x1200 @60Hz

USB2.0 with class control
Supports USB2.0 devices (low, full and high speed). Security feature allows the blocking of non-HID devices. Isochronous devices are not supported (e.g. USB audio or video devices)

Audio
USB audio 2 channel 16bit @48KHz (Bi-directional)

Serial Comms
RS232 or other serial standards can be passed between the units to a maximum baud rate of 115,200 by using serial to USB converters

Computer connections transmitter (TX)
2x DisplayPort™ connections, 1x 3.5mm socket for Audio in, 1x USB Type B, 1x USB Type A for auxiliary connections and 2x SFP for 1GbE network connections

Peripheral connections receiver (RX)

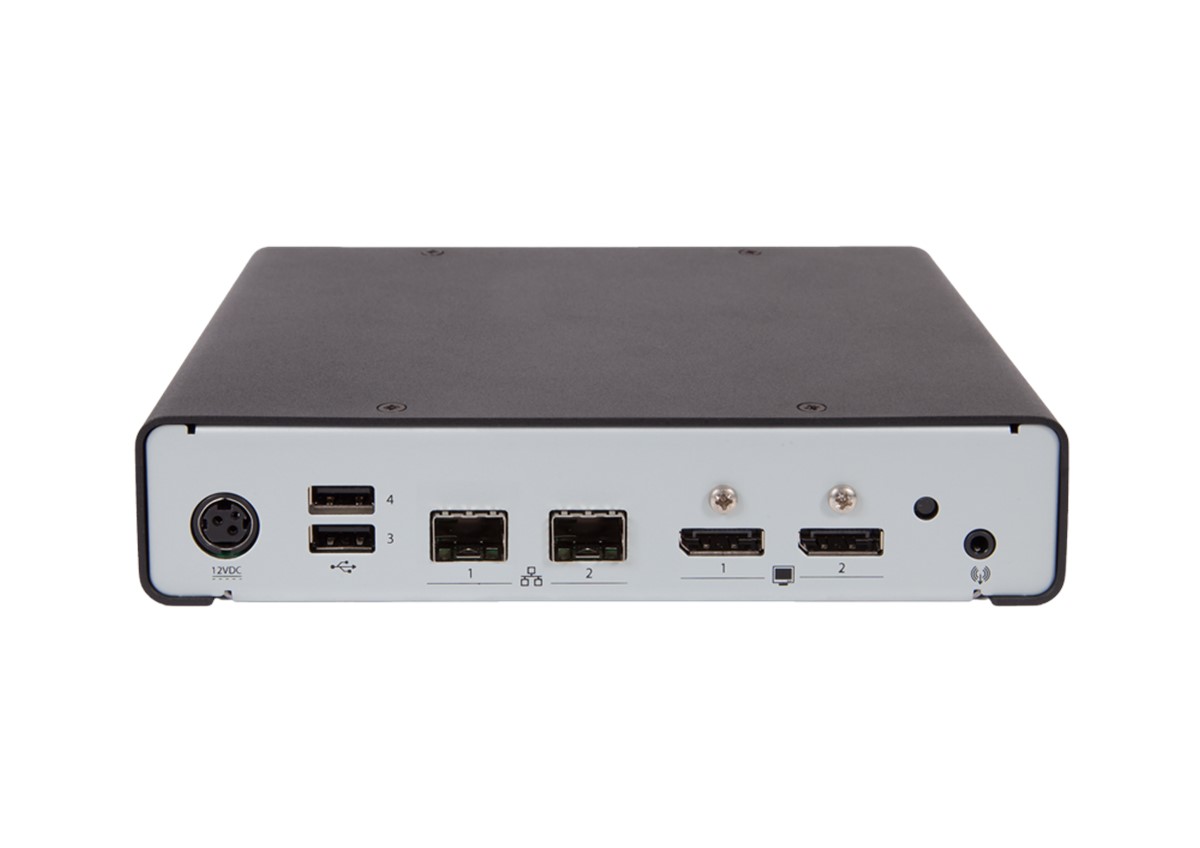

2x DisplayPort™ connections, 1x 3.5mm socket for Audio out, 1x 3.5mm socket for headset/microphone, 4x USB Type A and 2x SFP for 1GbE network connections

Physical design
Receiver (RX)
1U compact case, robust metal construction
Dimensions: 39mm/1.5”(H) x 186mm/7.3”(W) x 150mm/5.9”(D)
Weight: 1.1kg/ 2.4Ibs

Transmitter (TX)
1U compact case, robust metal construction
Dimensions: 39mm/1.5”(H) x 136mm/5.3(W) x 150mm/5.9”(D)
Weight: 0.8kg/1.7Ibs

Approvals
CE, UKCA, FCC, ICES, cULus

Power
External power supply
Input: 100-240V AC 47/63Hz
Output: 12V 1.5A (18W)
Typical power consumption: 7W

Operating temperature
Operating temperature: 0 to 40°C/32 to 104°F
Storage temperature: 0 to 40°C/32 to 104°F
Storage and operating relative humidity: 10-90% non-condensing
Altitude: < 2000m

Mean Time Between Failure
ALIF2122T 461,000 hrs
ALIF2122R 345,000 hrs
Calculated according to Telcordia SR332 Issue 4 @55°C
