ALIF2124T-AUS

Adder

ADDERLink INFINITY 2124 is a high performance IP KVM (Keyboard, Video and Mouse) extender that forms part of the ALIF matrix solution.


The ADDERLink INFINITY 2124 is a high performance IP KVM (Keyboard, Video and Mouse) extender that forms part of the ALIF matrix solution. This enables the relocation of critical computing hardware into a secure and temperature controlled environment away from the user work station; whilst maintaining a pixel-perfect desktop experience.



  • HDMI® connectivity
  • 2 x SFP ports for maximum flexibility. Can be used with either CATx or fiber modules, allowing distances of up to 20km
  • Video resolutions up to 1x 2560x1600 @60Hz or 2x 1920x1200 @60Hz
  • USB mass storage devices supported plus keyboard, mouse, tablet and touch
  • Plug and play
  • Redundant network operation



Perfect Digital Video, Real Time Control
Using a spatially-lossless encoding system, with 1:1 pixel mapping, the ADDERLink INFINITY 2124T (ALIF2124) provides pixel-perfect and color accurate video with no artifacts. The digital video received is the same as the digital video leaving the remote computer.

Standard IP Technology
Using standard IP technology allows a choice of single or dual structured cable (CATx) or fiber connections achieving reliable links without interference combined with the resilience of two network port which provide teaming facility for load balanced systems.

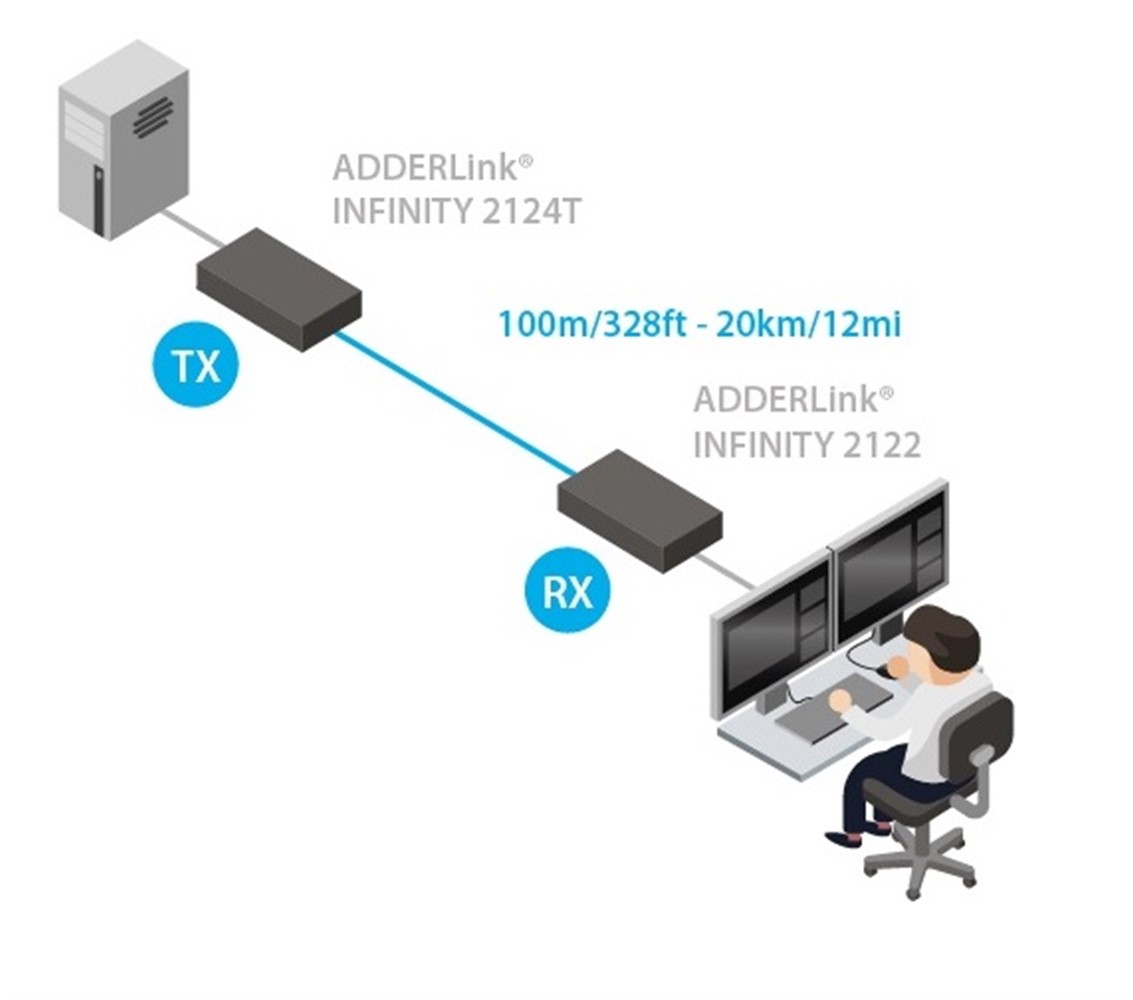

Unlimited Extension Distances
Extension distance is not limited to a single 100 meter cable length. If you need to extend further, simply add a 1GbE network device to achieve an additional 100 meters, which can be repeated many times. Also fitted with SFP cages to accept fiber optic transceivers for much greater distances.

USB 2.0 with Class Control
Supports USB devices including graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. For secure applications, the system can disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.

Flexible and Scalable Extender or Switch
Each ALIF21XX series unit can be configured as a simple extender or self managed distributed KVM switch. Each receiver can see up to 16 sources and rapidly switch between them.

ADDERLink® INFINITY Matrix
With the addition of ADDERLink® INFINITY Management system (AIM) you can turn multiple point-to-point extenders into a truly scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.

EDID Management
Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without additional configuration.

Plug and Play
ADDERLink® INFINITY devices are delivered in a zero config state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.

Redundant Network Operation
The units support network teaming allowing for full network redundancy and increased resilience for mission critical applications.

Digital Audio
The ALIF21XX series supports digital audio input via USB and the digital video connector.

Operating Systems and Compatibility
All known operating systems. Does not support HDCP or CEC control.

Video resolutions
The system supports up to 1x 2560x1600 @60Hz or 2x 1920x1200 @60Hz

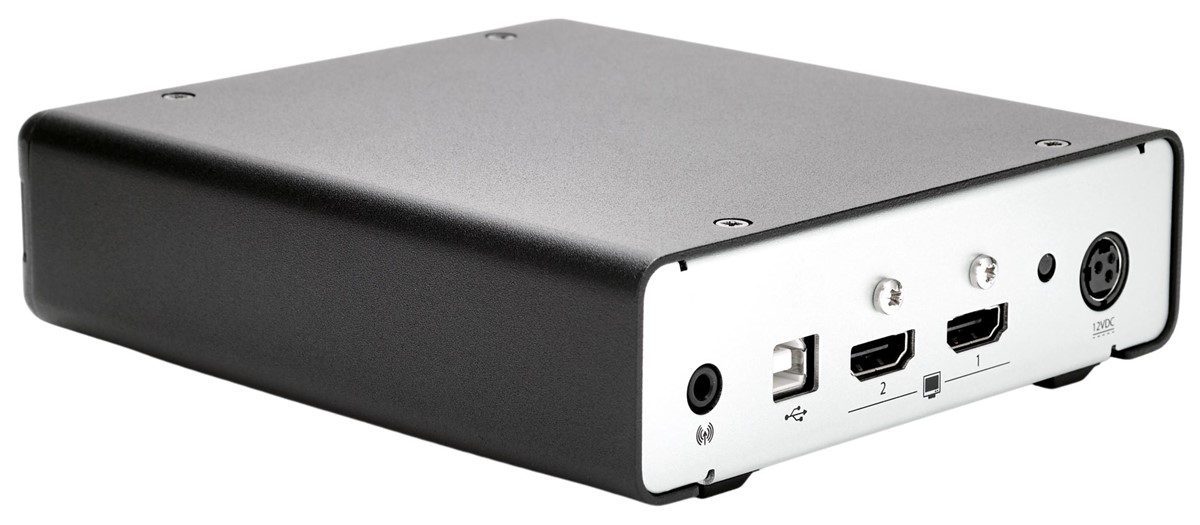

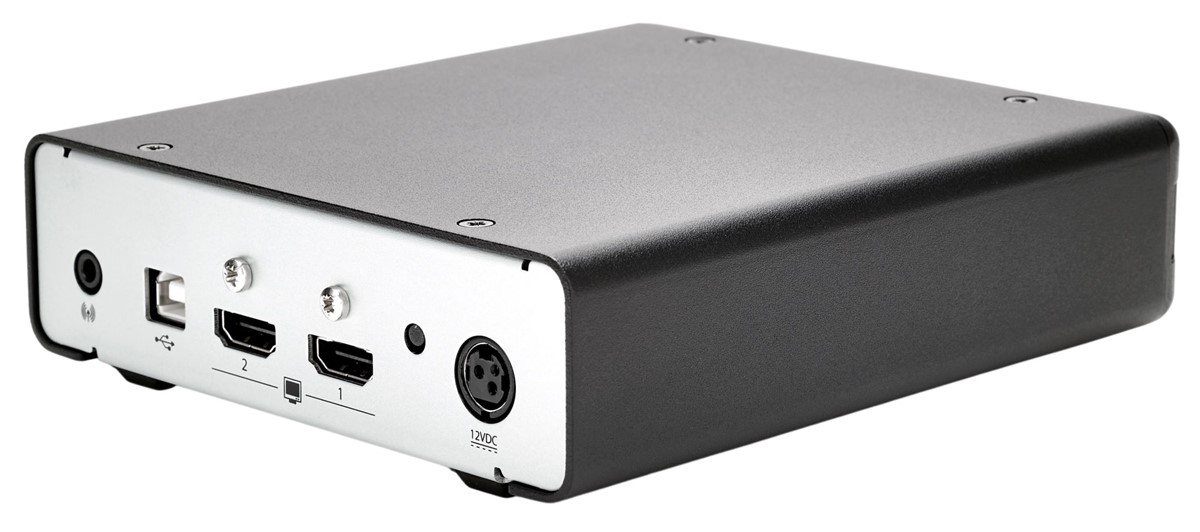

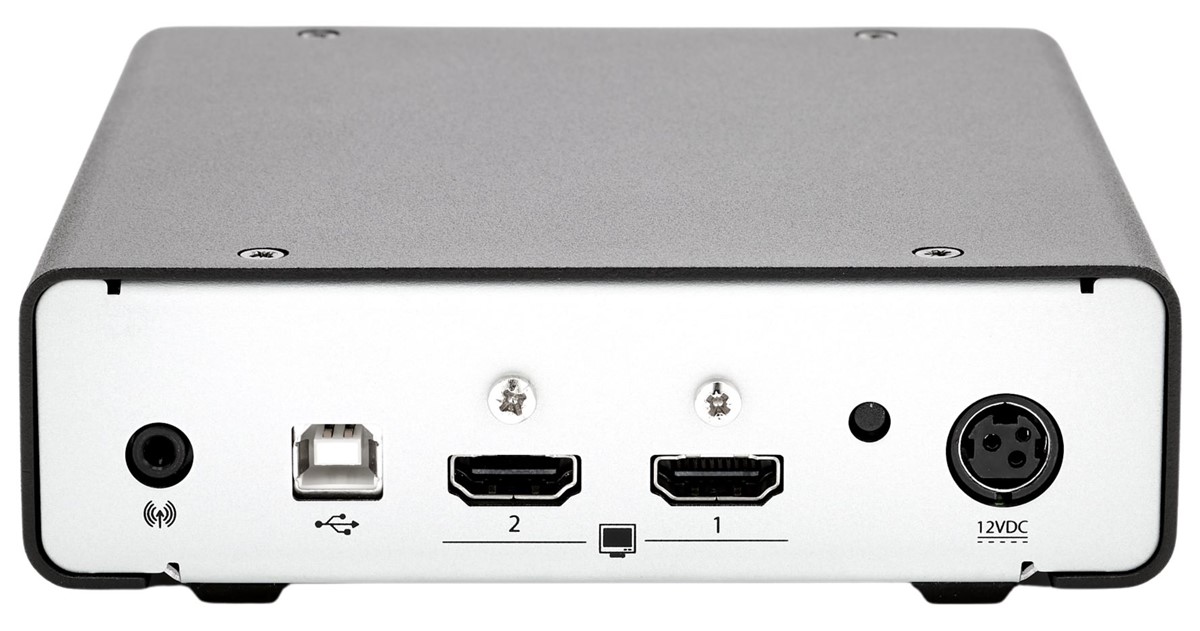

Computer Connections
1 x USB B 2.0 (True Emulation, High Speed)
1 x USB A 2.0 (True Emulation) (Auxiliary connection)
2 x HDMI®

Audio
Audio in Port: 1 x USB
Audio Type: Analog/Digital
Channels: 2
Audio Direction: Bi-directional
Audio Additional Information: Analog audio and audio via video connector is uni-directional
Size (bit): 16
Speed (kHz): 48

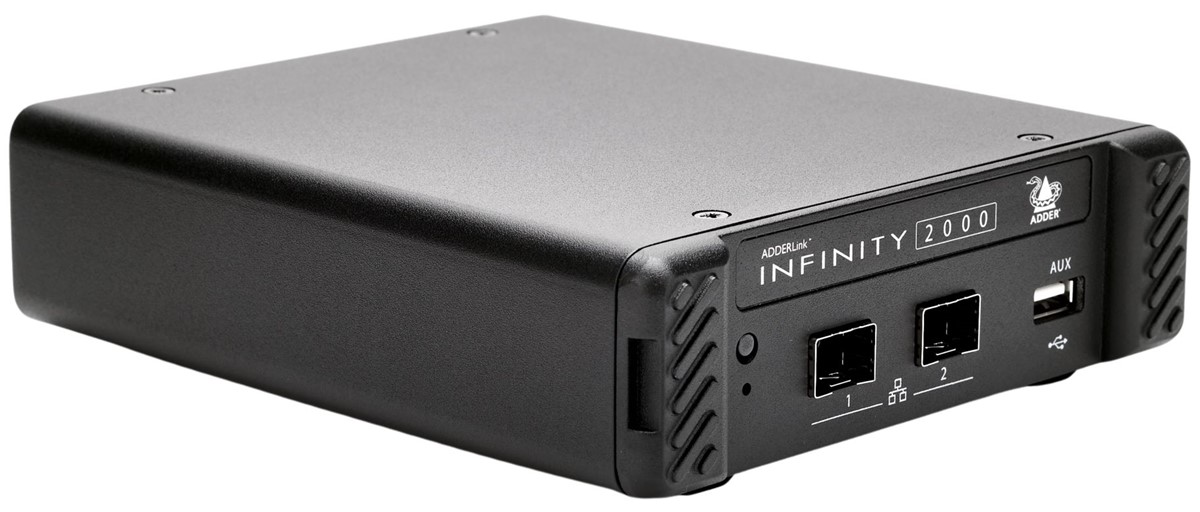

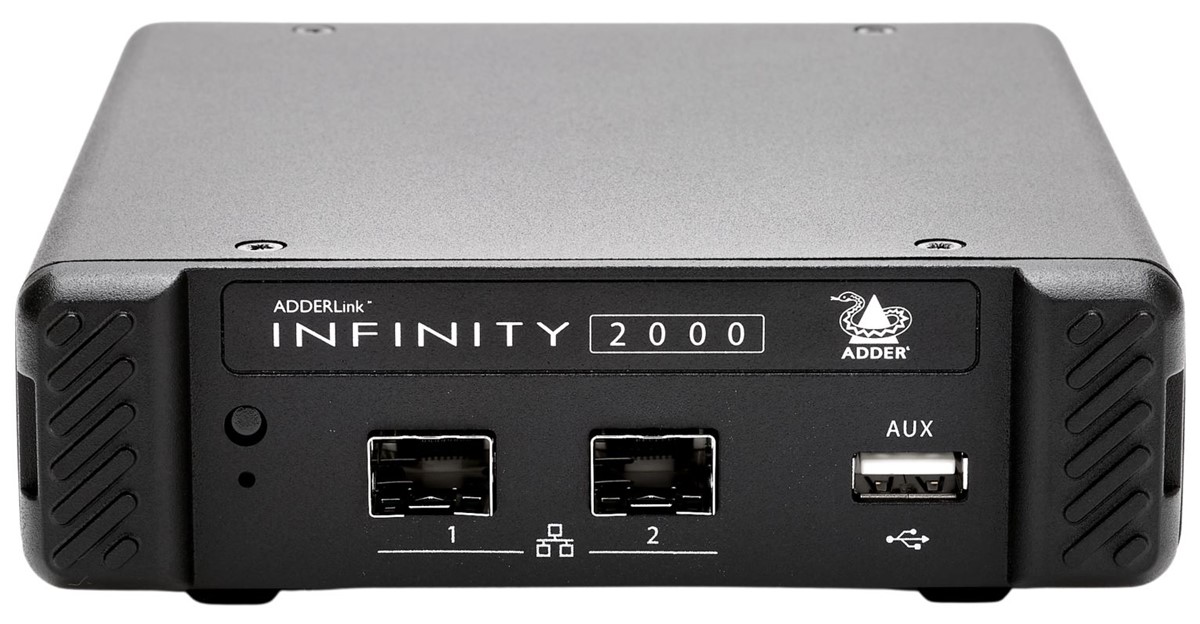

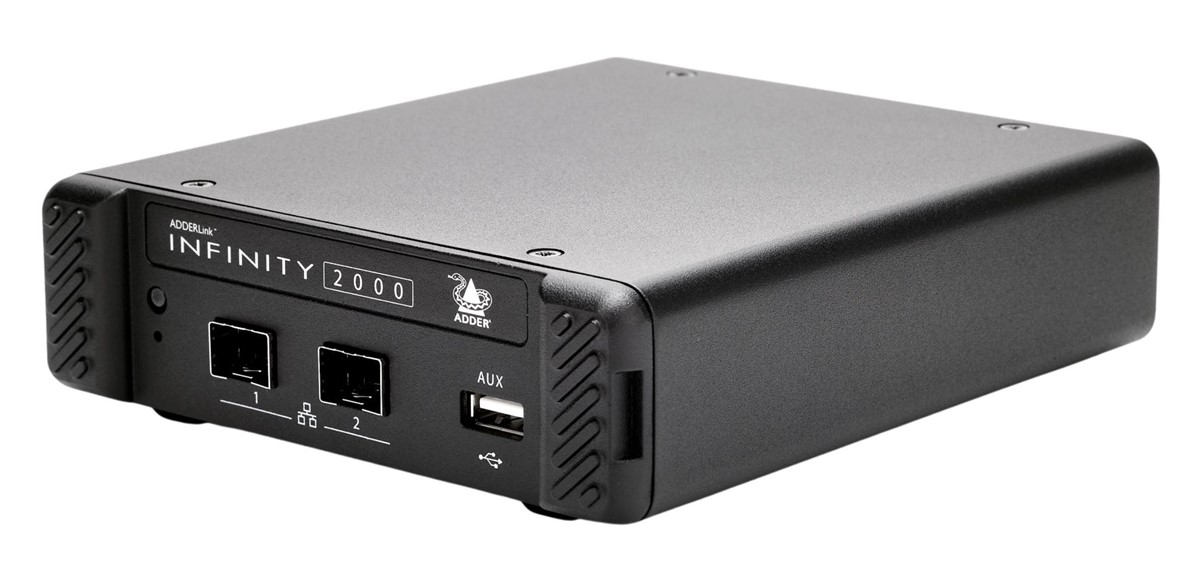

Link Ports
2 x SFP

Serial Comms
RS232 or other serial standards can be passed between the units to a maximum baud rate of 115,200 by using serial to USB converters.

Network Support
Bandwidth: 1GbE

Physical design
1U compact case, robust metal construction
Dimensions: 39mm/1.5”(H) x 136mm/5.3(W) x 150mm/5.9”(D)
Weight: 0.8kg/1.76lb

Approvals
CE, cULus - E476334, FCC, ICES, UKCA

Standards
ANSI 63.4, EN/IEC 62368-1, EN55032 /CISPR 32, EN55035/CISPR 35, EN63000, FCC pt15B, ICES003

Other
Cal Prop 65, EU REACH, UK REACH

Power
Power type: 1 x 12V 3-pin Kycon
Maximum power (Watts): 18
Typical power (Watts): 7

Environmental
Operating temperature: 0 - 40°C/32-104°F
Storage temperature: 0 - 40°C/32-104°F
Storage and operating relative humidity: 10% - 90% (non-condensing)

Mean Time Between Failure
Mean Time Between Failure (MTBF) @ 55degC: 461,000 h
Temperature Regulation: Fanless

No videos available For this product


Your Price $3,260.00 (inc GST)
Availability :
Login for Reseller Pricing


Write a Review

Please ensure you are logged in to write a review.
ADDERLink® INFINITY 2124T Dual head HDMI video, audio, and USB2.0 over a 1GbE IP network - New HDMI Transmitter (SFP Modules Not included) ADDERLink® INFINITY 2124T Dual head HDMI video, audio, and USB2.0 over a 1GbE IP network - New HDMI Transmitter (SFP Modules Not included)
$3,260.00 In stock
