AV4PRO-DVI-AUS

Adder

ADDERView 4 PRO DVI is a professional grade KVMA switch delivering ultimate flexibility for users who wish to share a high resolution screen and modern USB peripherals between a multiplicity of computers. The AV4PRO-DVI is designed to enable four computers to be controlled from a single high resolution KVM console using either dual link DVI or high definition analogue video links. The switch makes use of Adder's True Emulation technology which enables USB HID devices to be continuously emulated to each computer. This unique technology enables instantaneous and reliable hotkey switching whilst also supporting the extra keys and features of enhanced keyboards and mice.


Professional DVI, USB 4 port switch with USB True Emulation Technology The ADDERView Pro is a professional grade KVMA switch delivering ultimate flexibility for users who wish to share a high resolution screen and modern USB peripherals between a multiplicity of computers. The AV4PRO-DVI is designed to enable four computers to be controlled from a single high resolution KVM console using either dual link DVI or high definition analogue video links. The switch makes use of Adder's True Emulation technology which enables USB HID devices to be continuously emulated to each computer. This unique technology enables instantaneous and reliable hotkey switching whilst also supporting the extra keys and features of enhanced keyboards and mice. Furthermore, the ADDERView includes two independently switchable USB 2.0 channels and an audio channel, giving the user the flexibility to attach selected peripherals to different computers.
Dual link DVI-I with extended profile DDC EDID
The ADDERView Pro features full dual link DVI video delivering 4 megapixel resolutions at 60Hz. Because the ADDERView features DVI-I, you can also use a choice of digital or analogue sources. The extended DDC EDID profile ensures that the switched graphics card is always optimised to work with your screen. The dual link DVI capabilities enable users to work at very high resolutions including 2K (2048 x 1080) for film post production or WQXGA (2560 x 1600) for detailed medical imaging.
True Emulation USB2.0 technology

The AV4PRO-DVI belongs the first KVMA range of switches to feature Adder's advanced True USB Emulation technology. Emulated USB provides an instantaneous and reliable switching action and makes keyboard hotkey and mouse switching possible. With the AV4PRO-DVI, a whole new group of users can take advantage of the flexibility KVM switches have to offer. Users in Architecture, Graphic design, Post production, Animation etc. often need to use specialised interface devices such as graphics tablets, 3D explorers, joysticks, and so on.

Independent simultaneous device selection
Flexibility is key to the ADDERView Pro. The switch enables you to use the KVMA console to work on one computer whilst your USB peripherals are connected to other computers and your speakers are playing music from yet another.

Channel selection options
The ADDERView Pro can be switched using selectable keyboard hotkeys, 3 button mice or the front panel controls. Optionally, you can also use the RC4 remote switch to make your selection.

Broad USB 2.0 Hi Speed device support
A vast range of USB devices can be connected to the ADDERView. From non standard human interface devices to printers and scanners. This gives great flexibility. For example, you could be scanning a set of documents onto one computer whilst working on another and printing from yet another, all at the same time.

Options port for control, synchronisation and upgrade An 'Options' port enables the AV4PRO-DVI to be remotely switched using simple ASCII codes. The port enables a 4 button switch unit (RC4) to be used with the ADDERView Pro. The same port can also be used to upgrade the firmware to guarantee that your hardware investment continues to deliver real value well into the future.

Hardware compatibility

All computers with USB interfaces

Software compatibility

Operates with all known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare etc.

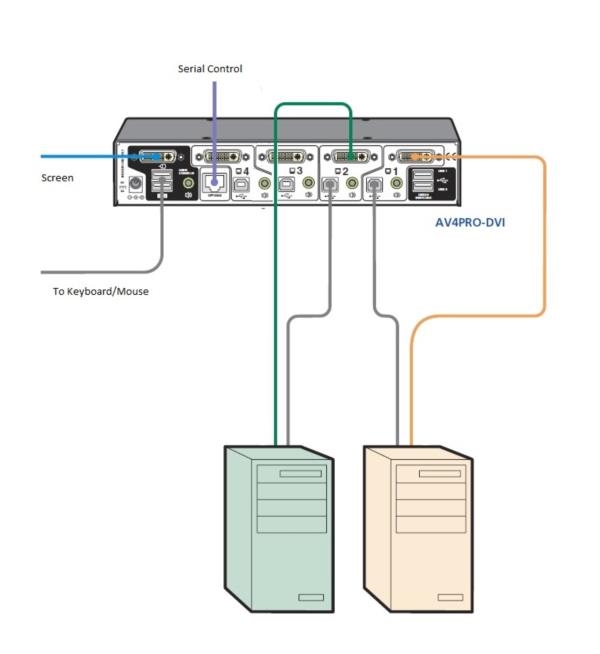

Computer connections at switch: USB2.0 type B, Dual-link DVI-I (up to 4 per connection), 3.5mm stereo jack

Local KVM console connection

Video: Dual-link DVI-I (Dual x 2, Triple x 3 or Quad x 4)
Resolution: All resolutions up to 5MP per head (eg 2560x1920 4.92M3-R).
Keyboard/Mouse: 2 x USB type A
Switched USB: 2 x USB2.0 type A
Switched USB: Supports USB 2.0 devices in low, full and high speed modes.
USB True Emulation: Emulates keyboard and mouse on each port. Low speed HID USB 2.0 devices supported
Audio: 3.5mm stereo jack
Other Connections: Options (flash upgrade, sync with other AV4PRO-DVI-MS and RS232 triggered power switches): Modular 10P10C

Physical design

2.5U high metal case 26cm (w), 15cm (d), 10cm (h)

Power

2.5mm DC jack (power adapter included), 100-240VAC 50/60Hz input to power adapter, 5VDC 2A output from power adapter

Operating temperature

0 - 40 deg C (32 to 104 deg F)

Approvals

CE, FCC

Additional accessories

DVI to VGA adaptor: VSA11
Single link DVI-D to DVI-D video cable: VSCD1
Combined dual link DVI-D and USB (USB type A to B) cable: VSCD3 (2m length); VSCD4 (5m length)
Audio cable 2m (3.5mm stereo jacks): VSC22
Flash upgrade adapter plus standard 3m patch lead: VSC40
Two 19inch rackmount brackets and four screws: RMK5PROMS
RC4 remote control plus standard 3m patch lead: RC4-8P8C
