AV4PRO-VGA-QUAD-AUS

Adder

The AV4PRO-VGA-MS is designed to enable four multihead computers to be controlled from a single high resolution KVM console using high definition analog VGA video links. The switch makes use of Adder's True Emulation technology which enables USB HID devices to be continuously emulated to each computer. This unique technology enables instantaneous and reliable hotkey switching whilst also supporting the extra keys and features of enhanced keyboards and mice.


The ADDERView Pro is a professional grade KVMA switch delivering ultimate flexibility for users who wish to share high resolution screens and modern USB peripherals between a multiplicity of computers.

The AV4PRO-VGA-MS is designed to enable four multihead computers to be controlled from a single high resolution KVM console using high definition analogue VGA video links. The switch makes use of Adder's True Emulation technology which enables USB HID devices to be continuously emulated to each computer.

This unique technology enables instantaneous and reliable hotkey switching whilst also supporting the extra keys and features of enhanced keyboards and mice.

Furthermore, the ADDERView includes two independently switchable USB 2.0 channels and an audio channel, giving the user the flexibility to attach selected peripherals to different computers. Models are available supporting single, dual, triple or quad head VGA computers.

FEATURES:

High Definition VGA with extended profile DDC EDID
The ADDERView Pro Multi Screen features high resolution VGA video with extended profile DDC EDID. The extended DDC EDID profile ensures that the switched graphics card is always optimised to work with your screen. The VGA capabilities enable users to work at very high resolutions including WUXGA (1920 x 1200) or (1920 x 1440) on each head for resolution intensive applications such as media/graphic design or detailed medical imaging.

True Emulation USB2.0 technology
The AV4PRO-VGA-MS belongs to the first KVMA range of switches to feature Adder's advanced True USB Emulation technology. Emulated USB provides an instantaneous and reliable switching action and makes keyboard hotkey and mouse switching possible. Adder's revolutionary True Emulation technology overcomes this frustrating limitation by emulating the true character of the connected devices to all the computers simultaneously.

This means that you can now use the extra function keys, wheels, buttons and controls that are commonly found on modern keyboards and mice. Users in Architecture, Graphic Design, Post Production, Animation, Medical Imaging etc. often need to use specialised interface devices such as graphics tablets, 3D explorers, joysticks, and so on.

Independent simultaneous device selection

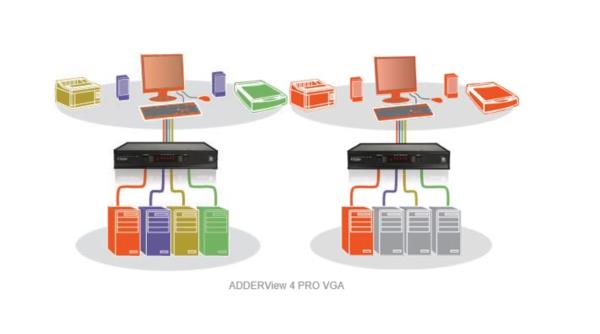

Flexibility is key to the ADDERView Pro. The switch enables you to use the KVMA console to work on one computer whilst your USB peripherals are connected to other computers and your speakers are playing music from yet another. You can of course still switch all connected devices to any one of the connected computers as with any other KVM switch.

Channel selection options
The ADDERView Pro can be switched using selectable keyboard hotkeys, 3 button mice or the front panel controls. These switching options allow you to rapidly reassign connected devices to any of the connected computers.

Broad USB 2.0 Hi Speed device support
A vast range of USB devices can be connected to the ADDERView Pro, from non standard human interface devices to printers and scanners.

Hardware Compatibility

All computers with USB interfaces

Software Compatibility

Operates with all known software and operating systems including
Windows (all), DOS, Linux, Unix, BSD, all Sun OS, all Mac OS, NetWare etc.

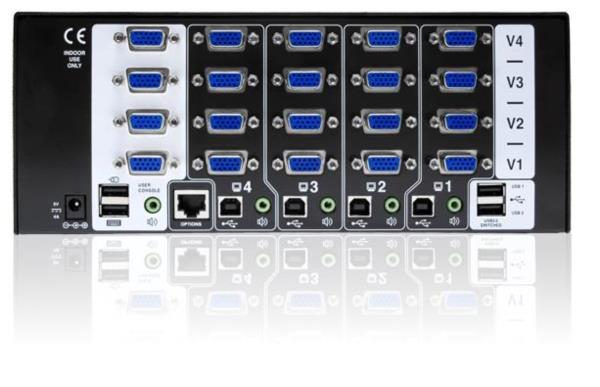

Computer Connections at Switch

USB 2.0 type B, Hi Res VGA (up to 4 per connection), 3.5mm stereo jack

Local KVM Console Connection

Video: VGA (Dual x 2, Triple x 3 or Quad x 4)
Keyboard/Mouse: 2 x USB type A
Switched USB: 2 x USB 2.0 type A. Supports USB 2.0 devices in low, full and high speed modes.
USB True Emulation: Emulates keyboard and mouse on each port. Low speed HID USB 2.0 devices supported
Audio: 3.5mm stereo jack
Other Connections: Options (flash upgrade, sync with other AV4PRO-DVI-MS and RS232 triggered power switches): Modular 10P10C

Physical Design

2.5U high metal case 260mm (w), 150mm (d), 100mm (h)

Power

2.5mm DC jack (power adapter included), 100-240VAC 50/60Hz input to power adapter, 5VDC 2A output from power adapter

Operating Temperature

0 to 40 deg C / 32 to 104 deg F

Approvals

CE, FCC
