CCS-MV4228

Adder

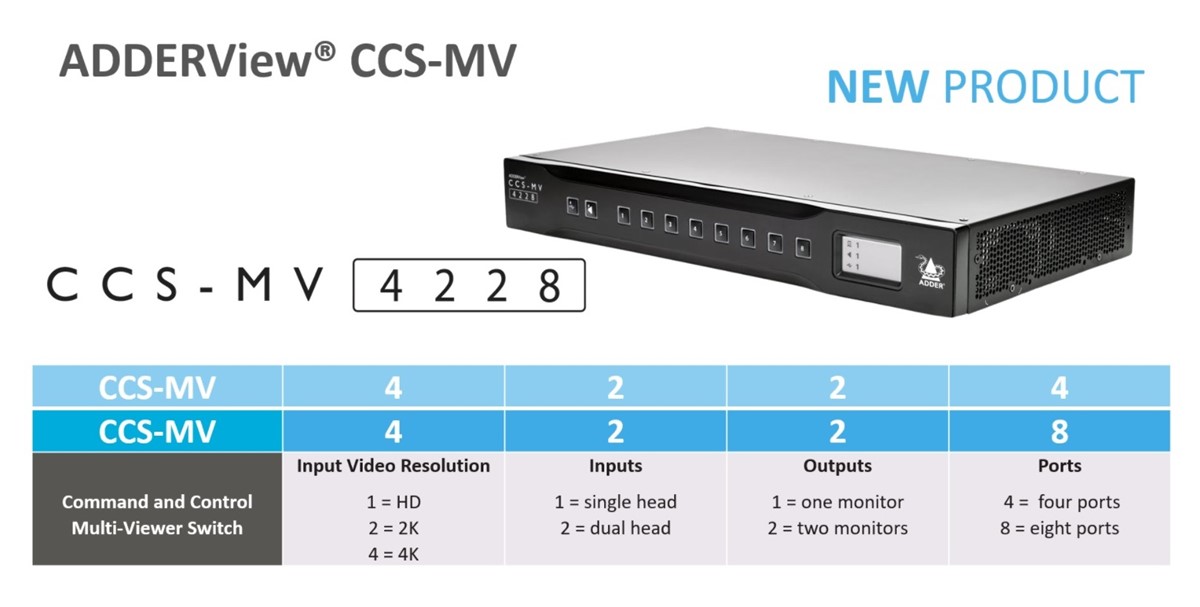

ADDERView desktop multi-viewer switch, provides simultaneous, real-time UHD 4K (3840 x 2160) KVMA (Keyboard, Video, Mouse and Audio) access of up to Eight computers from a single workstation. Directly connect a single workstation to four video, audio and USB sources.

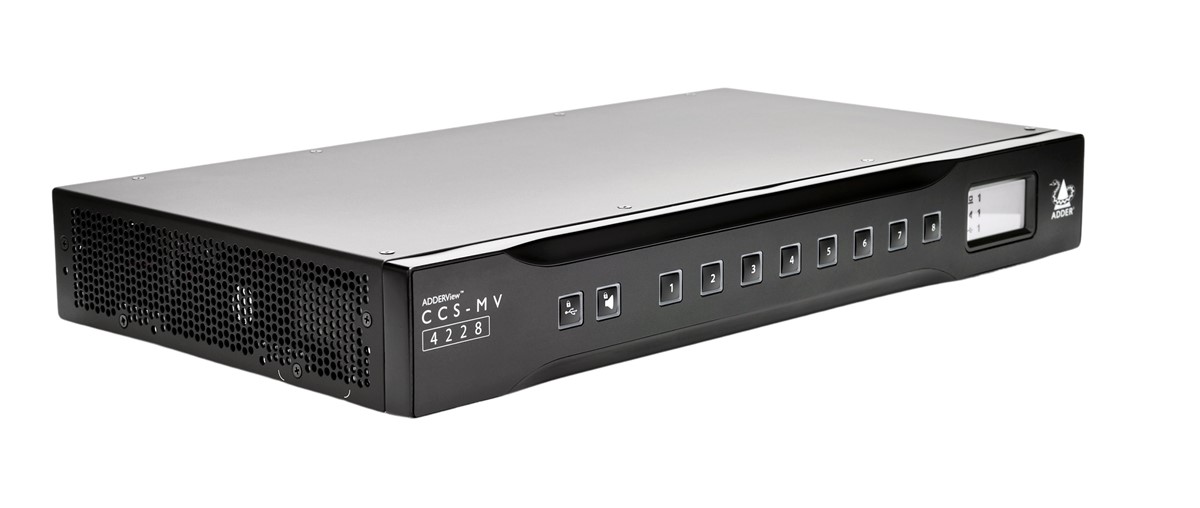

The ADDERView® CCS-MV, a desktop multi-viewer switch, provides simultaneous, real-time 4K KVMA (Keyboard, Video, Mouse and Audio) access of up to eight computers from a single workstation. Users can instantly take control of the target computer by simply moving the mouse between windows, providing the experience of a single desktop.

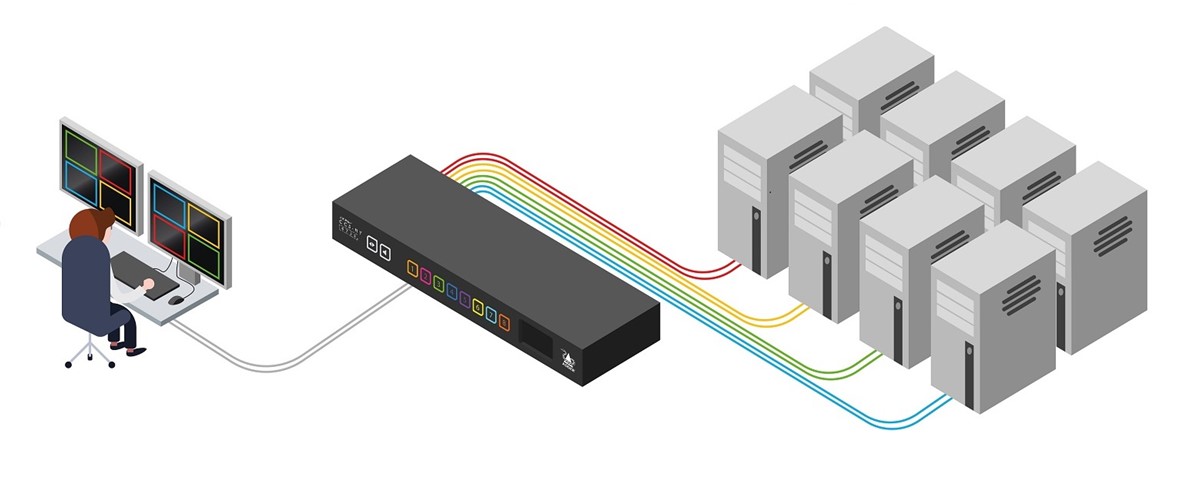

  • Directly connect a single workstation to eight video, audio and USB sources
  • Access any number of sources on a network when combined with an ADDERLink® INFINITY IP KVM Matrix
  • Seamless cursor interaction with sources as if using a single desktop
  • Color-coded identifiers plus configurable name for fast channel identification
  • Multiple window layouts for real-time data visualization and improved decision making
  • Enhanced, decluttered workspace ergonomics and improved situational awareness



Product Features

Video performance
Up to UHD 4K video output resolution is generated, thus providing a crystal clear display, even with a tiled window layout.
Automatic switching
Natural automatic switching of KVM and audio control between ports without the need to press any buttons. Simply move the mouse between windows.

Flexible screen layout
Use preset window layouts, or move and resize windows to create custom layouts. Dual output ports allow for extended or duplicated displays.

Channel identification
Reduce the chances of operator error by displaying a meaningful name for each channel. The port LED and window border colors may also be configured.

USB performance
Emulated USB2.0 ports for fast switching of HID (Human Interface Devices), such as keyboard and mouse. Hi-speed USB3.0 switched port for mass storage and isochronous devices, including flash drives, headsets and web cams.

Flexible computer connections
Connect to a combination of single and dual-head computers with either DisplayPort, HDMI or DVI connectors.

Analog audio
Output analog audio. An audio ‘Hold’ facility assigns the audio connection to a specific computer whilst the KVM is switched to another computer. Useful when a user needs to talk to one channel, whilst working on another.

Digital audio mixer
Option to combine audio signal from multiple HDMI® channels. Adjust the volume level for each channel.

Copy & Paste
Copy text between Windows 10 computers using standard keyboard, Ctrl+C and Ctrl+V commands.

Matrix integration
The ADDERView® CCS-MV 4228 may be connected to the ADDERLink® INFINITY matrix system. This allows the user to control any 8 computers connected to the matrix network.

Remote control
Select layout presets and input channels remotely for control room applications where the displays are used to aid situation awareness.

Operating Systems and Compatibility
Windows, Linux, macOS

Video resolutions (Up to two screens)
UHD 4k (3840x2160) at 4:4:4
Frame Rate: 30
Color Depth: 8 bpc

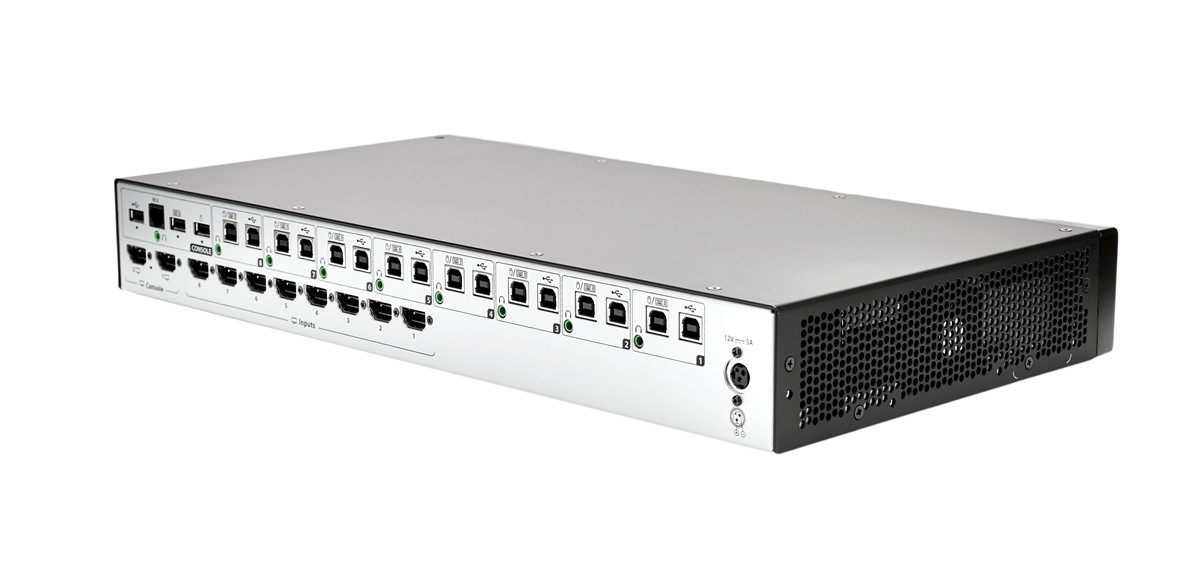

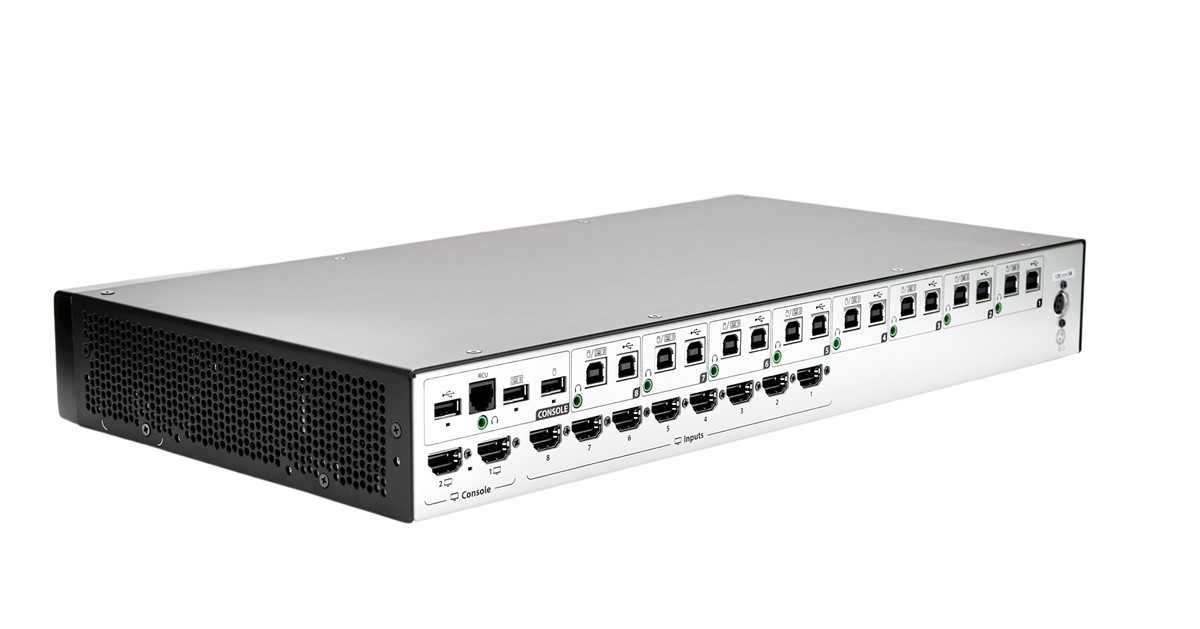

Computer Connections
2 x USB B 2.0 (True Emulation (HID), Hi-Speed)
1 x DisplayPort ™ (Dual Port - DP+HDMI)

Console Connections
2 x USB A 2.0 (True Emulation (HID), Hi-Speed)
1 x DisplayPort ™ (Dual Port - DP+HDMI)

Audio
Audio Type: Analog/Digital
Channels: 2
Audio Out Port Type: 1x 3.5mm jack

Serial Ports
1 x RS232, For remote control
Serial Type Connection RJ12 (6p6c)

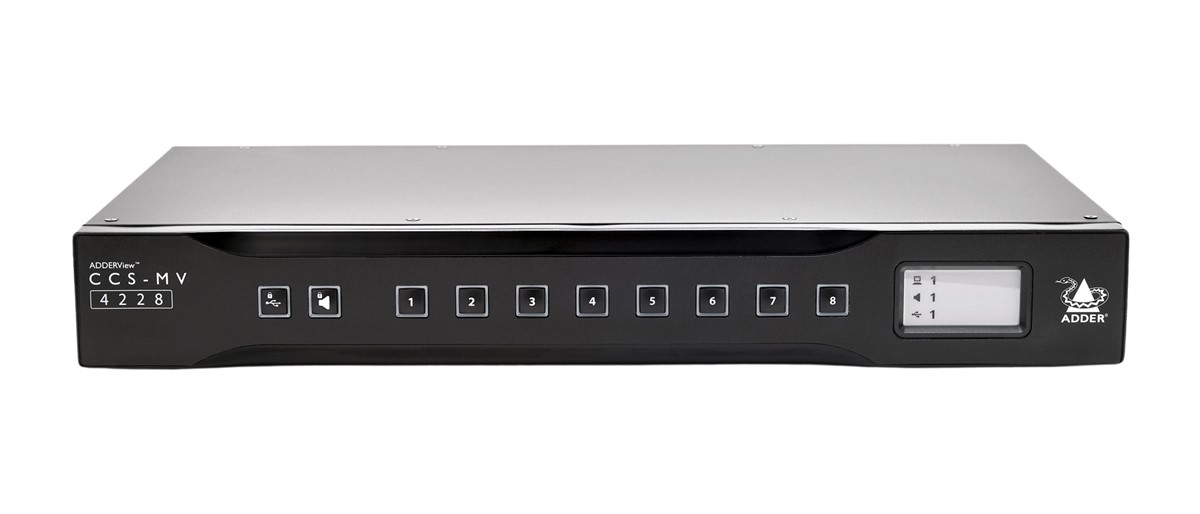

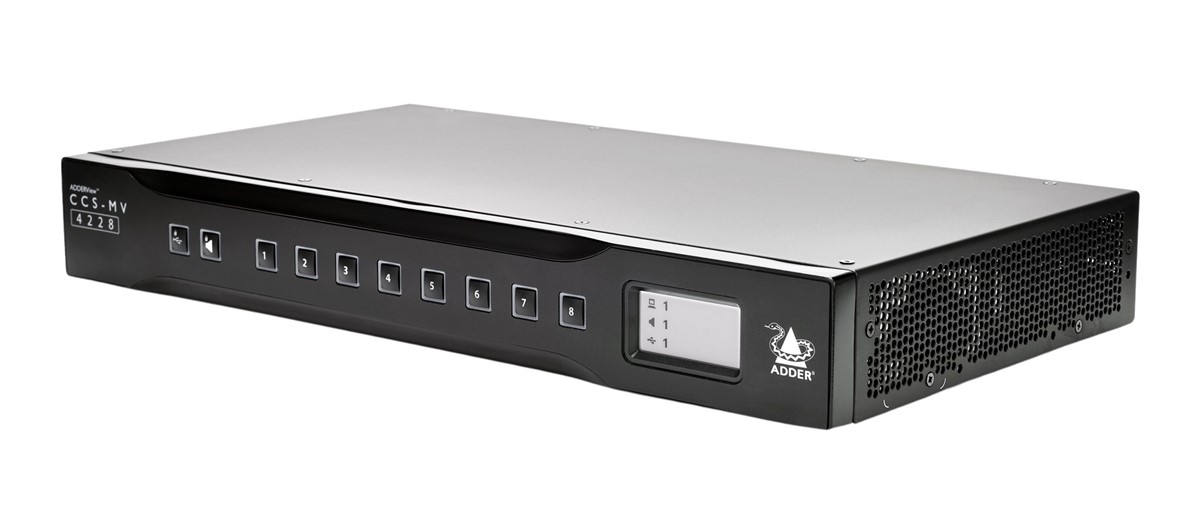

Front Panel Features
8 x Multi colour status LEDs
1 x E-Paper Display
1 x Audio Hold button
1 x Hi-Speed USB Hold button

Physical design
Robust metal construction
Width: 439mm/17.3in
Height: 58mm/2.3in
Depth: 237mm/9.3in
Weight: 3.8kg/8.4lb

Power
Power type: 1 x 12V 3-pin Kycon
Input Power Supply: PSU 4A
Maximum power (Watts): 36
Maximum Power (Volts): 12
Maximum power (Current): 3
Additional Information: 100-240V AC, 47/63Hz. 12V DC 48W output from power supply unit.

Environmental
Operating temperature: 0 - 40°C/32 - 104°F
Storage temperature: -20 - 60°C/-4 - 140°F
Storage and operating humidity: 0% - 80% (non-condensing)
Temperature Regulation: Built-in fan
Warranty: 2 years

Approvals
CE, cTUVus, FCC, ICES, UKCA

Standards
ANSI 63.4, EN/IEC 62368-1, EN55032 /CISPR 32, EN55035/CISPR 35, EN61000-3-2, EN61000-3-3, EN63000, FCC pt15B

Other
Cal Prop 65, China ROHS, EU REACH, UK REACH
