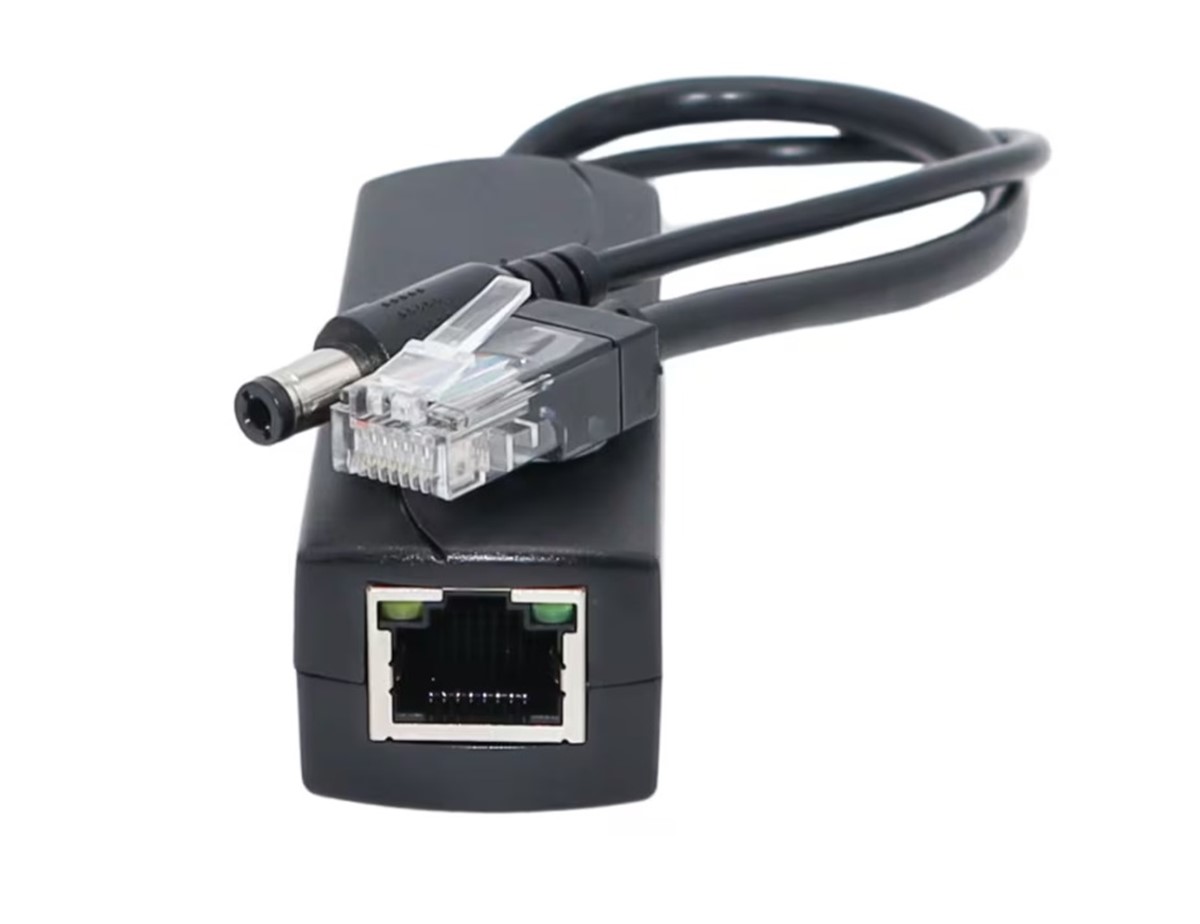

PSU-POE-5VDC-2.4A

Adder

Supplies power and 1GbE data simultaneously to devices not supporting PoE. Ideal for systems where access to power is limited by infrastructure layout.

Supplies power and 1GbE data simultaneously to devices not supporting PoE. Ideal for systems where access to power is limited by infrastructure layout.

IEEE802.3af compliant PoE splitter for 5V products

Power Supply (PSU-POE-5VDC-2.4A) Specification
Cable Requirements
Recommended Cable Type CAT5e and above
Maximum Cable Length 100m / 328ft
Network Support
Bandwidth 10/100/1000MbE
10/100 Support Yes
Environmental
Operating Temperature -20 to 50 °C / -4 to 122 °F
Storage Temperature -30 to 60 °C / -22 to 140 °F
Operating Humidity (%) 10% - 90% (non-condensing)
Storage Humidity (%) 5% - 95% (non-condensing)
Altitude 2000m / 6562ft
Power Source
5V 1×
Input Power Supply PoE (802.3.AF)
Physical Design
Construction Material Robust plastic enclosure
U size Zero
Width 28mm / 1.1in
Height 24mm / 0.9in
Depth 81mm / 3.20in
Flying Lead Length 190mm
Weight 0.1kg / 0.2lb
Approvals and Standards
Approvals CE, FCC, ICES
Standards ANSI 63.4, EN/IEC 62368-1, EN55032 /CISPR 32, EN55035/CISPR 35, EN61000-3-2, EN61000-3-3, FCC pt15B, ICES003, IEE802.3at
Other Cal Prop 65, China ROHS, EU REACH, UK REACH
Ordering Information
Code Description
PSU-POE-5VDC-2.4A 1GbE Power over Ethernet Splitter 12W
What's in the Box?
1× 1GbE Power over Ethernet Splitter 12W
