XD612P-DP

Adder

The ADDERLink™ XD612 is a high performance KVMA (Keyboard, Video, Mouse and Audio) extender that is designed to provide reliable and real-time access to critical computers – regardless of the location, whilst maintaining the same user desktop experience. Simplicity of true plug and play and high performance HD KVM extension; resulting in superior functionality and flexibility in a cost-effective, reliable and straight forward solution.


The ADDERLink™ XD612 is a high performance KVMA (Keyboard, Video, Mouse and Audio) extender that is designed to provide reliable and real-time access to critical computers – regardless of the location, whilst maintaining the same user desktop experience.

Developed for enterprise organizations and highpressure control rooms, it combines the simplicity of true plug and play and high performance HD KVM extension; resulting in superior functionality and flexibility in a cost-effective, reliable and straight forward solution.



  • Single or dual-head HD60 video, USB2.0 (HID) and audio are transmitted on a single CATx or fiber cable
  • Point-to-point protocol for ultra-low latency
  • Flexibility between copper and fiber connectivity
  • Adder’s USB True Emulation ensures reliable computer bootup



High resolution video, real-time control
The system supports resolutions up to 1920x1200 @60Hz using 8 bits per color and 4:4:4 chroma sampling. Either single or dual-heads are transmitted within a single cable.
• A single DisplayPort™ 1.2 connection at the transmitter (TX)
• Either one or two video outputs at the receiver (RX)
• Dual-head utilizes DisplayPort™ MST (Multi-Stream Transport) technology
• A local pass-through video port is provided at the TX

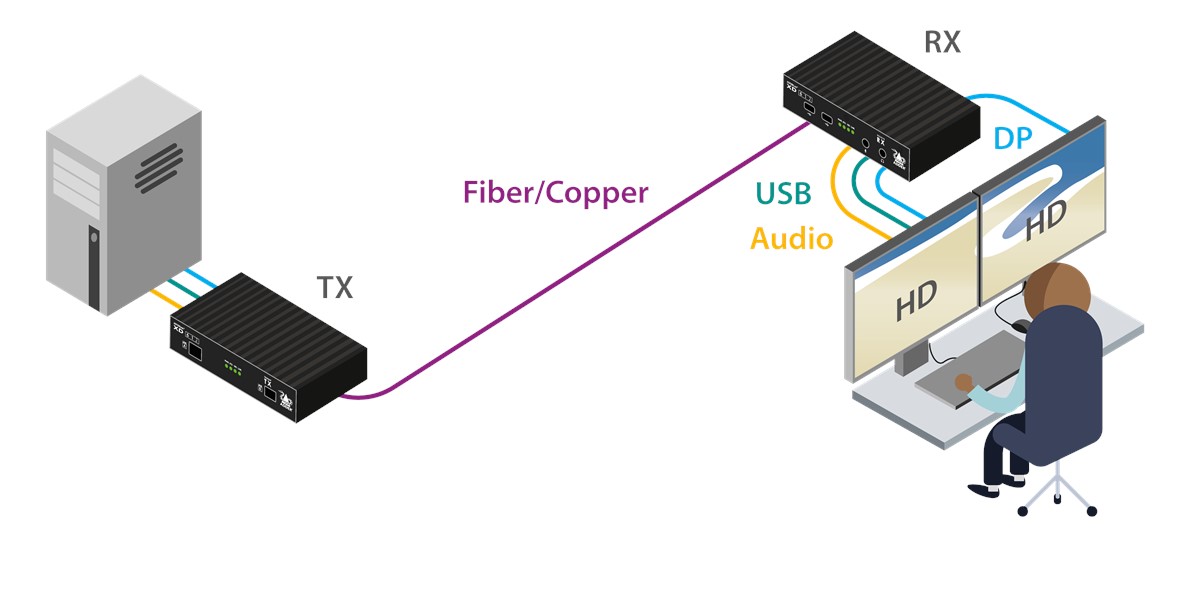

Single cable
HD video, USB2.0 HID (human interface device) and audio are transmitted on a single CATx or fiber cable.

Up to 4km/2.5 mile range
The ADDERLink™ XD612 (XD612) supports both copper and fiber interfaces. It provides a range of up to 100m/328ft over a CAT6 cable link, and up to 4km/2.5 miles over an optical fiber link.

Emulated USB2.0
Enables connection of any full and low-speed USB HID from mouse and keyboards through to graphics tablets and jog shuttles.

EDID management
The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.

Plug and play
The XD612 extender is delivered in a zero config. state so it works, without the need for drivers or software, as soon as it is connected.

Audio
Video: Encapsulates two channels of 24-bit, 192kHz sampled “Pulse-code modulation” (PCM) audio with each video signal.
USB: Two channels of 24-bit, 96kHz sampled PCM audio.
Analog: Two channels of 24-bit, 96kHz audio for Line in/out, microphone and headphone/ speakers.

Serial communications
RS232 can be passed between the units to a maximum baud rate 115K2 with RTS/CTS flow control.



Video resolutions
The system supports up to 2 heads at resolutions to a maximum of 1920x1200 @ 60Hz
Software compatibility

All known operating systems. No drivers required.
Extension technology

5Gb/s CATx or 10Gb/s fiber with ultra low latency adaptive video stream compression.
Connections

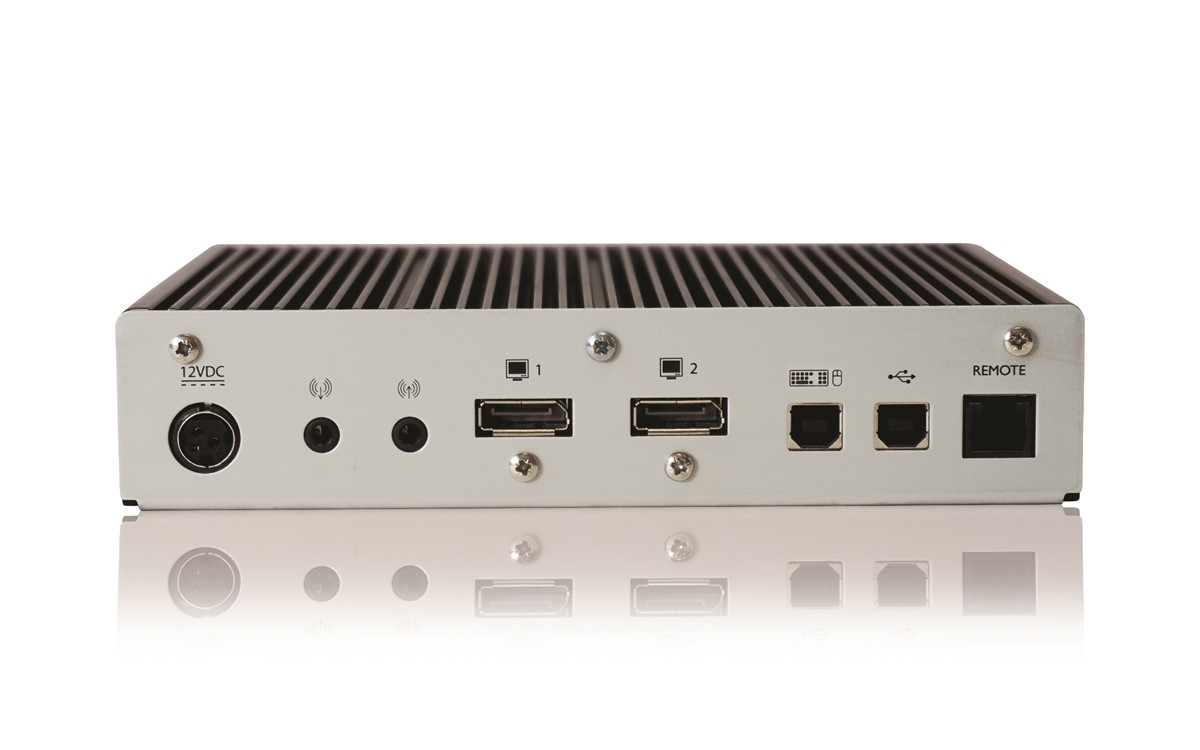

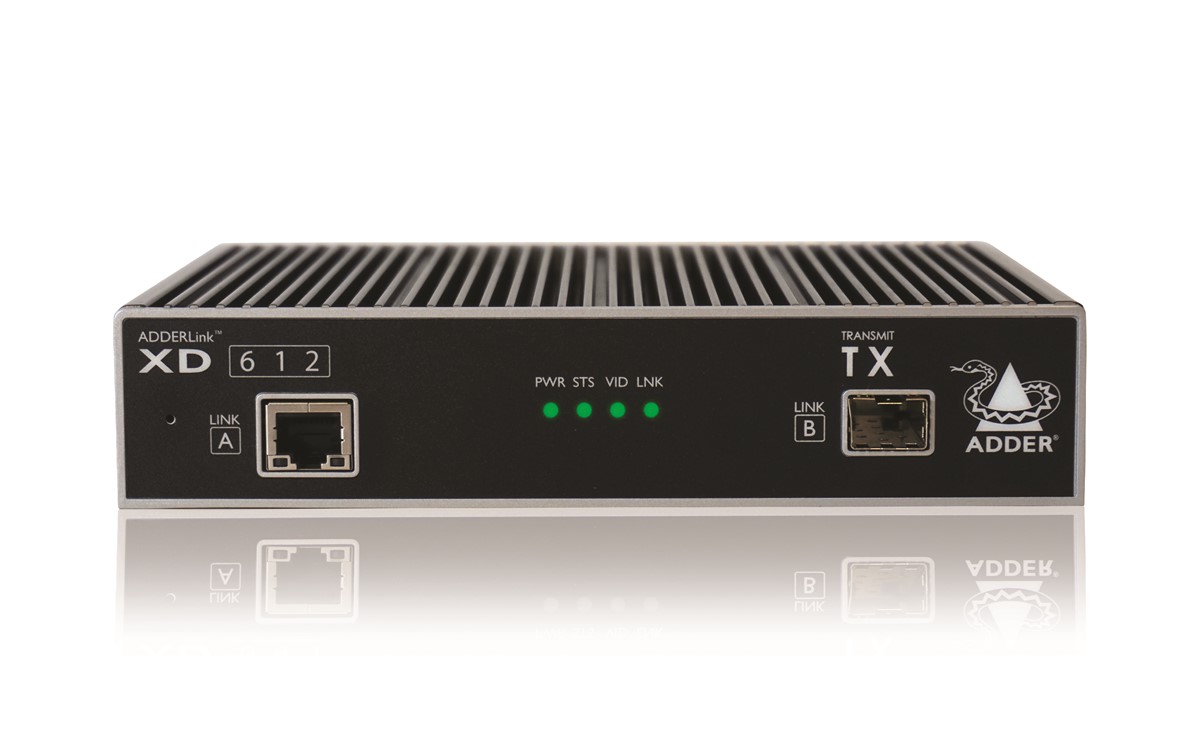

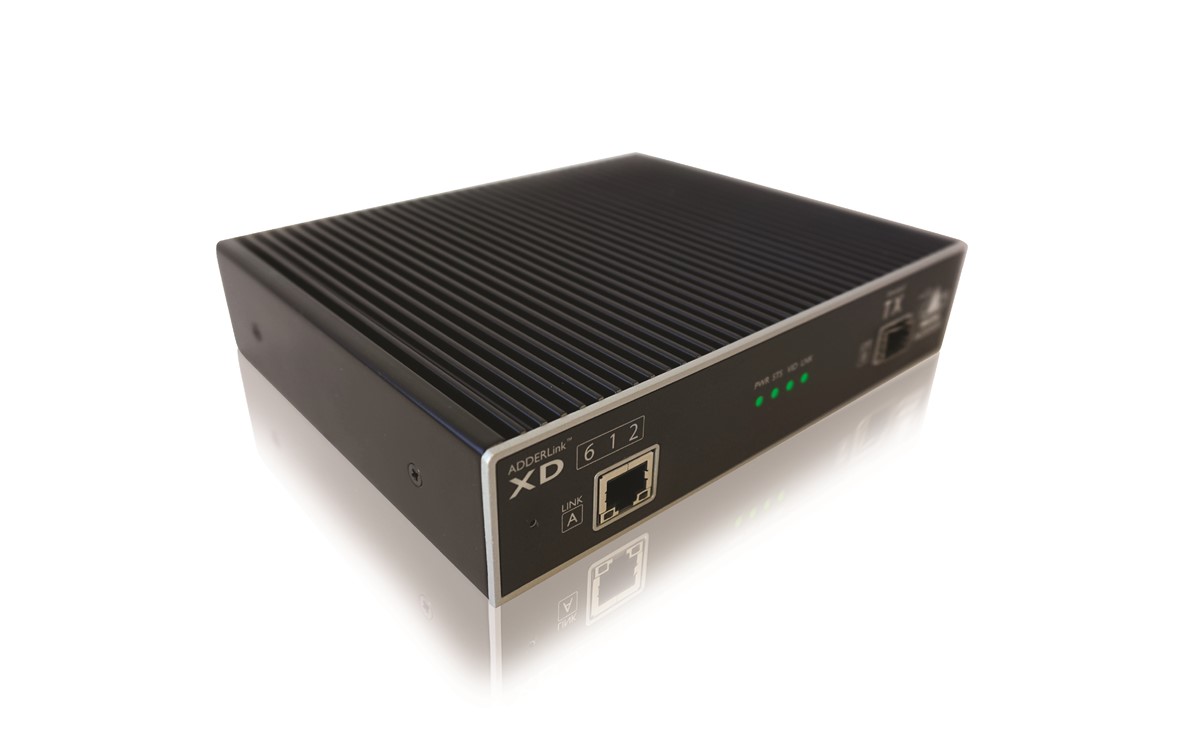

Local unit - Transmitter (TX)

4 x Tri-color status LEDs
DisplayPort™ in and local pass-through out
2 x USB2.0 Type B
Line in and out analog audio
RJ12 serial port
RJ45 and SFP+ ports

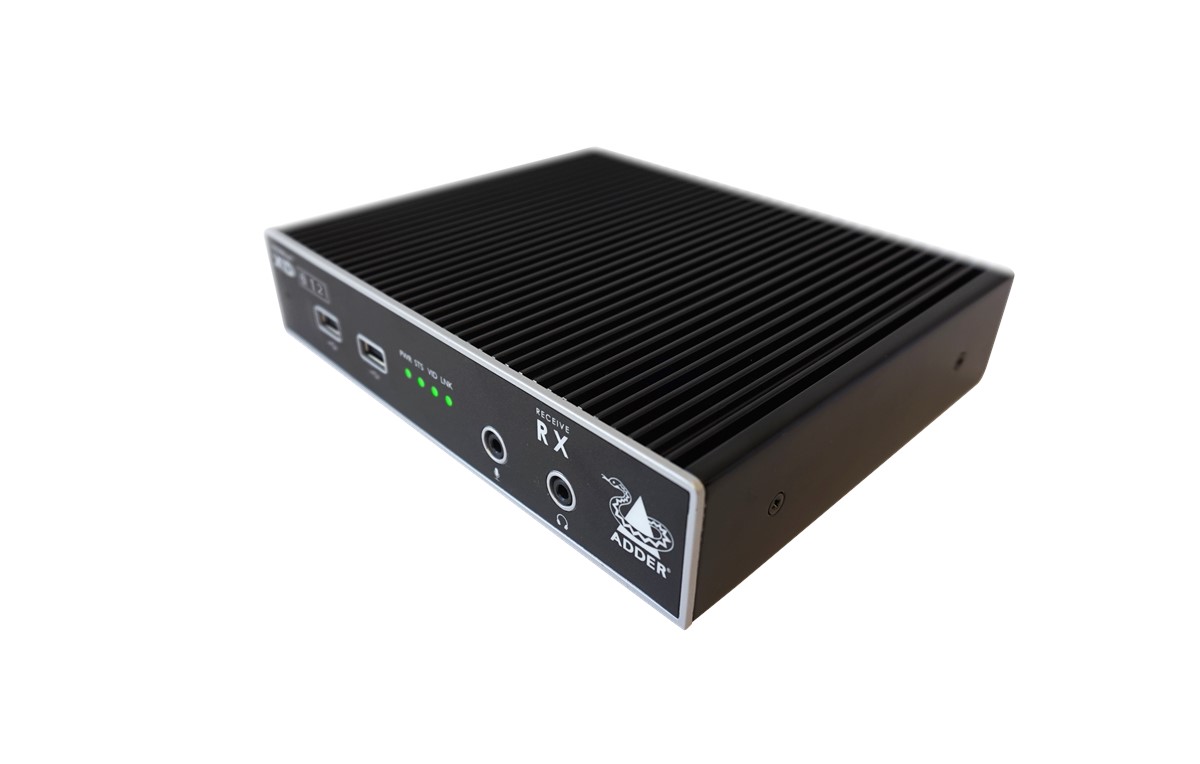

Remote unit - Receiver (RX)

4 x Tri-color status LEDs
2 x DisplayPort™ out
4 x USB2.0 full speed Type A
Mic in, headset and speaker out
RJ12 serial port
RJ45 and SFP+ ports

Physical Design
Robust metal construction

TX and RX: 186mm/7.32” (w), 39mm/1.54” (h), 148mm/5.83” (d)
TX: 1.29kg/2.84lbs•RX: 1.24kg/2.73lbs
Power supply

100-240 VAC, 47/63Hz
12 VDC 18W output from power supply unit
Operating temperature
0ºC to 40ºC/32ºF to 104ºF
Storage temperature

-10ºC to 50ºC/14ºF to 122ºF
Humidity

0% to 80% (non-condensing)
Approvals

CE, FCC
Extension Distance

ADDERLink™ XD600 Extension Distance

ADDERLink™ XD600 Extension Distance


Note:

SM (Single-Mode Fiber)
MM (Multi-Mode Fiber)
CAT6 is recommended for CATx extensions. CATx extensions are limited to 2 patch connections. Patch cables should be CAT6 or better.
