Adder XD614P-DP

Adderlink Quad Head HD 1920x1200 Display Port Extender using Multi-Stream Transport (MST)

A high-resolution quad-head KVM extender. High definition video, USB2.0 and audio are transmitted on a single CATx or fiber cable..

$2,895.00 RRP (inc GST)
Login for Reseller Pricing


Quantity
click to enlarge

A high-resolution quad-head KVM extender. High definition video, USB2.0 and audio are transmitted on a single CATx or fiber cable.The ADDERLink XD614 is a high performance KVMA (Keyboard, Video, Mouse and Audio) extender that is designed to provide reliable and real-time access to critical computers – regardless of the location, whilst maintaining the same user desktop experience.

Part of the XD600 Series of Display Port Extenders providing:

Developed for enterprise organizations and high-pressure control rooms, it combines the simplicity of true plug and play and high performance HD KVM extension, resulting in superior functionality and flexibility in a cost-effective, reliable and straightforward solution.
•Quad head HD 60 video, USB2.0 (HID) and audio are transmitted on a single CATx or fiber cable.
•Purpose-built, point-to-point KVM extender.
•Flexibility between copper and fiber connectivity.



High-resolution video, real-time control

•The system supports resolutions up to 1920x1200 @ 60Hz using 8 bits per color and 4:4:4 chroma sampling. Up to four heads are transmitted within a single cable by utilizing DisplayPort 1.2 MST (Multi-Stream Transport) technology.



Single cable

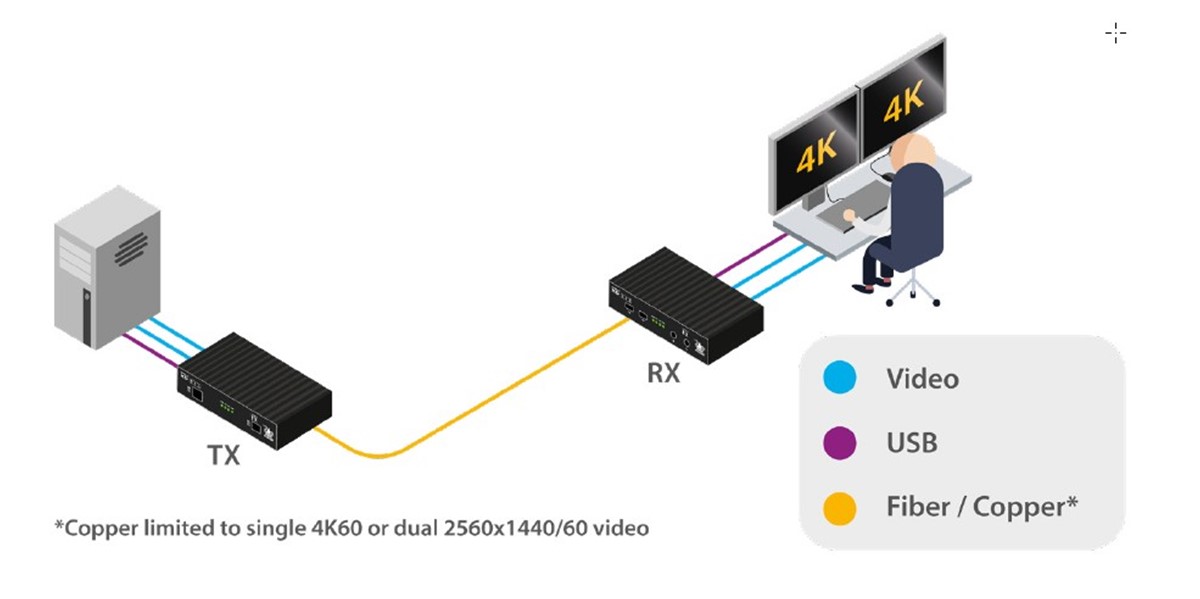

HD video, HID (human interface device) USB2.0 and audio are transmitted on a single CATx or fiber cable.



Up to 4km/2.5 mile extension distances

The ADDERLink XD614 supports both copper and fiber interfaces. It provides a range of up to 100m over a CAT6 cable link, and up to 4km over an optical fiber link.



Emulated USB2.0

Enables connection of any full and low speed USB HID from mouse and keyboards through to graphics tablets and joysticks.



EDID management

The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.



Plug and Play

The ADDERLink XD614 extender is delivered in a zero config. state so it works, without the need for drivers or software, as soon as it is connected.



Digital audio

Video: Encapsulates two channels of 24-bit, 192kHz sampled "Pulse-code modulation" (PCM) audio with each video signal.

USB: Two channels of 24-bit, 96kHz sampled PCM audio.

Analog: Two channels of 24-bit, 96kHz audio for Line in/out, microphone and headphone/speakers.



HD quality analog audio

HD audio quality (stereo audio, 24-bit sampled at 96kHz) is available for line in/out, microphone and headphone or speakers.



Serial communications

RS232 can be passed between the units to a maximum baud rate 115K2 with RTS/CTS flow control.





Video resolutions

The system supports up to 4 heads at resolutions to a maximum of 1920x1200 @ 60Hz

Software compatibility

All known operating systems. No drivers required.

Connections

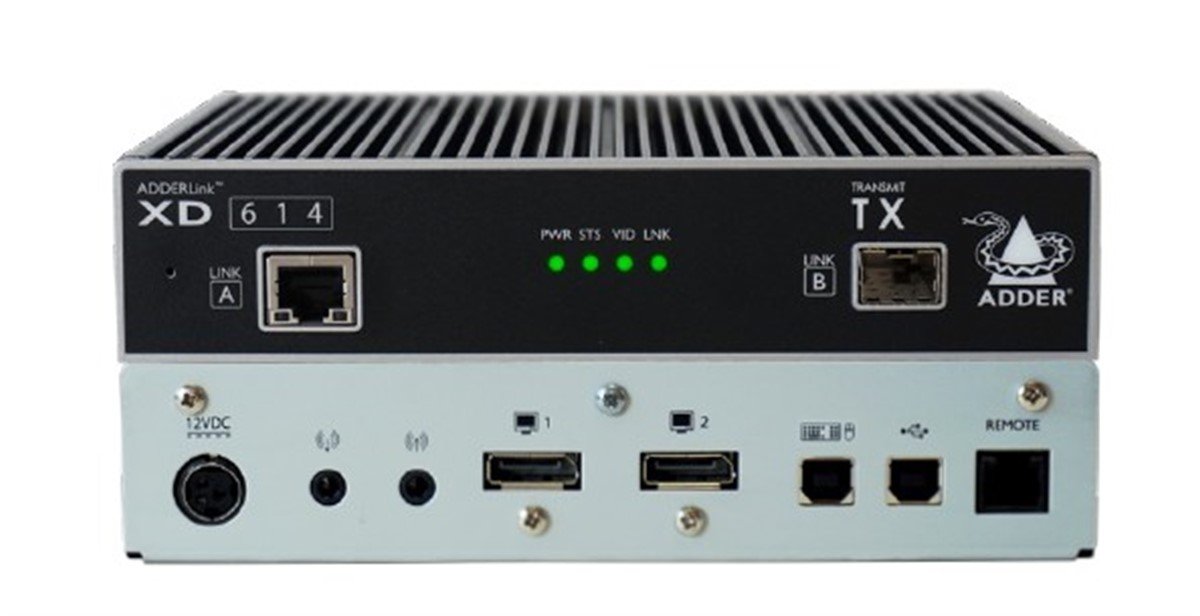

Local unit - Transmitter (TX)

4 x Tri-color status LEDs

DisplayPort™ in and local pass-through out

2 x USB2.0 Type B

Line in and out analog audio

RJ12 serial port

RJ45 and SFP+ ports

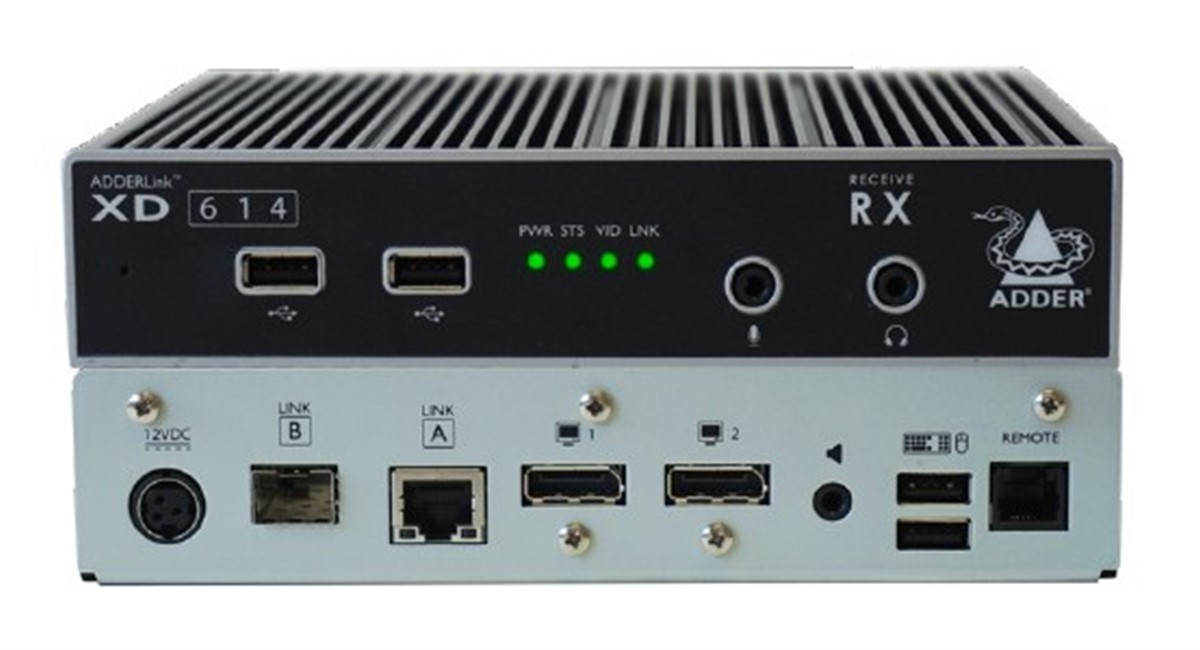

Remote unit - Receiver (RX)

4 x Tri-color status LEDs

2 x DisplayPort™ out

4 x USB2.0 full speed Type A

Mic in, headset and speaker out

RJ12 serial port

RJ45 and SFP+ ports

Physical Design

Robust metal construction

TX and RX: 186mm/7.32" (w), 39mm/1.54" (h), 148mm/5.83" (d)

TX: 1.29kg/2.84lbs•RX: 1.24kg/2.73lbs

Power supply

100-240 VAC, 47/63Hz

12 VDC 18W output from power supply unit

Operating temperature

0ºC to 40ºC/32ºF to 104ºF

Storage temperature

-10ºC to 50ºC/14ºF to 122ºF

Humidity

0% to 80% (non-condensing)

Approvals

CE, FCC

Extension Distance

Cat5e 50m

Cat6 100m

SM Fibre 4Km

MM Fibre 300m

ADDERLink™ XD600 Extension Distance

Note:

SM (Single-Mode Fiber)

MM (Multi-Mode Fiber)

CAT6 is recommended for CATx extensions. CATx extensions are limited to 2 patch connections. Patch cables should be CAT6 or better.
