AH-F-33.9B

Austin Hughes

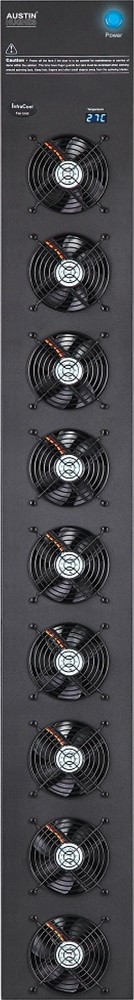

F-33.9A is a basic 33U door mount fan panel (model A) (9 fans). It extracts hot air out (rear door outside setup), or intake cool air in (front door inside setup).


F-33.9A is a basic 33U door mount fan panel (model A) (9 fans). It extracts hot air out (rear door outside setup), or intake cool air in (front door inside setup).

With today’s high density heat loads inside server racks, cooling should be an integral part of the rack equipment. InfraCool Basic 33U Door Mount Fan Panel (F-33.9A) is designed as an efficient airflow solutions for server racks with high heat loads.

The light weight and simple mounting design allows the door mounting on the perforated doors of every branded rack. Strong airflow created by the fan panel highly improve the temperature conditions of high density rack-mounted rack.

Benefits

  • 33U rack door mount w/ 9 Fans (972 CFM)
  • Rear door outside (Extract airflow) / Front door inside (Intake airflow) mount
  • Easy installation with common tools
  • Thin & light weight design only 4.6 kgs / 10.1 lbs
  • Designed for low noise & high airflow performance
  • Improves extraction of heat from high density rack
  • External temperature sensor x 1
  • Front temperature LED
  • Auto-sensing 110V to 220VAC power input

Options

  • 48V, 24V or 12VDC power option

Model Installation Airflow Purpose
F-33.9B Front door outside Intake airflow Cool air in from aisle

Rear door inside Extract airflow Exhaust air out from rack



Categories  Basic 33U Door Mount Fan Panel, Door Mount Fan Panel, Rack Airflow Fans

Product Series  Basic

Form Factor  33U Door Mount, Front door outside (Intake airflow) / Rear door inside (Extract airflow)

Fans  9 Fans

Fan Capacity  108 CFM Max.

Total Fan Capacity  972 CFM

Control Method  Local

Cascade  None

Front Panel LED  Yes

Local Temperature Monitoring  Yes

Remote Temperature Monitoring  N/A

Remote Access via Web Browser  N/A

Manual Fan Speed Control  N/A

Automatic Fan Speed Control  N/A

Local Fan Unit ON / OFF  Yes

Remote Fan Unit ON / OFF  N/A

Local Individual Fan ON / OFF  N/A

Remote Individual Fan ON / OFF  N/A

Temperature Alarm Setting  N/A

Reporting  N/A

MTBF 50,000 Hours

Compliance  CE, FCC, REACH, RoHS3

Dimensions  38 × 195 × 1466 mm
