KDR-DK117e

Austin Hughes

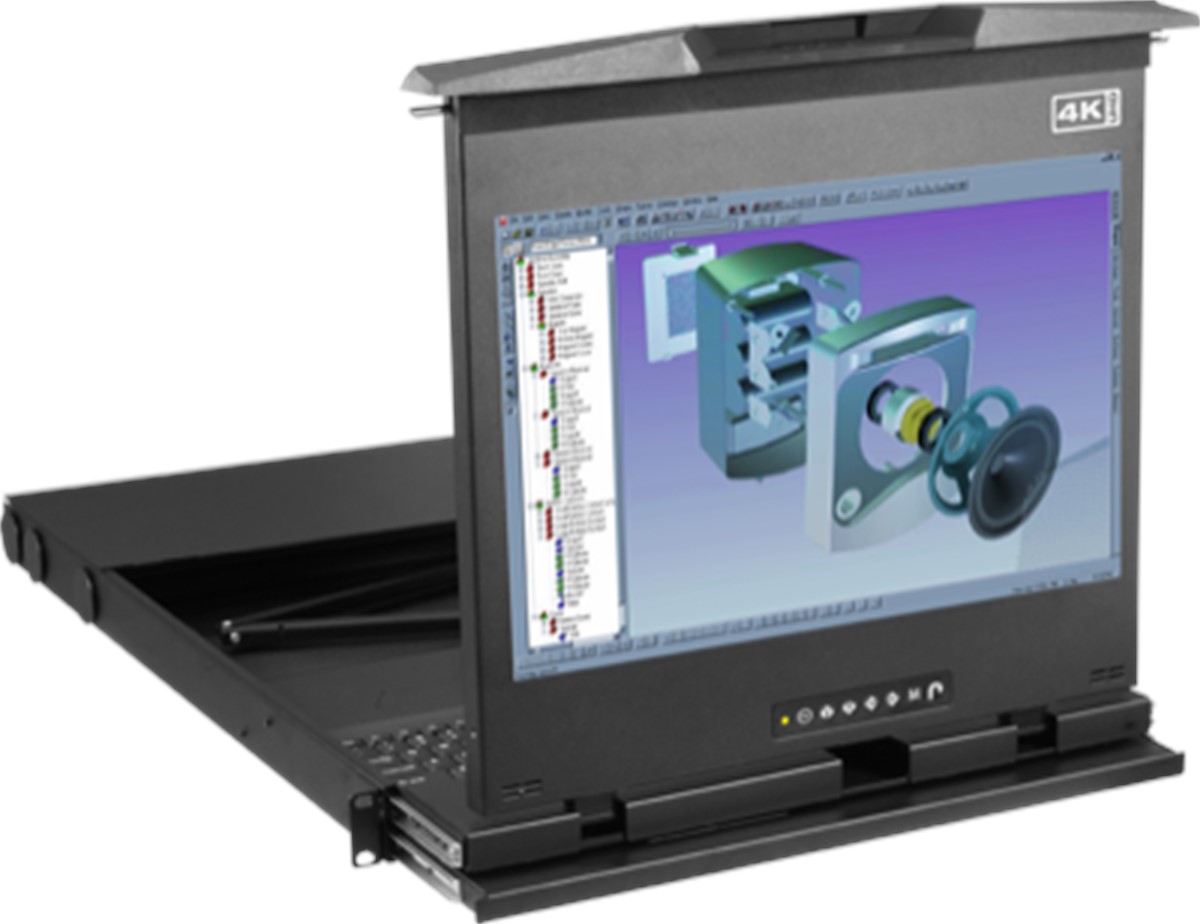

The CyberView DK117 Dual Slide rack console features a 17″ 4K LCD capable of 4K video.  DK117 1U dual slides (3840 x2160) LCD Console Drawer DP + K/B & MS inputs, w/ CP-6 console cable, 6ft

The CyberView DK117 Dual Slide rack console features a 17″ 4K LCD capable of 4K video. DK117 1U dual slides (3840 x2160) LCD Console Drawer DP + K/B & MS inputs, w/ CP-6 console cable, 6ft



1U 17" 4K LCD console drawer
Dual slide - LCD and keyboard slide independently
3840 x 2160 @60Hz native resolution / 16.7M colors ( 8-bit )
1920 x 1080 & 1920 x 1200 resolution support
Display port 1.2 video input / USB KB / MS
Built-in dual stereo speakers
One Man installation design
Enhanced aesthetics with 2-point lock
2-year standard warranty ( upgradable up to 5 years )



Options
HDMI 2.0 video input
3G / HD / SD-SDI Broadcast-grade input
DC power : 12V / 24V / 48V / 125V
Keyboard available in 8 languages
MAC or SUN Micro keyboard options available
Integrated KVM Switch options





Cyberview DK117 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console 1.73 x 17.4 x 25.6 in.
(44 x 442 x 650 mm.)
Console w/ KVM 1.73 x 17.4 x 25.6 in.
(44 x 442 x 650 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM		 5.5 x 23.4 x 33.9 in.
(140 x 595 x 860 mm.)
Net Weight
Single Console 26.4 lbs. (12 kg)
Console w/ KVM 28.6 lbs. (13 kg)
Gross Weight
Single Console 39.6 lbs. (18 kg)
Console w/ KVM 41.8 lbs. (19 kg)
Mounting Distance
Single Console /
Console w/ KVM		 26 ~ 34.3 inch
(660 ~ 870 mm)
Console Ports
Video Input Display port 1.2
KB / MS USB type B
DP console 6ft cable : CP-6 Drawer end : DP + USB type B ( KB / MS )
Server end : DP + USB type A
LCD Screen
LCD panel size ( diagonal ) 17.3"
Backlight type LED
Native resolution 3840 x 2160
Brightness (cd/m2) 310
Colors 16.7 M, 8-bit
Contrast Ratio (typ) 1000 : 1
Viewing angle ( L/R/U/D 89/89/89/89
Response time ( ms ) 30
Dot pitch ( mm ) 0.0.0995
Display area ( mm ) 382.12H x 214.94V
Surface treatment Anti-glare
Surface hardness 3H
MTBF (hrs) 20,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Input Impedance / Power level 30? / 750mV
Output Connector 3.5mm stereo jack
Output Impedance / Power level 30? / 2.8V
Power
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen on Max. 29W / Max. 38W
Power saving mode Max. 9W / Max. 18W
Power button on Max. 2W / Nil
Environmental
Operating Temperature 0 to 55°C Degree
Storage Temperature -20 to 60°C Degree
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant
