KSR-F117-801He

Austin Hughes

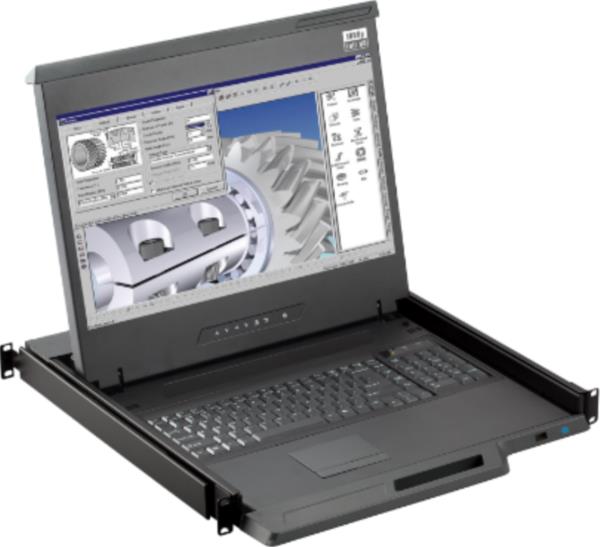

Cyberview F117-801H is a 1U Console drawer 17 inch LCD with Full HD (1920x1080) with an integrated 8-port DB-15 VGA-USB KVM Switch with USB Hub in built with touchpad.


The Cyberview F117-801H is a 1U Console drawer 17 inch LCD with Full HD (1920x1080) with an integrated 8-port DB-15 VGA-USB KVM Switch with USB Hubs in built with touchpad.



F117-801H

Features & Benefits:



  • 1U 17" widescreen LCD console drawer
  •  Support Full HD with 1080p resolution / 16.7M colors ( 8-bit )
  • New enhanced aesthetics with molded front handle
  •  Short depth design of 460mm ( 18.1" ) only
  •  104-key keyboard with either touchpad or trackball
  •  SUN Micro or MAC keyboard options available
  •  Front USB port for device access ( USB Hub KVM only )
  •  2 post rack mounting available
  • VGA DB-15 KVM in 1U form
  • 2 x USB 2.0 port sharing USB peripheral for computers
  • Support resolution up to 1920 x 1080
  • Mix USB & SUN with Multi-Platform switch capability
  • Multi-lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations
  • UL, cUL, CE, FCC, & CCC Certified



Optional Configurations (Contact us for availability)



  • Front USB hub port for device access
  •  HDMI 1.3 video input
  •  3G / HD / SD-SDI Broadcast-grade input
  • Audio input & output
  •  MAC or SUN Micro keyboard options available
  •  DC Power: 12, 24, 48, 125 V DC
  •  Multiple Integrated KVM Switch Options
  •  2-post rack mounting brackets ( ORB-2.1 )
  •  Additional languages supported
  •  Touchscreen: Resistive 1-pt, Projective 10-pt

F117 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console 1.73 x 17.4 x 18.1 in.
(44 x 442 x 460 mm.)
*Some options extend chassis depth to 18.9 in. ( 480 mm. )
Console w/ KVM 1.73 x 17.4 x 22.8 in.
(44 x 442 x 580 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM
5.5 x 23.2 x 31.8 in.
(140 x 590 x 808 mm.)
Net Weight
Single Console 23.8 lbs. (10.8 kg)
Console w/ KVM 25.5 lbs. (11.6 kg)
Gross Weight
Single Console 34.8 lbs. (15.8 kg)
Console w/ KVM 38.5 lbs. (17.5 kg)
Mounting Distance
Single Console 18.5 ~ 27.6 inch
(470 ~ 700 mm)
Console w/ KVM 18.5 ~ 31.5 inch
(470 ~ 800 mm)
Console Ports
Video Input VGA + DVI-D single link
Video Option HDMI 1.3 / HDCP 1.1
KB / MS Combo ( USB or PS2 )
VGA console 6ft cable (CB-6)
--OR--
DVI-D console 6ft cable (CX-6)
Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A
Drawer end : DVI-D + DB-15 ( USB KB / MS )
Server end : DVI-D + USB type A
LCD Screen
LCD panel size ( diagonal ) 17.3"
Backlight type LED
Native resolution 1920 x 1080
Brightness (cd/m2) 400
Colors 16.7 M, 8-bit
Contrast Ratio (typ) 600 : 1
Viewing angle ( L/R/U/D ) 80/80/60/80
Viewing angle (H x V) 160° x 140°
Response time ( ms ) 40
Dot pitch ( mm ) 0.1989
Display area ( mm ) 381.888H x 214.812V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
MTBF (hrs) 50,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Input Impedance / Power level 30? / 750mV
Output Connector 3.5mm stereo jack
Output Impedance / Power level 30? / 2.8V
Power
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen on Max. 25W / Max. 55W
Power saving mode Max. 4W / Max. 34W
Power button on Max. 1W / Nil
Environmental
Operating Temperature 0 to 55°C Degree
Storage Temperature -20 to 60°C Degree
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC, CE & CCC certified
Safety UL, cUL, CE / LVD & CCC certified
Environment RoHS2 & REACH compliant

The F117 series is also known as the F-117. The F117e comes with an integrated touchpad, while the F117b comes with an integrated trackball.

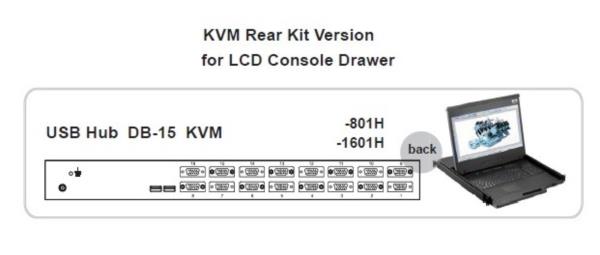

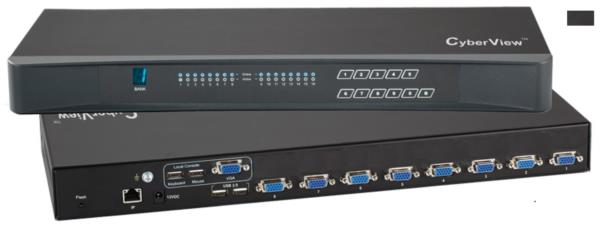

KVM Switch 801H Specifications

Mechanical
Height 1.73 in. (44 mm.)
Width 17.4 in. (443 mm.)
Depth 6.7 in. (171 mm.)
Weight 6.5 lbs. (3 kg.)
Environmental
Operating / Storage Temperature 0 to 55°C / -20 to60°C
Relative Humidity 20-90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz / 1G random vibration
Power 100~240VAC, 50/60Hz 0.5A via IEC type cord (12V / 24V / 48V DC input option)
KVM Port 8 x DB-15 combo connector
KVM Dongle Combo 2-in-1 VGA + USB KVM cable, 6, 10 or 15 feet
Local Console
DB-15 VGA 1 (up to 1920 x 1200)
USB for KB & MS 2
  None
Compatibility
Hardware Mix PCs, SUNs, MACs, IBMs, HPs, DELLs server.
Operating Systems Windows, Linux, Unix, Mac OS
Regulatory Approval FCC, CE, RoHS2, REACH

CV-801H is also known as:

  • 801H
