KSR-F119-S801e

Austin Hughes

Cyberview F119-S801 is a 1U 19" widescreen 1080P LCD console drawer with & inbuilt VGA/USB  DB-15 Combo KVM switch 8 Port. The keyboard is a 104 key notepad keyboard with touchpad.

The Cyberview F119-S801 is a 1U 19" widescreen 1080P LCD console drawer with & inbuilt VGA/USB  DB-15 Combo 8 port KVM switch. The keyboard is a 104 key notepad keyboard with touchpad.  The CV-S801 USB KVM Switch has a slim 1U form factor to provide effective assistance for administrators to control up to 8 PCs from a single Keyborad, Video and Mouse (KVM) console.

To simplify switching and control, the CV-S801 is equipped with an OSD (On-Screen-Display) menu and ability to switch targets via Hot Key sequences. Up to eight CV-S801s can be cascaded together expanding the systme capacity up to 128 computers providing the maximum flexibility for your application.


F-119 Features & Benefits:

  • 1U 19" widescreen LCD console drawer with VGA
  • Support Full HD with 1080p resolution / 16.7M colors ( 8-bit )
  • New enhanced aesthetics with molded front handle
  • Short depth design of 460mm ( 18.1" ) only
  • 104-key keyboard with either touchpad or trackball
  • SUN Micro or MAC keyboard options available
  • Front USB port for device access ( USB Hub KVM only )
  • 2 post rack mounting available
  • UL, cUL, CE, FCC, & CCC Certified



CV-S801 Features

  • Multi-platform - Mix PCs, SUN Microsystems, IBM compatibles, HP, Compaq and Dell.
  • Hot Pluggable - Add PCs or remove connected PCs for maintenance without powering down the USB KVM switch or PCs.
  • No Software is required - Easy PC selection via on screen display manual, push buttons and hot-key.
  • Local console & KVM ports support resolutions up to 1920 x 1200
  • Auto-Scan mode to monitor servers at intervals between 5 to 99 seconds.
  • Password enable & disable, with up to 8 users profiles to control access
  • Cascade for use up to 128 servers.

F119 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console
(44 x 442 x 460 mm.)
*Some options extend chassis depth to 18.9 in. ( 480 mm. )
Console w/ KVM (44 x 442 x 580 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM		 5.5 x 23.2 x 31.8 in.
(140 x 590 x 808 mm.)
Net Weight
Single Console (11.5 kg)
Console w/ KVM (12.5 kg)
Gross Weight
Single Console (16 kg)
Console w/ KVM (18.1 kg)
Mounting Distance
Single Console 18.5 ~ 27.6 inch
(470 ~ 700 mm)
Console w/ KVM 18.5 ~ 31.5 inch
(470 ~ 800 mm)
Console Ports
Video Input VGA


KB / MS Combo ( USB or PS2 )

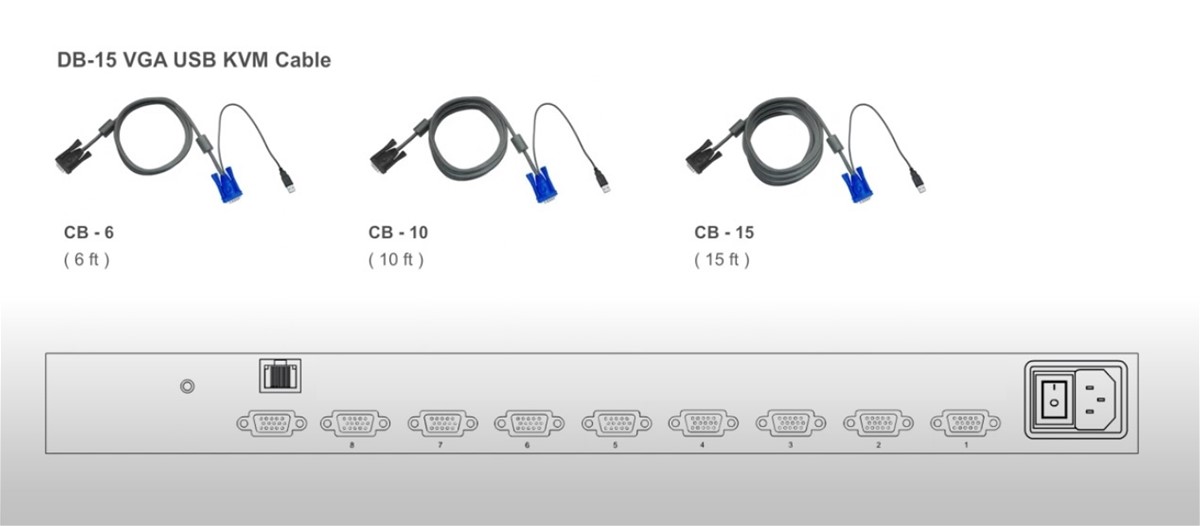

VGA console 6ft cable (CB-6)
--OR--
DVI-D console 6ft cable (CX-6)
Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A
Drawer end : DVI-D + DB-15 ( USB KB / MS )
Server end : DVI-D + USB type A
LCD Screen
LCD panel size ( diagonal ) 18.5"
Backlight type LED
Native resolution 1920 x 1080
Brightness (cd/m2) 350
Colors 16.7 M, 8-bit
Contrast Ratio (typ) 1000 : 1
Viewing angle ( L/R/U/D ) 89/89/89/89
Viewing angle (H x V) 160° x 140°
Response time ( ms ) 20
Dot pitch ( mm ) 0.1989
Display area ( mm ) 408.98H x 230.04V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
MTBF (hrs) 50,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Input Impedance / Power level 30kohm / 750mV
Output Connector 3.5mm stereo jack
Output Impedance / Power level 30kohm / 2.8V
Power
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen on Max. 14W / Max. 45W
Power saving mode Max. 2W / Max. 34W
Power button on Max. 1W / Nil
Environmental
Operating Temperature 0 to 55°C Degree
Storage Temperature -20 to 60°C Degree
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC, CE & CCC certified
Safety UL, cUL, CE / LVD & CCC certified
Environment RoHS2 & REACH compliant

The F119 series is also known as the F-119. The F119e comes with an integrated touchpad, while the F119b comes with an

integrated trackball.



CV-S801 Specifications

PC port 8
Console Port -
PC Selection OSD menu, hot key, push button
LED 1 Bank LED, 8Online LED (Green), 8 Selected LED (Red)
On screen display control Yes
Scan Intervals 5~99sec
Keyboard and mouse emulation USB
VGA Resolution (Max.) 4:3 - max. 1600 x 1200, 16:10 - max. 1920 x 1200
Cat5 Length N/A
Bandwidth 200Mhz
Cascade Level 8 levels
PC Connections 120/128
Housing Metal
KVM Switch Power Adapter DC 12V





CV-S801 KVM Hot Key Sequences:

Function Hot Key Sequence
Calling OSD Menu [Scr Lock] [Scr Lock] [Space Bar]
Right Mouse + [Esc]
Previous Port [Scr Lock] [Scr Lock] [Up]
Next Port [Scr Lock] [Scr Lock] [Down]
Previous/Next Bank [Scr Lock] [Scr Lock] + [PgUp/PgDn]
Switch to Specific Port [Scr Lock] [Scr Lock] + Bank # + Port #
Buzzer On/Off [Scr Lock] [Scr Lock] [B]
Logout (Password Security Must Be On) [Scr Lock] [Scr Lock] [P]
Advanced HotKeys (For Supervisor Login Only)
AutoScan Mode [Scr Lock] [Scr Lock] [S]
Reset Factory Defualts [Scr Lock] [Scr Lock] [R]
Disable/Enable Password Security [Scr Lock] [Scr Lock] [U]
Enable/Disable Screen Saving [Scr Lock] [Scr Lock] [L]
Remote Console HotKeys
Toggle Remote/Local Port [Scr Lock] [Scr Lock] [C]
Buzzer On/Off [Scr Lock] [Scr Lock] [Q]
AutoScan Mode [Scr Lock] [Scr Lock] [S]
Auto Adjust Video Signal [Scr Lock] [Scr Lock] [A]

CV-S801 is also known as:

  • S801
