Cat6 IP KVM Switch

Cyberview 16-port Matrix Cat6 KVM Switch ( local console + remote console x 1 + IP console x 2 )

Cyberview Matrix Cat6 KVM Switch. 16-port ( local console + remote console x 1 + IP console x 2 )

Features & Benefits

Secure IP remote user access across the internet
Efficient system management with simultaneous multi-user access
Capable of connecting 16 servers per device in 1U

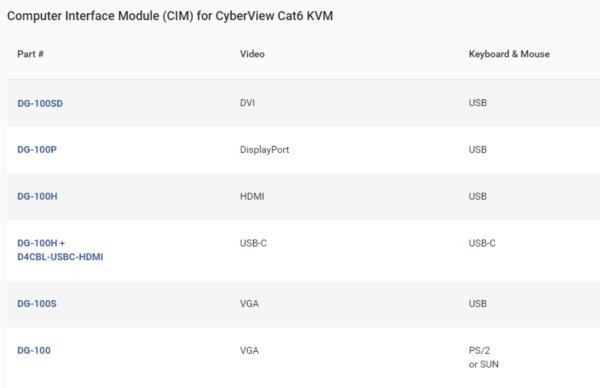

Support HDMI, DisplayPort, DVI, VGA-USB & VGA-PS/2 server interface
Up to 130 feet (40 meters) between your server & KVM switch
Enhanced Cat6 cable management with remote access over 985ft (300m)

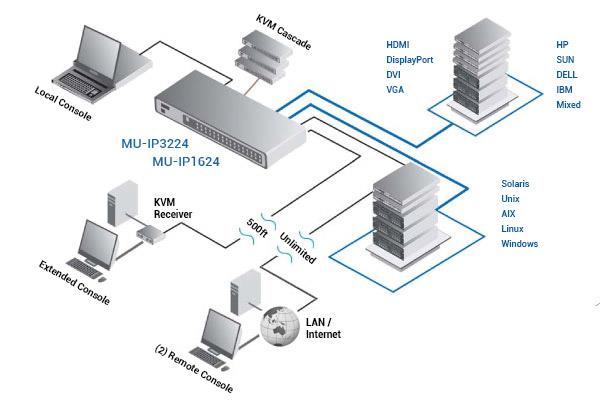

Provide a diversity of consoles to access servers independently and simultaneously
Use of the RJ45 Cat6 interface allows for a higher number of ports in smaller density
Greater distances between your switch and servers allow enhanced data center rack layouts
Multi-lingual on screen display menu
Advanced user profiles and configurable OSD hot key combinations

KVM Port	16 x RJ45 connector
KVM Connectivity	DVI-D / VGA connector dongle up to 40 m (132 ft) via Cat6 / Cat5 cable
Local Console	Nil for LCD console drawer version
Cat6 Remote Console	1x RJ45 via Cat5/Cat5e/Cat6 cable up to 500 ft DB-15-pin VGA, up to 1600x1200
Expansion	Up to 256 servers by 8-level cascade
Compatibility	Mix PCs, SUN and Mac G3 / G4 Mac / iMac Windows 7 / Vista / 2003 / XP, Linux, Unix
Power	Max. 48 Watt, Standby 5 Watt
Environmental	Operating / Storage : 0 to 50°C / -5 to 60°C Relative humidity : 90%, non-condensing Shock : 50G peak acceleration ( 11 ms, half-sine wave ) Vibration : 58~100Hz / 0.98G ( 11 ms/ cycle)
Regulatory Approval	FCC, CE

MU-IP1624 Specifications

Mechanical
Height	1.73 in. (44 mm.)
Width	17.6 in. (448 mm.)
Depth	7.1 in. (180 mm.)
Weight	9 lbs. (4 kg.)
Environmental
Operating Temperature	0 to 50°C / -5 to 60°C
Relative Humidity	90%, non-condensing
Shock	50G peak acceleration (11 ms, half-sine wave)
Vibration	58~100Hz / 0.98G (11 ms/cycle)
Power	100~240VAC, 50 / 60Hz 0.5A via AC / DC cord
KVM Port	16 x RJ45 connector
KVM Dongle	DVI-D / VGA connector dongle up to 132 ft. (40 meters) Cat6 / Cat5 cable
Simultaneous Console Access
Local	1 x DB-15 VGA (up to 1600 x 1200), 2 x USB for KB & MS
Remote (1 or 2)	1 x RJ45, up to 1000ft (300 meters) Cat6 / Cat5 cable
IP Access (1 or 2)	1 x RJ45 Ethernet, 1 x DB-9 serial & 1 x USB port
IP Security	SSL v3, RSA, AES, CSR, http & https internet access 15-user login (1 x active user)
Remote Receiver (1, 2 or 3)	1 x DB-15 VGA (up to 1600 x 1200), 2 x USB for KB & MS, 1 x KVM port for connecting to extra PC
Expansion	Support mixed DB-15 or RJ45 Matrix KVM, up to 256 servers
Compatibility	Mix PCs, SUNs, MACs, IBMs, HPs, DELLs server Windows Vista / 2003 / XP / 2000, Linux, Netware, Unix
Regulatory Approval	FCC, CE

Function	Hot Key Sequence
Calling OSD Menu	[Scr Lock] [Scr Lock] [Space Bar] Right Mouse + [Esc]
Previous Port	[Scr Lock] [Scr Lock] [Up]
Next Port	[Scr Lock] [Scr Lock] [Down]
Previous/Next Bank	[Scr Lock] [Scr Lock] + [PgUp/PgDn]
Switch to Specific Port	[Scr Lock] [Scr Lock] + Bank # + Port #
Buzzer On/Off	[Scr Lock] [Scr Lock] [B]
Logout (Password Security Must Be On)	[Scr Lock] [Scr Lock] [P]
Advanced HotKeys (For Supervisor Login Only)
AutoScan Mode	[Scr Lock] [Scr Lock] [S]
Reset Factory Defualts	[Scr Lock] [Scr Lock] [R]
Disable/Enable Password Security	[Scr Lock] [Scr Lock] [U]
Enable/Disable Screen Saving	[Scr Lock] [Scr Lock] [L]
Remote Console HotKeys
Toggle Remote/Local Port	[Scr Lock] [Scr Lock] [C]
Buzzer On/Off	[Scr Lock] [Scr Lock] [Q]
AutoScan Mode	[Scr Lock] [Scr Lock] [S]
Auto Adjust Video Signal	[Scr Lock] [Scr Lock] [A]
