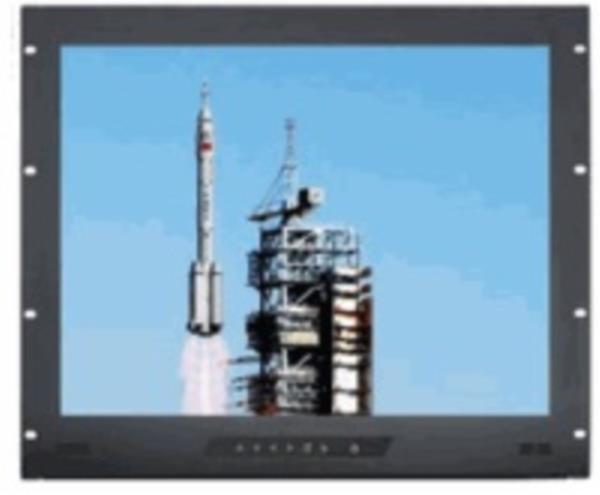

RP819 Cyberview 8U 19" Rackmount LCD Monitor unit, Inputs HDMI/VGA, provides users with a variety of choices such as wall mounting or rack mounting. This 8U 19" Rack Mount LCD unit comes with industrial grade Samsung LCD which provides users with crisp and clear image.
These rackmount LCD monitors are cost effective and save you valuable Rack space. Rackmount LCD monitor units support simple plug and play functionality.
Product Features
- Video resolution 1280 x 1024
- Ideal for CCTV security & industrial control
- Stylish 6mm cast aluminium front panel
- 19" LCD in 8U with VGA and DVI-D inputs
- Quad display optional
- Touch screen optional
- 12V, 24V and 48V DC power options available
- AV + BNC, Audio and DVI-D options available
- NEMA 4 and IP65 options for front protection available
RP819 Features
- 8U 19" rackmount LCD with HDMI/VGA input
- 1280 x 1024 native resolution / 16.7M colors ( RP-717 / RP-819 )
- 1600 x 1200 native resolution / 16.7M colors ( RP-920 )
- Ideal for CCTV security and industrial control
Available upgrades include
- 3G/HD/SD-SDI Broadcast-grade input
- MCS Multi-display control solution
- 19" Touchscreen: Captive, Resistive
- S-Video + Composite (BNC) or Audio input
- HDMI or DVI-D (Either one for AV2.2 upgrade)
- DC power: 12V/24V/48V/110~125V
- MIL-type or lockable connector
RP-819 Specifications
| Mechanical |
|

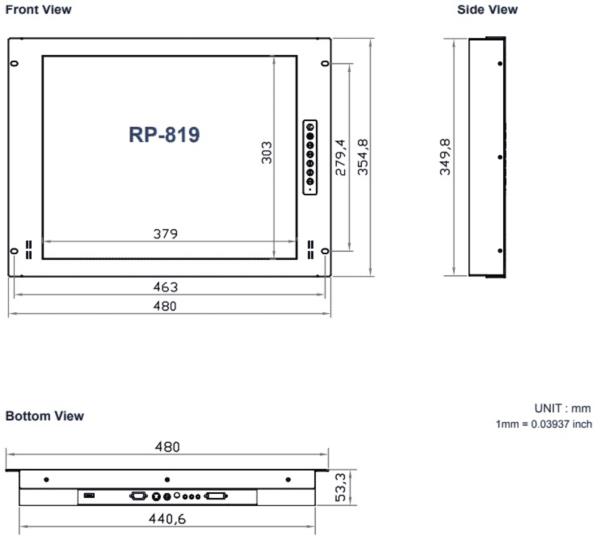

| Product Dimensions (H x W x D) |
14 x 18.9 x 2.1 in
( 355 x 480 x 53 mm ) |
| Package Dimensions (H x W x D) |
20.8 x 21.2 x 5.1 in
( 529 x 539 x 129 mm ) |
| Net Weight |
12.5 lb ( 5.7 kg ) |
| Gross Weight |
17.6 lb ( 8 kg ) |

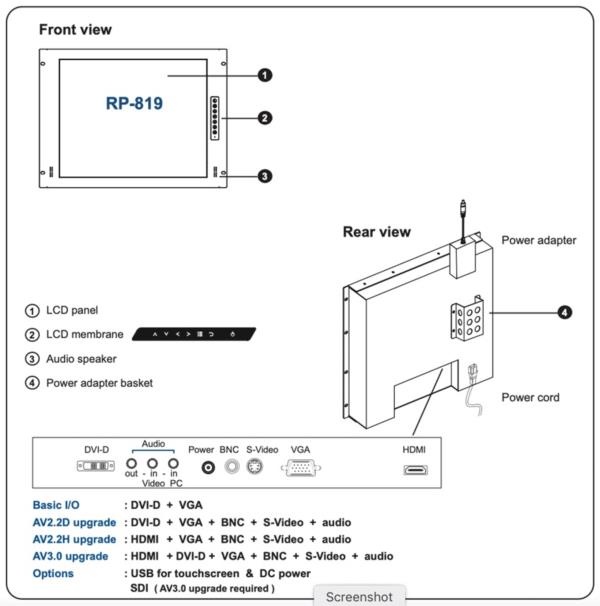

| Console Ports |
|
| Video Input |
VGA + HDMI single link |
| Video Option |
HDMI 1.2 / HDCP 1.1
Composite ( BNC ) - NTSC & PAL |
| LCD Screen |
|
| LCD panel size ( diagonal ) |
19" |
| Backlight type |
LED |
| Native resolution |
1280 x 1024 |
| Brightness (cd/m2) |
250 |
| Colors |
16.7 M |
| Contrast Ratio (typ) |
1000 : 1 |
| Viewing angle ( L/R/U/D ) |
85/85/80/80 |
| Viewing angle (H x V) |
170° x 160° |
| Response time ( ms ) |
5 |
| Dot pitch ( mm ) |
0.294 |
| Display area ( mm ) |
376.32H x 270.33V |
| Surface treatment |
Haze 25%, Hard-coating |
| Surface hardness |
3H |
| MTBF (hrs) |
30,000 |
| Audio Option |
|
| Speaker |
2x 2W (Dual Stereo) |
| Input Connector |
3.5mm stereo jack |
| Input Impedance / Power level |
30? / 750mV |
| Output Connector |
3.5mm stereo jack |
| Output Impedance / Power level |
30? / 2.8V |
| Power |
|
| Power Input |
Auto-sensing 100 to 240VAC, 50 / 60Hz |
| Power Consumption |
| Screen on |
Max. 25W |
| Power saving mode |
Max. 4W |
| Power button on |
Max. 1W |
|
| Environmental |
|
| Operating Temperature |
0 to 55°C Degree |
| Storage Temperature |
-20 to 60°C Degree |
| Operating Humidity |
20~90%, non-condensing |
| Relative Humidity |
5~90%, non-condensing |
| Operating Altitude |
16,000 ft |
| Non-operating Altitude |
40,000 ft |
| Shock |
10G acceleration (11ms duration) |
| Vibration |
10~300Hz 0.5G RMS random vibration |
| Regulatory Compliance |
|
| EMC |
FCC & CE certified |
| Safety |
CE / LVD certified |
| Environment |
RoHS2 & REACH compliant |
The RP-819 series is also known as the RP819.
