RP-K117-HDMI-SDI

Austin Hughes

The CyberView RP-K117 rack display drawer features a 17″ 4K LCD capable of up to 4K UHD (3840 x 2160) @60Hz video.  With  DP/HDMI/SDI  Video Inputs


The CyberView RP-K117 rack display drawer features a 17″ 4K LCD capable of up to 4K UHD (3840 x 2160) @60Hz video. With DP/HDMI/SDI Video Inputs.



Benefits

  • 1U 17" 4K LCD display drawer
  • 3840 x 2160 @60Hz native resolution / 16.7M colors ( 8-bit )
  • 1920 x 1080 & 1920 x 1200 resolution support
  • Display port 1.2 video input
  • HDMI 2.0 video input ( HDMI )
  • SD-SDI Broadcast-grade input ( SDI )
  • Built-in dual stereo speakers
  • Short depth design of 480mm / 18.9"
  • One Man installation design
  • Enhanced aesthetics with 2-point lock
  • 2-year standard warranty ( upgradable up to 5 years )



Options

  • DC power : 12V / 24V / 48V / 125V / 250V



CyberView RP-K117 Specifications

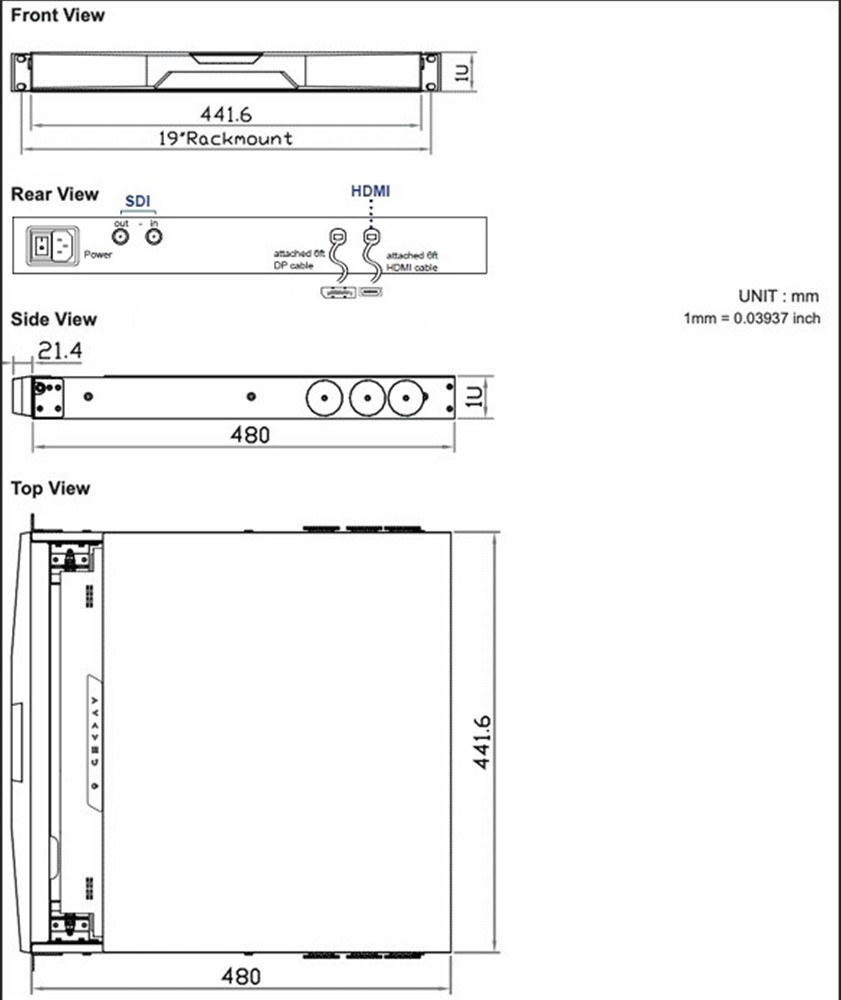

Mechanical
Product Dimensions (H x W x D) 1.73 x 17.4 x 18.9 in
( 44 x 442 x 480 mm )
Package Dimensions (H x W x D) 4.7 x 23.1 x 29.8 in
( 120 x 588 x 758 mm )
Net Weight 24.2 lb ( 11 kg )
Gross Weight 33 lb ( 15 kg )
Mounting
Rack Mounting 1U
Mounting Depth 19.3 to 28.3 inch (490 to 720 mm)

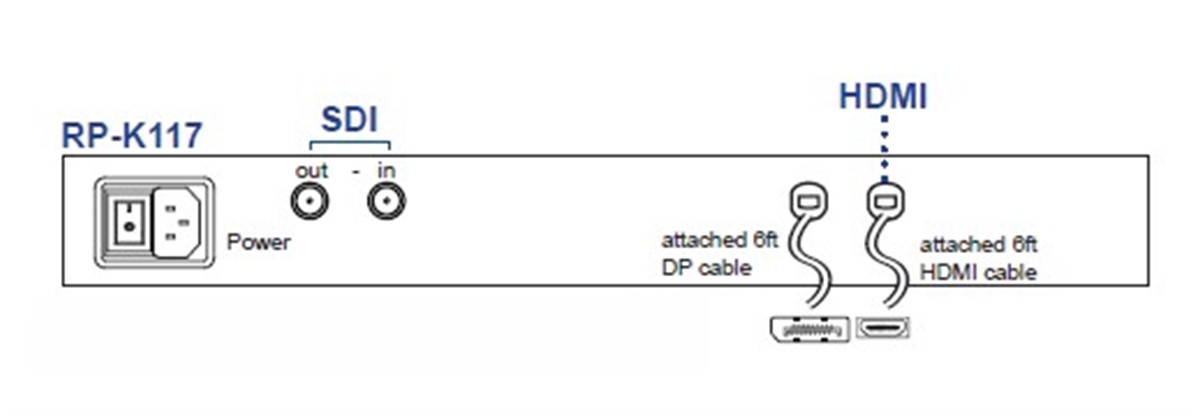

Console Ports
Video Input Display port 1.2 / HDMI 2.0 /SDI
Video Option HDMI 2.0 / HDCP 2.2
LCD Screen
LCD panel size ( diagonal ) 17.3"
Backlight type LED
Native resolution 3840 x 2160
Brightness (cd/m2) 400
Colors 16.7 M, 8-bit
Contrast Ratio (typ) 1000 : 1
Viewing angle ( L/R/U/D ) 89/89/89/89
Response time ( ms ) 30
Dot pitch ( mm ) 0.0995
Display area ( mm ) 382.12H x 214.94V
Surface treatment Anti-glare
Surface hardness 3H
MTBF (hrs) 20,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Input Impedance / Power level 30? / 750mV
Output Connector 3.5mm stereo jack
Output Impedance / Power level 30? / 2.8V
Power
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
Screen on Max. 29W
Power saving mode Max. 9W
Power button on Max. 2W
Environmental
Operating Temperature 0 to 55°C Degree
Storage Temperature -20 to 60°C Degree
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant
