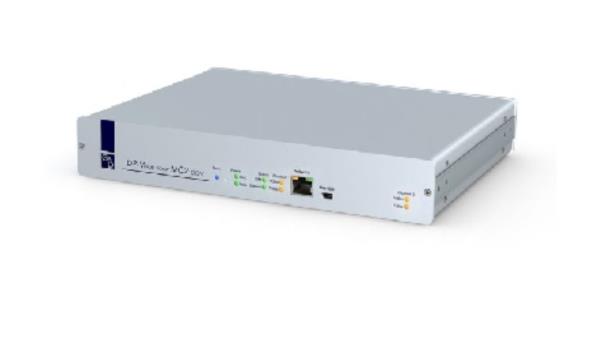

DP-Vision uses fibre optics to transmit signals up to 10,000 m. The devices use DisplayPort video and are available as variants displaying 2 video channels. It is also possible to transmit transparent USB 2.0, RS232 and audio signals. The system consists of a computer module (transmitter) and a user module (receiver) and enables you to operate a computer on a local or remote console.
Video
- Highly developed compression algorhythm of the latest generation for best video quality and latency-free transmission - The High-Dynamic-Image-Processing level 3
- DisplayPort 1.1a signals
- Resolutions per channel up to 2560 × 1600 @ 60 Hz or 4096 x 2160 @ 30 Hz (more VESA and CEA standardized resolutions within the video bandwith and the horizontal / vertical frequency are possible, e.g. 1600 x 1200 @ 60 Hz)
- Vertical frequency: 24 Hz to 120 Hz
- 24 bit colour mode
- Transparent forwarding of E-DDC information
- Single- and multi-channel variants
Operation
- At both modules console with all video channels
- via Web-Interface or OSD
- Competing or exclusive operation via local or remote workplace
Signals
- Transmission of bidirectional audio and RS232
- PS/2 and USB keyboard/mouse support
- Integrated USB 2.0 transmission with Full Speed (ARU variant)
- Transparent transmission of USB 2.0 with Hi-Speed 480 MBit/s (ARU2 variant)
- Generic USB-HID interface for connecting any HID device, e.g. touchscreens or tablets
Transmission
- Distances up to 140 meters at maximum resolution over CAT-x cable (x = 5e, 6, 7; depending on cable)
- Distances up to 400 metres at maximum resolution with multimode fiber optics
- Distances up to 5,000 (S) or 10,000 m (S+) metres at maximum resolution with singlemode fiber optics
Device
- Supports PS/2 and USB keyboard/mouse; allows mixed operation
- Permanent keyboard/mouse emulation
- Redundant, external power supply (optional)
- Ident LED helps finding the device in complex installations
- Shipped as desktop variant
