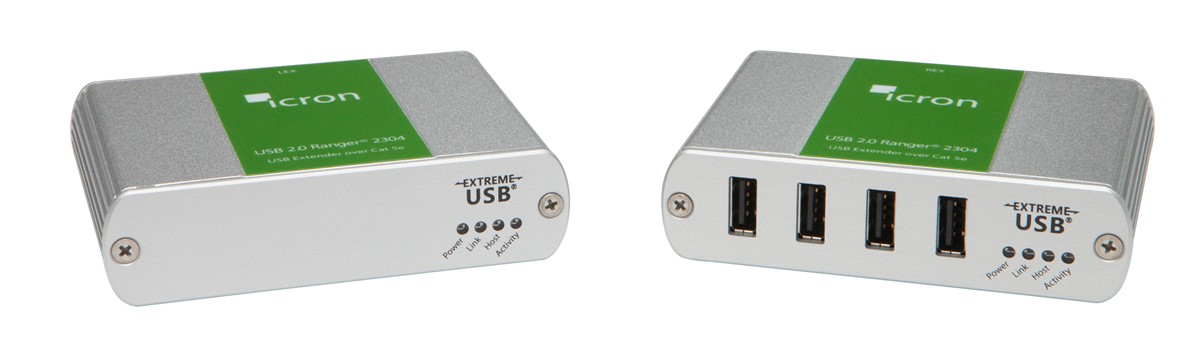

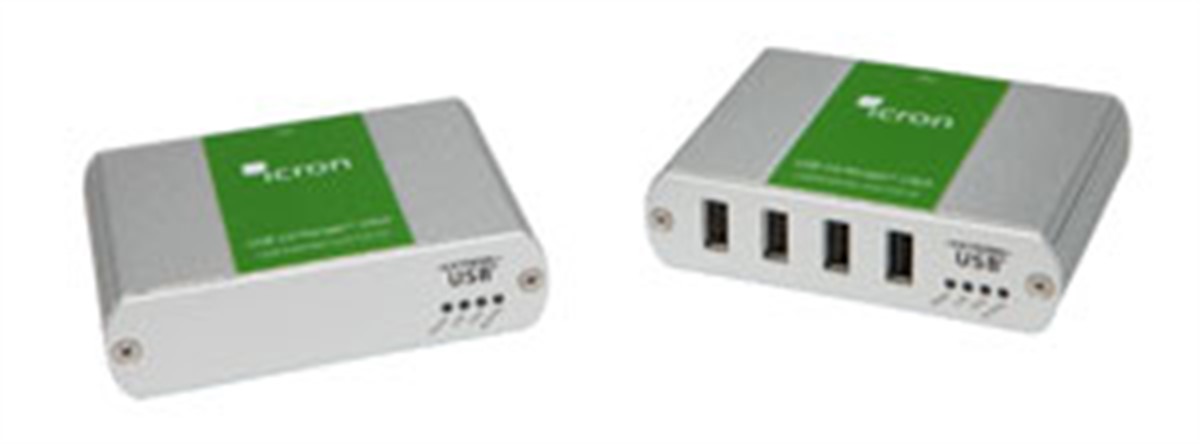

The Icron USB 2.0 Ranger® 2304 is a four port USB2 high speed Cat5 extension solution, enabling USB2 connections at up to 480Mbps over 100m/330ft of Cat5e cabling. The Ranger 2304 is the latest USB2 extender system from Icron, offering the same reliable USB2.0 extension benefits as the Ranger 2204, but with faster throughputs when using read/write devices such as external hard drives as well as supporting a greater number of connections (up to 31 devices and hubs). The Ranger 2304 provides an integrated four port remote USB2 powered hub delivering 600mA to each port supporting all USB1.1, USB2 and USB3 device types (up to 480Mbps).

The Icron USB Ranger 2304 provides true USB2.0 extension at up to 480Mbps over Cat 5e cabling, without the need of additional software drivers. A true plug-and-play solution, the Ranger 2304 is compatible with all leading operating systems, and supports all USB3.0, USB2.0 and USB1.1 peripherals such as flash drives, keyboards, mice, webcams and interactive whiteboards across a dedicated Cat5e connection. An integrated four port hub allows for extension of up to four USB devices without the need for an additional hub.


Extends USB3,0, USB2.0, and USB1.1 (both low-speed and full-speed) devices
Operates with USB3, USB2, and USB1.1 hosts
Supports all USB devices up to 480Mbps
True plug and play. No drivers required
Supports all major operating systems: Windows®, Mac OS X®, and Linux®
Uses a standard solid core Cat5e cable for easy installation
Number of devices can be increased using additional USB hubs
FCC Class B
Rugged metal enclosure

The Icron USB2 Ranger 2304 system includes:

Local Extender (LEX)
Remote Extender (REX)
2 meter USB cable
Quick Start Guide
International power adapter with country specific cord (North America, EU, UK, or Australia)
Two year warranty


Industrial Control
KVM Extension
Professional Audio-Visual
Digital Signage
Security and monitoring
Medical Device Connectivity
Security: web camera, access control

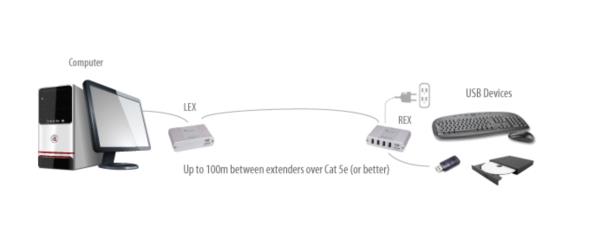

Direct connect range: up to 100m (330 ft) over Cat5e (or better) cable

USB Device Support:
Traffic Types: All USB2.0 and USB1.1
Device Types: All USB3.0, USB2.0 and USB1.1 devices

LEX unit USB connector:   1 x USB Type B

LEX unit Link connector: 1 x RJ45

REX unit Link connector:  1 x RJ45

REX unit USB connector: 4 x USB Type A

Maximum USB devices supported: 31 devices and hubs

Power supply: 100-240V AC input, 1A 24V DC Output

Current available to USB at REX: 4 x 600mA

LEX and REX unit dimensions: 100mm x 76mm x 26mm (3.9″ x 3.0″ x 1.0″)

Operating temperature range: 0°C to 50°C (32°F to 122°F)

Total system shipping weight: 870 grams (1.9 lbs.)

EMC: FCC (Class B), CE (Class B)

Environmental: RoHS2 (CE)

Warranty: 2 years
