4K HDMI KVM Extender over IP, 120m/390ft USB Extender w/ Zero Latency & 1080P@120Hz, up to 16 Sets with DIP Setting.

• 4K UHD & Zero Latency: Transmits 4K@30hz HDMI and USB 2.0 signals over a single Cat5e/6/7 cable up to 120m/390ft, with zero latency. No software or driver is required, just plug and play.
• Multi-User Control: Up to 16 sets of transmitter (TX) and receiver (RX) can work together via a standard Gigabit Ethernet switch without VLAN settings. Each TX and RX is built with a DIP switch for easy pairing.
• 3-in-1 USB Hub: Control your remote PC easily with a keyboard, mouse, touch-screen panel, or other USB 2.0 peripheral (high speed up to 480Mbps).
• High Refresh Rate: Supports 1080P@120Hz and 7.1-channel audio for a wonderful gaming experience. Works with all operating systems, like Windows, Mac, and Linux.
• High Reliability: Certificated by CE, FCC. Built-in superior surge/ESD protection. Comes with mounting ears for easy installation.
• Important Notes: This product is a KVM over IP extender kit. It doesn’t support matrix switching when working with a Gigabit switch. Please refer to 4KIPJ100/4KIPJ200 if you need an IP KVM matrix solution.

PLUG & PLAY
Works flawlessly with a universal Ethernet switch; no need to configure IGMP. Supports simple DIP setting, quite friendly to installers and end-users.


4K UHD
Transmits 4K@30hz HDMI and USB 2.0 signals over single Cat5e/6 cable up to 120m/390ft. Also supports 1080P@120Hz, ideal for extending movie or game sources.


MULTI-USER CONTROL
Deploy up to 16 sets in the same network for multiple one-to-one extension. Just toggle each DIP switch in a receiver to the same position as a transmitter for pairing.


ZERO LATENCY
There is no delay at all on end-to-end signal extension! Install it in your control center and get everything under your control!

Up to 16 sets of transmitter and receiver can work together via a standard Gigabit Ethernet switch without VLAN settings. The 4KIP100 KVM over IP extender is ideal for control centers, especially data control centers and video surveillance centers, where multiple operators can have concurrent access to their respective remote computer/server from their local console.

Important Notes before Using:
1. This product is a transmitter (TX) and receiver (RX) kit. We don’t sell them separately.

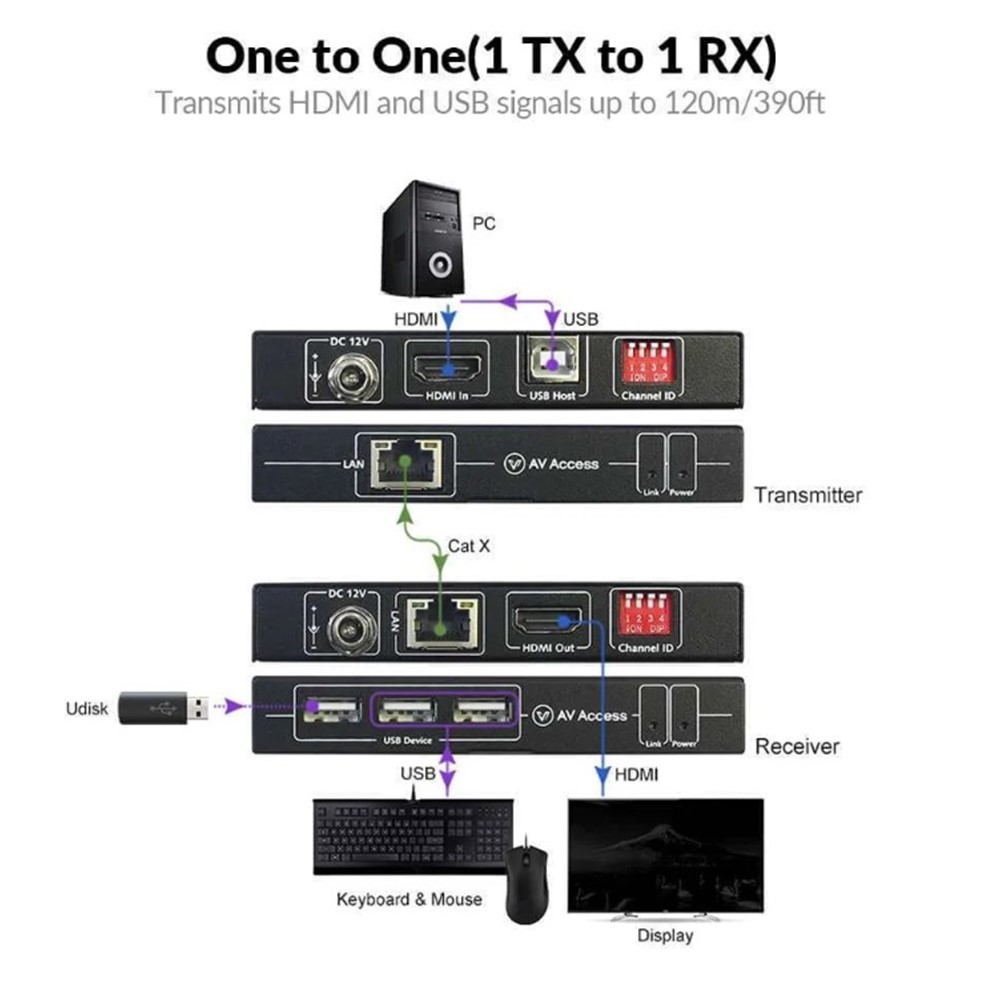

2. The product only supports point-to-point configuration, which means one TX can only be paired with one RX via the DIP switch. To provide enough bandwidth for data transmission and stable performance, a Gigabit switch is required when using one or more sets in the same network.
3. KVM switching is not supported when you use multiple sets with a Gigabit switch in the same network.
