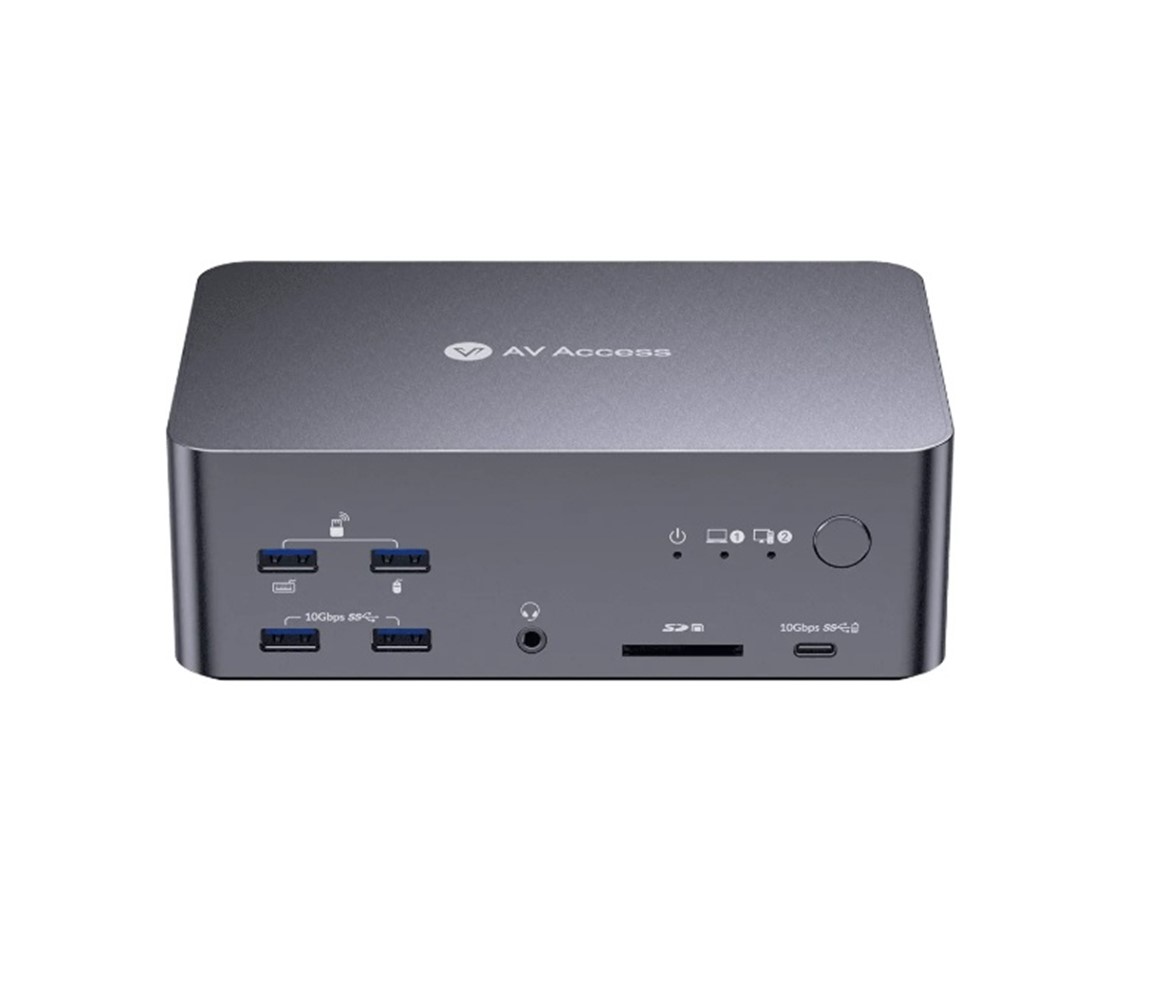

iDock B23 8K Triple Monitor KVM Switch Docking Station for a Desktop and a Laptop (100W PD), 12-in-1, 8K@60Hz/4K@165Hz/1440P@240Hz


iDock B23 8K Triple Monitor KVM Switch Docking Station for a Desktop and a Laptop (100W PD), 12-in-1, 8K@60Hz/4K@165Hz/1440P@240Hz



? A Laptop and a Desktop: Connect one laptop and one desktop, and switch between them with ease using one button.

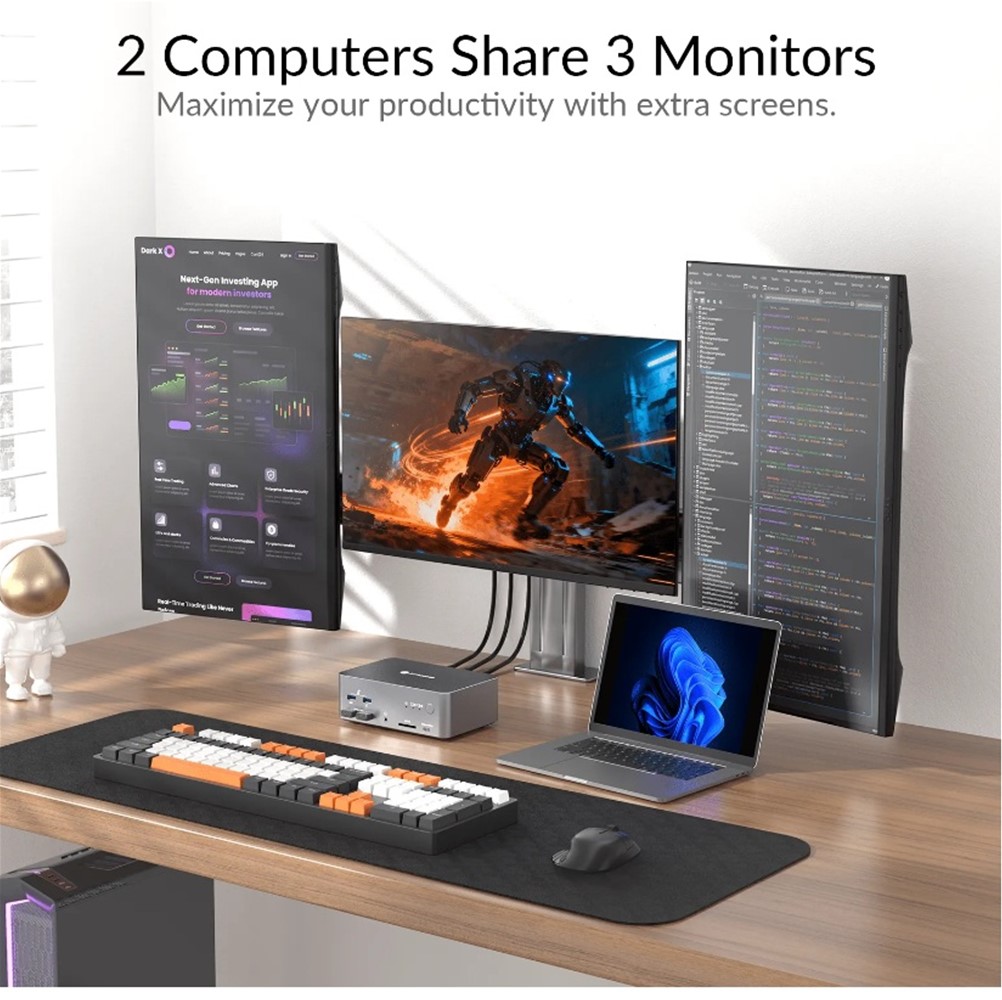

? Triple Monitor Design: Support triple monitor setups for both PCs — perfect for multitasking.
? Immersive 8K Ultra HD: Support up to 8K@60Hz for an incredible visual experience.
? Ultra High Refresh Rate: Support various high refresh rates for gaming, such as 4K@165Hz, 1440P@240Hz, and 1080P@240Hz.
? 100W Power Delivery: Keep your laptop charged with 100W power delivery via a full-featured USB-C port.

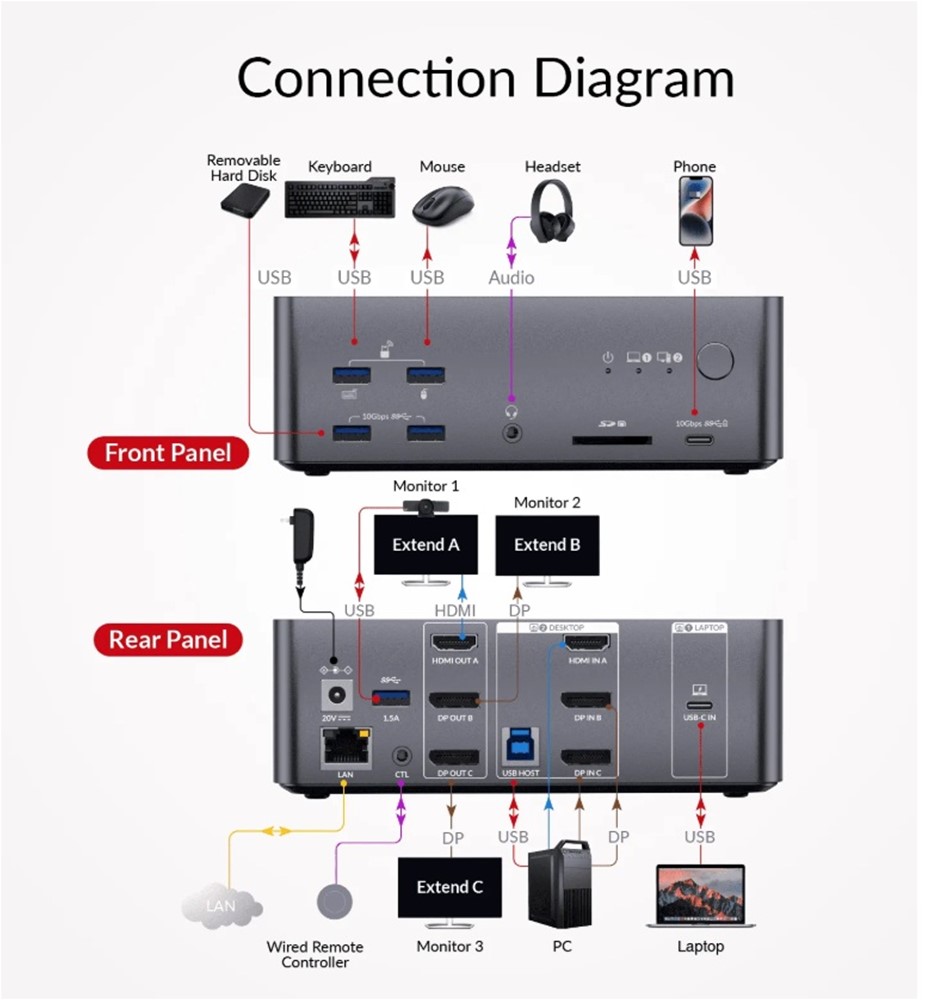

? 12 More Ports: Share peripherals between two PCs with USB-C, USB 3.0, Ethernet, audio, SD card slot, and HDMI/DP video outputs.
? Ethernet for Both PCs: Both PCs share a stable 1G Ethernet connection for uninterrupted internet access.
? Easy Switching Methods: Toggle sources via the front panel button or EXB01 remote controller (Included in the package).
? Automatic PC Wake-up: Wake up your sleeping PCs automatically when you press the switch button.

1. EDID emulation is not supported.

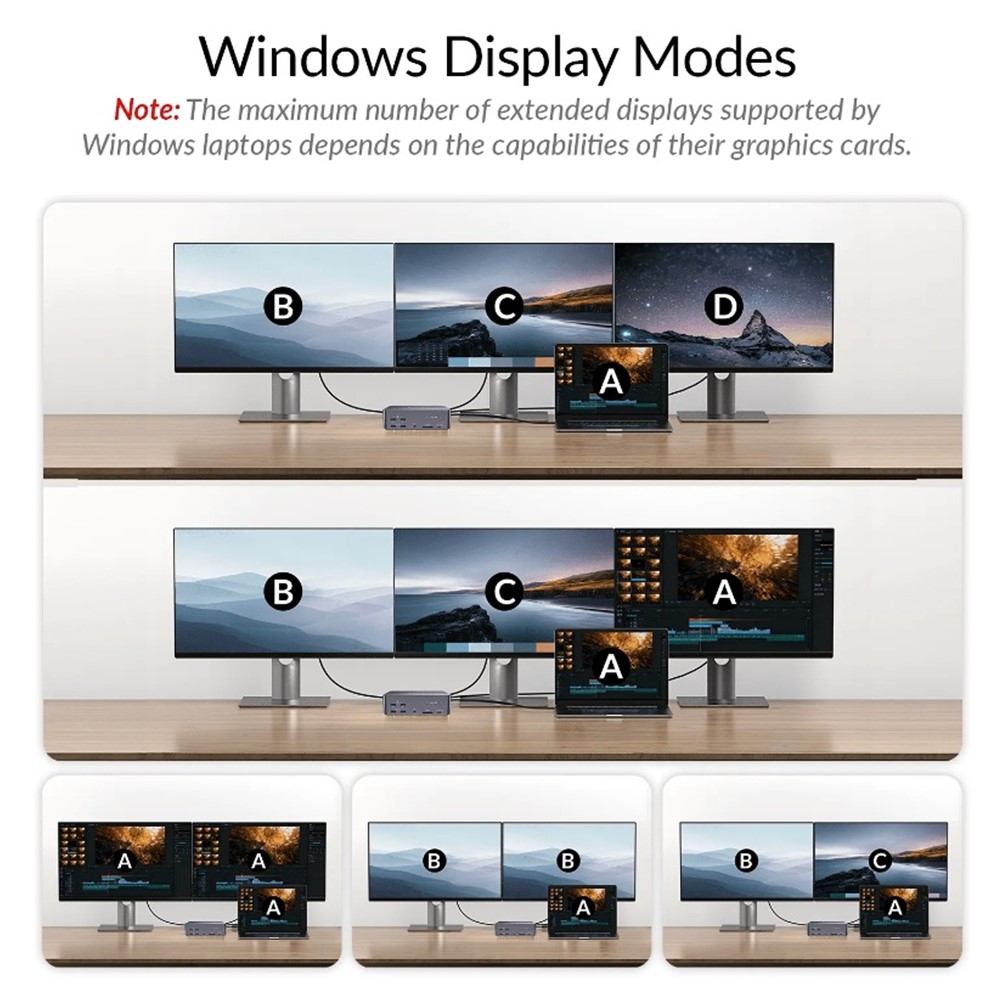

2. MacOS does not support MST and will only show duplicate screens.
3. Your desktop PC can extend to three screens at up to 8K@60Hz or 4K@165Hz. Your laptop can extend to two screens at 4K@60Hz and one screen at 4K@30Hz.
4. Use certified HDMI 2.1 and DP 2.0/1.4a cables if you need 8K@60Hz/4K@165Hz.



in the box

KVM Switch Docking Stationx 1
Power Adapter (DC 20V 6A) x 1
USB 3.0 Type-A to Type-B Cable(1.8m) x 1
DP 1.4 Cables (1.5m) x 2
USB 3.2 Gen 2Full-Featured Type-C Cable (1m) x 1
HDMI 2.0 Cable (5m) x 1
Wired Button Switch x 1
User Manual x 1





Technical
Video Input ·1 x USB-C IN (Rear panel): DP Alt mode, MST/SST, DSC, DP 1.4a

·1 x HDMI IN, 2 x DP IN: HDMI 2.1, DP 1.4a & DP 2.0

Video Output ·1 x HDMI OUT: HDMI 2.1

· 2 x DP OUT: DP 1.4a & 2.0

Peripheral and Expansion Ports · USB-C x 2:

- USB-C IN (Rear panel): USB 3.2 Gen 2 (10Gbps), supports 1Gbps Ethernet passthrough and up to100W PD charging

-  (Front panel): USB 3.2 Gen 2 (10Gbps), supports 5V/1.5A output

· USB-A x 5:

-  x 2: USB 3.2 Gen 2 (10Gbps), shared 2.5A output

-  x 1 &  x 1: USB 3.0 (5Gbps), shared 2.5A output

-  x 1 (Rear panel): USB 3.2 Gen 2 (10Gbps), supports up to 1.5A output

· USB-B x 1: USB 3.2 Gen 2 (10Gbps), supports 1Gbps Ethernet passthrough

· SDXC slot: Data rate up to 104MB/s; supports capacity up to 2TB

· LAN (RJ-45): Supports 1Gbps Ethernet passthrough

Input Resolutions · For LAPTOP: Up to 4K@60Hz

· For DESKTOP: Up to 8K@60Hz, 4K@165Hz/144Hz/120Hz

Output Resolutions Up to 8K@60Hz and 4K@165Hz
HDR Format Supported Supports all mainstream HDR formats including HDR10, HLG, HDR10+, and Dolby Vision
Audio Format Supported · USB-C IN: Fully supports multiple channel audio formats, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X

· HDMI/DP: Supports all HDMI 2.1 and DP 2.0 standard audio formats, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X

· 3.5mm Audio Jack: Stereo

Max Video Data Rate USB-C IN:  | HDMI: 48Gpbs | DP: 54Gbps (13.5Gbps per channel)
General
Operating Temperature 0°C to 45°C (32 to 113°F)
Storage Temperature -20 to 70°C (-4 to 158°F)
Humidity 20% to 90%, non-condensing
Power Consumption 17W (Max, without USB load)
Device Dimensions

(W x H x D)

168mm x 55mm x 110mm/ 6.61’’ x 2.17’’ x 4.33’’
Product Weight 0.73kg/1.61lbs

Resolutions and AWG

Resolution Input Cable Length Output Cable Length AWG
8K@60Hz ≤ 2m ≤ 2m 30AWG
4K@165Hz ≤ 2m ≤ 2m 30AWG
4K@120Hz ≤ 2m ≤ 2m 30AWG
4K@60Hz ≤ 3m ≤ 3m 30AWG

Note:

  • For optimal performance, use high-quality HDMI cables that comply with official certification standards.
  • All data were obtained under controlled laboratory conditions and may vary depending on usage environment.
