Raritan RT-DLX2-108

Raritan DLX2 8 port KVM over IP switch 1 remote, 1 local user, vir media single

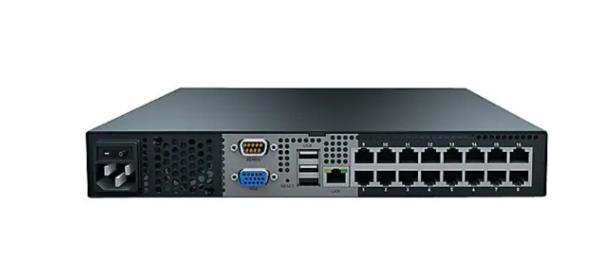

The Raritan Dominion LX DLX2-108 is a 8-port KVM-over-IP switch that gives access to one remote user, in addition to an independent local access port, BIOS-level access, control of 8 servers, while providing virtual media with single power and single LAN..

$1,790.00 RRP (inc GST)
Login for Reseller Pricing

28 Days

Quantity
click to enlarge

The Raritan Dominion LX DLX2-108 is a 8-port KVM-over-IP switch that gives access to one remote user, in addition to an independent local access port, BIOS-level access, control of 16 servers, while providing virtual media with single power and single LAN. By cascading multiple Dominion LX2 switches, users can manage up to 256 computers from a single console. This product offers efficient and reliable server management with secure remote access from anywhere, server diagnostics with restore capabilities, and an economical footprint.

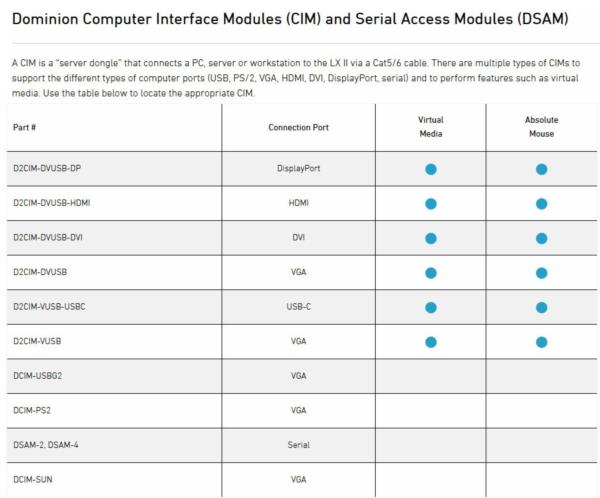

Note: D2CIM-VUSB or D2CIM-DVUSB required for virtual media

The New Raritan Dominion LX2 Series Features:

  • Local and remote access
  • Security and encryption features
  • Directory administration
  • Multi-language support
  • Modern architecture platforms with high definition (HD)
  • 1920x1080 remote video resolution
  • BIOS-level access and control
  • Universal Virtual Media
  • Absolute Mouse Synchronization
  • RADIUS, LDAP and Active
  • Tiering capability for management of up to 256 computers from a single console
  • Multiplatform support: Windows, Macintosh, Linux, and Sun/Solaris
  • Flexible CIM options: USB, Dual USB, Universal Virtual Media/Absolute Mouse Synchronization, PS2, Sun, Serial Devices

Raritan Dominion LX DLX2-108 Specifications:

Mechanical
Height 1.73 in. (44mm.)
Width 10.63in. (270 mm.)
Depth 11.45in. (291mm.)
Weight 9.48 lbs. (4.3 kg.)
Form Factor 1U, rackmount brackets included
Environmental
Operating Temperature 32F to 104F (0C to 40C)
Power
Operating Voltage Single power, 100-240V AC, 50-60 Hz, 0.5A
Remote Connection
User 1 local user and 1 remote user
Network Single 10/100/1000 gigabit Ethernet Access (RJ45) dual-stack: IPv4 and IPv6
Modem Port Integrated 56K V.90 (RJ11 port)
Protocols TCP/IP; HTTP; HTTPS; UDP; RADIUS; SNMP; DHCP; PAP; CHAP
Local Access Port
Video HD15(F) VGA
Keyboard/Mouse Mini-DIN6(F) PS/2 and USB (F);
1 USB front; 3 USB rear
Sample Video Resolutions
PC Text Mode 640x350, 640x480, 720x400
PC Graphic Mode 640x480, 800x600, 1024x768, 1152x864, 1280x1024, 1440x900, 1680x1050,1600x1200, 1920x1080
Sun Video Mode 1024x768, 1152x864, 1152x900, 1280x1024
Warranty Two Years with Advanced Replacement* Guardian Extended Warranty Available
CIMs and Cat5 Cables

Dominion CIMs: Available for USB, Dual USB, Universal Virtual Media/Absolute Mouse Synchronization, PS2, Sun, Serial Devices Cat5 MCUTP Cables: KVM UTP cable for PS/2, USB, Sun. lengths from 2ft. (6m) to 20 ft. (6m): Specifications: RJ45 <-> HDB-15M, mini-din 6 x 2 (PS/2), USB type A (USB/Sun)
