The ADDERView CATx 1008 is a high density, small form factor, secure KVM via CATx switch that provides local and remote access for a user that wishes to control up to 16 multi-platform servers.


A ‘plug-and-play’, 1U appliance, the ADDERView CATx 1000 is a completely self-contained system that installs in minutes combining high security, flexibility, integrated power control, faultless quality video and CD quality audio.

USB keyboard and mouse control

Any USB style keyboard and mouse (PC, Mac or Sun) can be used to control the ADDERView CATx 1000 switch. Full keyboard re-mapping is supported to ensure seemless cross platform functionality

Faultless video quality
The ADDERView CATx series provides exceptionally high video performance to local and remote users alike, supporting up to 1920 x 1200 resolutions with DDC emulation which is further enhanced by DC balancing to ensure full and true colour

True multi-platform support
The ADDERView CATx 1000 supports any computer platforms with PS/2, USB and Sun keyboard and mouse interfaces. Country code reporting, DDC and continuous keyboard and mouse emulation ensure faultless operation

Easy cascade
Expand simply by using just CATx cable to link units. The ADDERView automatically detects cascade connections to support up to 256 computers

Optional CD quality audio
ADDERView CATx 1000 switches support CD quality 44.1kHz digital stereo audio when optional audio enabled CAM modules are used

Options port
Integration with RS232 controlled power switches to provide a complete hard reboot function
Flash upgrade
Sync with other CATx 1000 switches for multi-video applications
Upload/download CATx 1000 user and host information

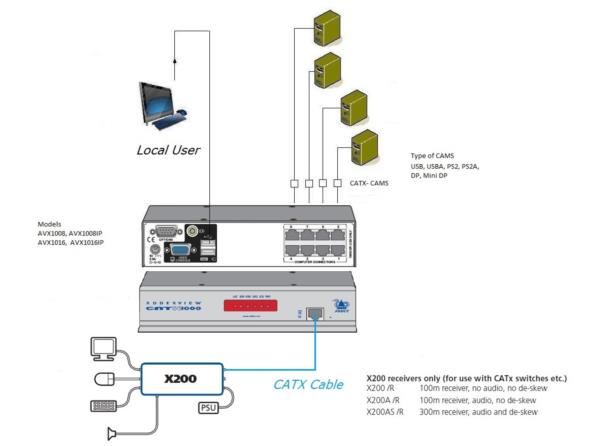

Remote control

Integrated CATx extender
The ADDERView CATx 1000 can be controlled by a user from up to 300m away over CATx cable using an ADDERLink X200 or X100 receiver and the integrated CATx extender

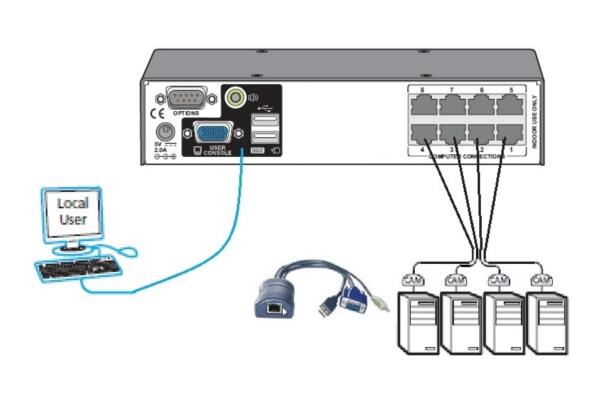

Computer Access Modules
Flash upgradeable CAMs are available for PS/2, USB and Sun keyboard and mouse support with optional audio

Standard Transmission Distance
KVM communication from switch to target devices (e.g. Servers) up to 100 feet (30.5m) at 1280x1024 or 33 feet (10m) at a full resolution of 1920x1200

Rack mount / rack drawers
One or two CATx 1000 switches can be mounted in 1U of rack height giving a maximum of 32 ports per U. The small size also makes the units ideal for mounting behind KVM rack drawers

User access control
Up to 16 different user profiles can be created and access rights for each user can be defined

Embedded KVM option
CATx 1000 technology is available in for embedding within other equipment such as rack drawers and industrial equipment



Available with the following connectivity options:

Go to Adder Computer Access Modules (CAM)
