Adder AVX5016IP-AUS

ADDERView 5016IP Catx KVM Switch - 1 Local, 4 Digital VNC KVM over IP to 16 Computers

The ADDERView AVX5016 IP is the culmination of ADDER's KVM over IP expertise to date. This new device offers 4 non blocking simultaneous IP connections together with a local port (5 separate users), and allows the user to control 16 separate devices. The AVX5016 IP is very small and compact enabling you to fit two units side by side to support 32 computers and 10 sessions in just 1U of rack space..

$2,905.00 RRP (inc GST)
Login for Reseller Pricing

7 Days From Order

Quantity
click to enlarge

AVX5000IP - High density fully featured USB, and Video contol for local, remote and global users.

The ADDERView AVX5016 IP is the culmination of Adder's KVM over IP expertise to date. This new device offers 4 non blocking simultaneous IP connections together with a local port (5 separate users), and allows the user to control 16 separate devices. The AVX5016 IP is very small and compact enabling you to fit two units side by side to support 32 computers and 10 sessions in just 1U of rack space.

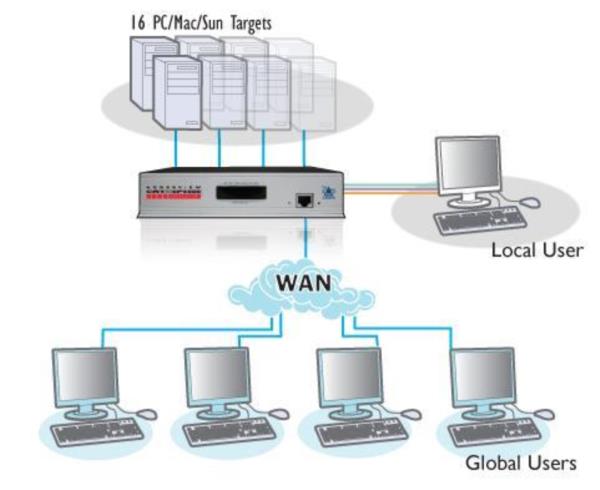

4 simultaneous IP users

Allows 4 simultaneous global users to connect via IP to any of the 16 connected devices.

Local user support

Direct connection for 1 local user to connect straight into the switch.

LDAP integration

Authenticate users against your existing LDAP infrastructure. This feature can be enabled and disabled.

RS232 control

Integrated RS232 gives you the ability to control other external devices such as power management devices.

Ecopulse circuitry

Ecopulse powers down unnecesary circuits when not required to reduce power requirements. Over the life of the product this will save significant power resources.

Encryption and Authentication

This enterprise grade KVM over IP switch employs AES128 bit encryption and RSA2048 authentication ensuring your control system remains secure at all times.

Configuration

The AVX5016 IP allows you to configure 16 separate users internally with unique access privileges all of which are stored within the switch.

Open Arhitecture

ADDER's continuous improvement policy further ensures your system against future hardware changes - ADDER offers free firmware updates for the life of the product. Furthermore, ADDER's open architecture design philosophy will not tie you in to specific manufacturer's equipment.

ADDER.net

Network management software, automating the task of managing your network control hardware.

Available with the following class leading connectivity options:



DisplayPort CAM

DisplayPort CAM - NEW
CATX-DP-USBA: DisplayPort CAM with USB and Audio
CATX-MDP-USBA: Mini DisplayPort CAM with USB and Audio

Serial Cam

Serial CAM NEW
CATX-CONSOLE: Serial connectivity to your target machines (only works from AVX5016IP)

PS/2 CAMs
CATX-PS2 - PS/2 only
CATX-PS2-A - PS/2 plus audio
USB CAMs
CATX-USB - USB only
CATX-USB-A USB plus audio
Sun CAM
CATX-SUNA - Sun plus audio

Video modes

Support for standard PC, Sun and Mac video modes up to a resolution of 1920 x 1200 @ 60Hz (including Full HD - 1920 x 1080). DDC emulation supported via connected Computer Access Modules (CAMs).
Product includes an in-built DDC EDID configurator that enables you to control the resolutions that you wish to support.

Hardware compatibility

Video, mouse and keyboard for PC, Sun, Mac, RS/6000, Alpha and SGI computers using PS/2, USB or Sun flash upgradable Computer Access Modules (CAMs).

O/S compatibility

Operates with all currently known software and operating systems including all Windows versions, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.

Local console

Video: HDD15 socket
Keyboard/Mouse: USB type A sockets

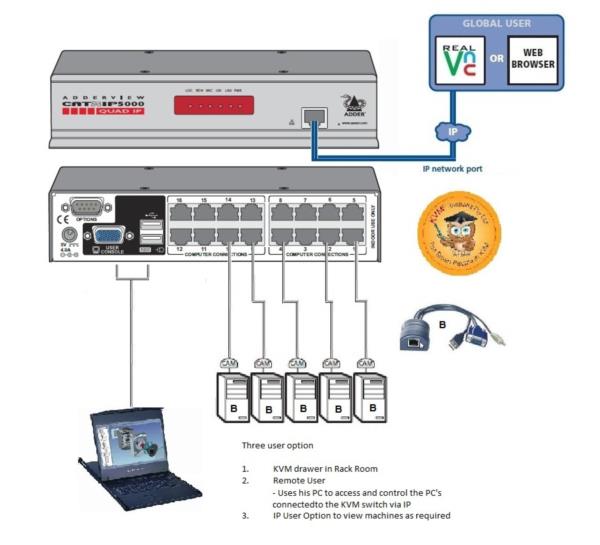

Connections

Local console connections as stated above.
CATx computer connections: all RJ45 style.
10/100 auto-sensing Ethernet network port: RJ45.
Power connection: 2.5mm DC jack (5V DC, 2.5A).
RS232 triggered power switching and syncing: DB9 plug

Physical design

Compact 1U high metal case construction suited for rack mounting (rack mount kits available).
Width: 198mm/7.92", Height: 44mm/1.76", Depth: 120mm/4.8".
Weight: 0.77kg/1.70lbs.

Power supply

Mains adaptor with IEC style power lead (included).
Input: 100-240VAC 0.5A 50-60Hz
Output: 5VDC 2.5A

Operating temperature

0° C - 40° C (32° F to 104° F)

Approvals

CE, FCC

Additional accessories

 PS/2 CAMs
CATX-PS2 - PS/2 only
CATX-PS2-A - PS/2 plus audio

USB CAMs
CATX-USB - USB only
CATX-USB-A USB plus audio

DP CAMs
CATX-DP-USBA
CATX-MDP-USBA

Sun CAM
CATX-SUNA - Sun plus audio

Console CAM
Connectors: D-Sub 9-way female: CATX-CONSOLE

Single unit rack brackets (includes four screws): RMK4S
Double unit rack brackets (includes twelve screws): RMK4D
