Adder X-USBPRO-MS2-AUS

ADDERLink VGA, USB & Audio KVM Extender Tx/Rx up to 300mt, Multi Screen

ADDERLink X-USB PRO Adder's next generation USB, video and audio extender delivers sharp, bright and high resolution VGA video images and high quality audio at distances up to 300m (1000ft) over a single CATx cable. Multi Screen. The ADDERLink X-USB PRO has been designed to provide industry-leading video clarity, compatibility and high rack densities.

$2,485.00 RRP (inc GST)
Login for Reseller Pricing

In Stock

Quantity

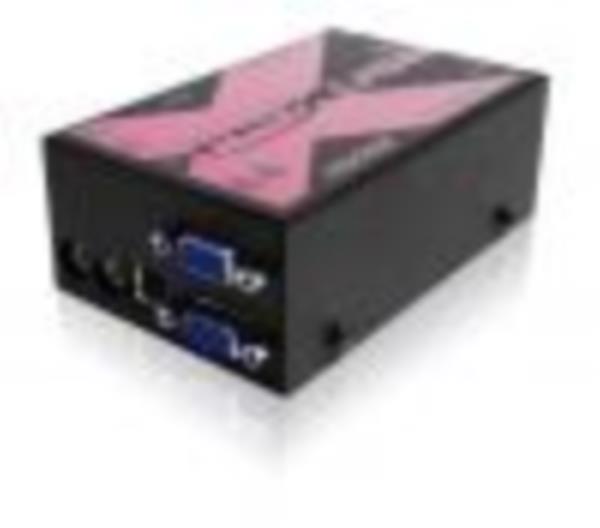

click to enlarge

Adder's next generation USB, video and audio extender delivers sharp, bright and high resolution video images and high quality audio for multi screen desktops at distances up to 300m (1000ft) over CATx cables. The ADDERLink X-USB PRO MS has been designed to provide industry leading video clarity, compatibility and high rack densities.

Video Resolution
Video resolution up to1920x 1200at 60Hz

FEATURES:

Video
VGA resolutions of 1920 x 1200 are achievable at 300 meters (1000ft). This is achievable by including a variable noise filter which overcomes issues introduced by increased gain as the length of the cable increases over 200 meters.

Video compensation
A Multi-pole compensation technique is used enable superb video quality at maximum distance over a single cable. For the first time, adjustment can be made for cable type and cable length with further color skew compensation and gain adjustment to ensure crystal clear images, all from the receiver’s keyboard.

Local feed through port
A local feed trough port is provided for audio and video so a local console can be used

USB powered Transmitter
The transmitter is powered via its USB port to reduce the need for external supplies. There is an option for an external power supply if the USB port has insufficient power.


Dual user configuration
Two X-USB PRO units can be linked to a single computer so two users can access the system. When using two sets of X-USB PRO modules to allow two users to access a single computer the
arbitration between the users is handled by the USB sub-system of the computer. This means that both users can control the computer at exactly the same time and the resulting keyboard and mouse influences will be an amalgam of the two inputs.


Emulated 2 page DDC EDID
This extender supports full two page DDC EDID. Some high performance video cards require the two page data or they will not deliver optimal performance.

USB support
The X-USB extends USB 2.0 (low and full speed) allowing all USB compatible accessories (including isochronous devices) to be extended. The receiver unit has a built in 4 port USB hub to enable a complete desktop to be located remotely, including a keyboard, monitor, mouse, disk drive, flash memory stick, webcam, and any other device that would normally be plugged into your computer’s USB port.

Audio
Audio transmission delivers CD quality stereo audio for speakers.

Rack options
Both transmitter and receiver units can be used stand-alone or up to 16 units can be mounted into a 2U chassis

Video Resolution

Video resolution up to1920x 1200at 60Hz

Skew Compensation

62ns de-skew with 2ns resolution (1/4 pixel at 1600x1200)

Extension Distance

200 meters using CAT5 Trunk cable
250 meters using CAT5e Trunk cable
300 meters using CAT6 Trunk cable
300 meters using CAT7 Trunk cable
200 meters using CAT7a Patch cable

Audio (end to end)

2 channel 16 bit Audio @ 44.1 KHz THD+N typically -80dB at 1kHz SNR typically 85dB at 1kHz

O/S Compatability

Operating system independent

Connectors (local / remote)

Local: 4 x 15 Pin D Type VGA, 1 x USB B, power jack, 2 x 3.5 mm jack socket and 2 x RJ45

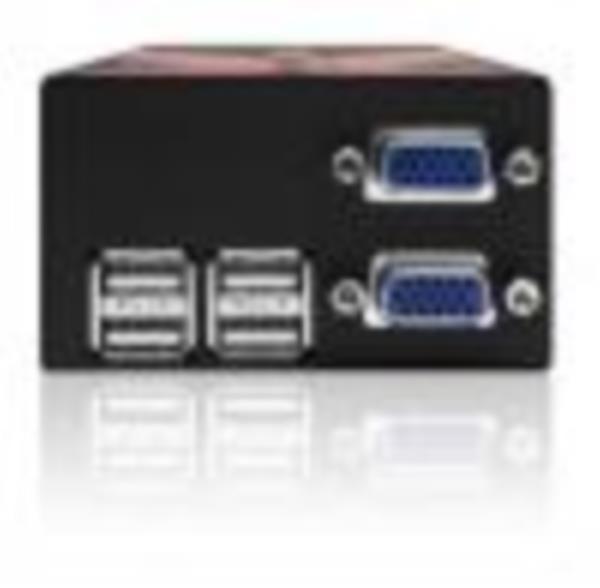

Remote: 2 x 15 Pin D Type VGA, 4 x USB A, power jack, 3.5mm jack socket and 2 x RJ45

Physical Design

Local: All metal case, 122mm / 4.7’’ (w) x 75mm / 3’’(d) x 48mm / 2’’ (h) 500g / 1.1 lb.
Remote: All metal case, 162mm / 6.4’’ (w) x 75mm / 3’’(d) x 48mm / 2’’ (h) 650g / 1.4 lb.

Power

100 - 240VAC, 50/60Hz input – 5V, -12W output for bth local and remote

Operating Temperature

0ºC to 40º / 32ºF to 104ºF

Approvals

CE, FCC
