KVM-CV-801K

Austin Hughes

Cyberview CV-801K is a single-user, 8-port, 4K KVM with support for HDMI, DVI, DisplayPort enabled servers.  Makes an attractive solution to control your ultra high-def HDMI, DVI & DisplayPort sources at up to 3840x2160 (60Hz) resolution.

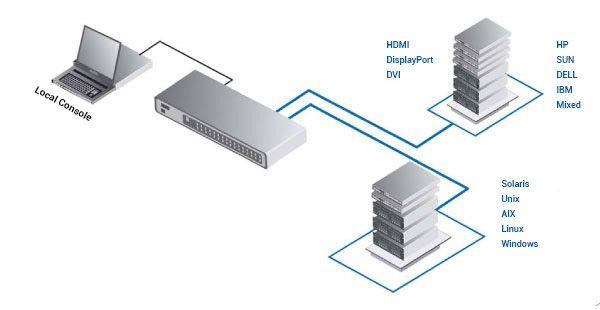

The Austin Hughes Cyberview CV-801K is a single-user, 8-port, 4K KVM with support for HDMI, DVI, DisplayPort enabled servers. The CV-801K features a slim, rack mountable 1U chassis (mounting set w/ bracket & screws included) and allows an administrator to control up to eight servers from one keyboard, mouse and monitor setup.

Mix and match operating systems with this multiplatform KVM to control PC, Mac and Sun servers running Windows 10, OSX and Linux. With the native KVM cables, the CV-801K makes an attractive solution to control your ultra high-def HDMI, DVI & DisplayPort sources at up to 3840x2160 (60Hz) resolution.

CV-801K Features & Benefits

  • 4K UHD KVM with 8 source ports
  • 1U Rack Mountable or Standalone
  • KVM KVM cables support DP, HDMI, & DVI-D video input
  • Local console & KVM ports support resolution 4K, 2K and 1080p
  • Multi-platform for PC, server, blade server & SUN / MAC
  • Port switching via front button & keyboard hotkeys
  • Hot pluggable, no software or drivers required

Mechanical
Product Dimensions (W x D x H) 17.4 x 6.7 x 1.73 inch (443 x 171 x 44 mm)
Package Dimensions (W x D x H) 19.7 x 15.7 x 3.5 inch (500 x 400 x 90 mm)
Net Weight 5.5 lb (2.5 kg)
Gross Weight 11.9 lb (5.4 kg)
Chassis Color Dark
Chassis Materials Steel
Environmental
Operating Temperature 32 to 131°F (0 to 55°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Humidity 20-90%, non-condensing
Storage Humidity 5-90%, non-condensing
Operating altitude 16,000 ft
Non-operating altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Power Auto Sensing 100~240VAC, 50/60Hz (12V / 24V / 48V DC input option)
Power Consumption Max. 10W
KVM Port 8 x HDMI 1.4 + USB-B (Video + KB / MS)
KVM Ports 8
Connections HDMI 1.4 + USB-B (Video + KB / MS)
Resolution
Aspect Ratio Resolution
16 : 9 Max. 3840 x 2160@60Hz
16 : 10 Max. 1920 x 1200@60Hz
4 : 3 Max. 1600 x 1200@60Hz
Local Console
Video 1 x HDMI 1.4
Keyboard / Mouse 2 x USB-A
Resolution
Aspect Ratio Resolution
16 : 9 Max. 3840 x 2160@60Hz
16 : 10 Max. 1920 x 1200@60Hz
4 : 3 Max. 1600 x 1200@60Hz
Expansion Support mixed Combo Cat6 or Combo DB-15 KVM, up to 256 servers
Compatibility

Hardware HP / IBM / Dell PC, Server and Blade Server
SUN / Mac
Operating Systems Windows / Linux / Unix / Mac OS
Regulatory Approval FCC, CE, RoHS2, REACH
