RP-X117

Austin Hughes

The RP-X117 is a 1U 17" widescreen rackmount LCD monitor  with features such as a built in LCD OSD to provide effective assistance for an administrator to control multiple PCs.

The RP-X117 is a 1U 17" widescreen rackmount LCD monitor  with features such as a built in LCD OSD to provide effective assistance for an administrator to control multiple PCs. The RP series provides a cost effective rackmount monitor solution for your limited IT budget in a space saving, highly customizable package.

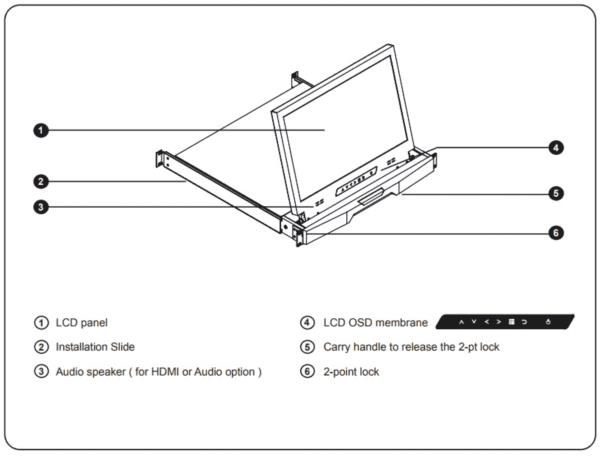

Drawer Features and Dispaly Benefits

  • 1U 17" widescreen LCD drawer with DVI-D / VGA input
  • 1920 x 1200 native WUXGA Ultra high resolution
  • Support Full HD with 1080p resolution
  • PIP & Picture by Picture viewing efficiency
  • Green LED-backlit panel technology
  • Enhanced aesthetics with molded front panel and two point lock
  • Short depth design of 480mm ( 18.9" ) only



Options

  • HDMI 1.3 video input
  • 3G / HD / SD-SDI Broadcast-grade input
  • Audio Input & Output
  • DC power : 12V / 24V / 48V / 125V
  • Touchscreen : Resistive 1-pt

For Multi-display control, DC power, SDI, and touchscreen options please call 1-877-586-6654.

RP-X117 Package Contents

CyberView RP-X117 Package Contents
  • (1) RP-X117 Rack Monitor Drawer
  • (1) 6ft VGA cable
  • (1) Power cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-year standard warranty

RP-X117 Specifications

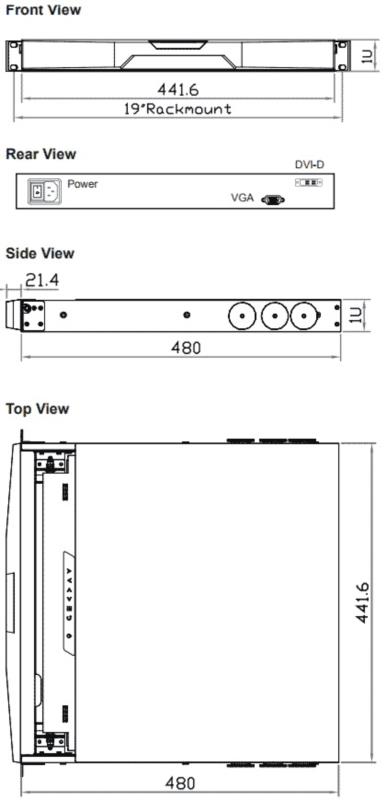

Mechanical
Product Dimensions (H x W x D) 1.73 x 17.4 x 18.9 in
( 44 x 442 x 480 mm )
Package Dimensions (H x W x D) 4.7 x 23.1 x 29.8 in
( 120 x 588 x 758 mm )
Net Weight 24.2 lb ( 11 kg )
Gross Weight 33 lb ( 15 kg )

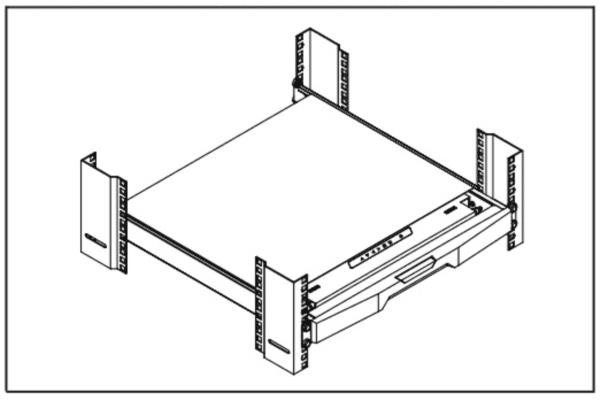

Mounting
Rack Mounting 1U
Mounting Depth 19.3 to 28.3 inch (490 to 720 mm)
Console Ports
Video Input VGA + DVI-D single link
Video Option HDMI 1.3 / HDCP 1.3
LCD Screen
LCD panel size ( diagonal ) 16.2"
Backlight type LED
Native resolution 1920 x 1200
Brightness (cd/m2) 300
Colors 16.7 M, 8-bit
Contrast Ratio (typ) 800 : 1
Viewing angle ( L/R/U/D ) 89 / 89 / 89 / 89
Response time ( ms ) 30
Dot pitch ( mm ) 0.191
Display area ( mm ) 343.8H x 214.9V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
MTBF (hrs) 20,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Input Impedance / Power level 30? / 750mV
Output Connector 3.5mm stereo jack
Output Impedance / Power level 30? / 2.8V
Power
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
Screen on Max. 34W
Power saving mode Max. 4W
Power button on Max. 1W
Environmental
Operating Temperature 0 to 55°C Degree
Storage Temperature -20 to 60°C Degree
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant
