KD-E30 KVM Switch Docking Station for 2 Desktops & 1 Laptop, Dual 4K HDMI Monitors, 100W USB C Charging, EDID, 10-in-1 USB C Dock, 1G Stable Internet.
? Switch Between 2 Desktops & 1 Laptop: Connect 1 laptop and 2 desktops and switch fast on dual screens.
? Dual 4K@60Hz Displays: Supports dual 4K@60Hz outputs for sharp and detailed visuals.
? 100W Laptop Charging: Power your laptop through the full-featured USB C port with up to 100W charging. (Requires your laptop’s original power adapter, not included.)
? EDID Emulation: Maintains consistent monitor connections with your PC. No more desktop reshuffling after switching.
? 10-in-1 Docking: USB C, USB 3.0, USB 2.0, audio jack, and more in one hub.
? 1G Ethernet: Enjoy fast, stable wired network access on your laptop through the USB C port.
? Smart Wake-Up & Power Saving: Automatically wake PCs from sleep when switching, and save energy with the one-touch power button.
Ultimate 3-PC Dual Monitor KVM Docking Station
Switch Instantly, Stay Productive
Dual 4K Monitors,
Triple Device Control

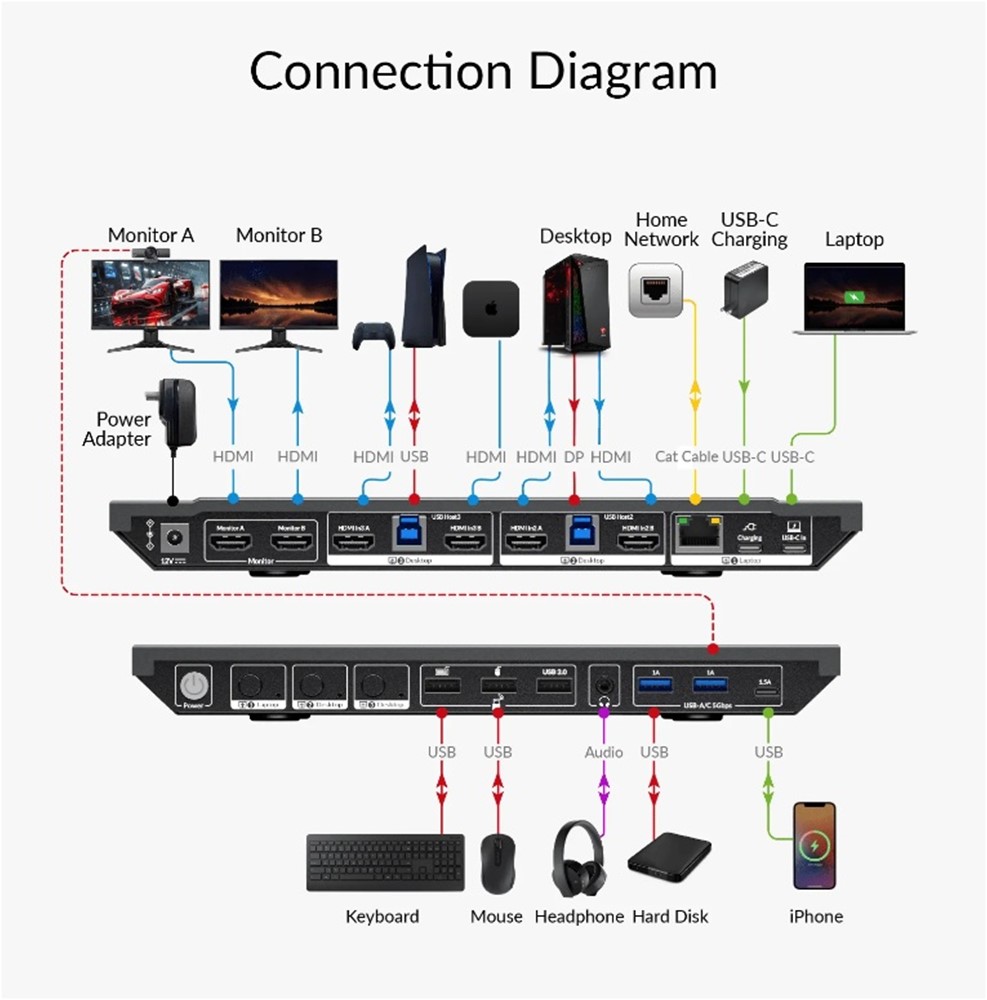

Connect 1 laptop and 2 desktops to dual 4K@60Hz displays. Switch with ease and enjoy crystal-clear visuals on both screens for gaming, work, or creative projects.
Stay Connected, Switch Smoothly

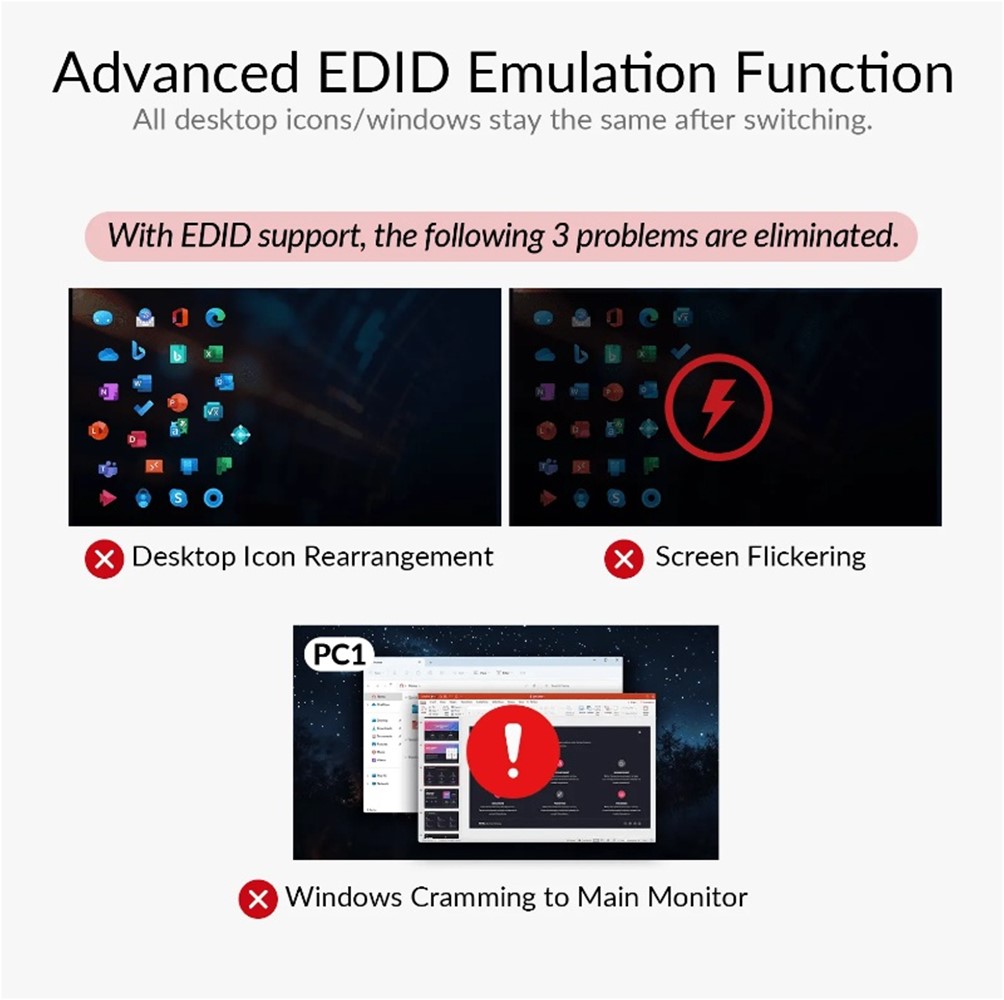

With EDID emulation, your monitors stay consistently connected when switching between laptop and PC.
No icon mess, just a smoother transition that keeps your desktop layout intact.

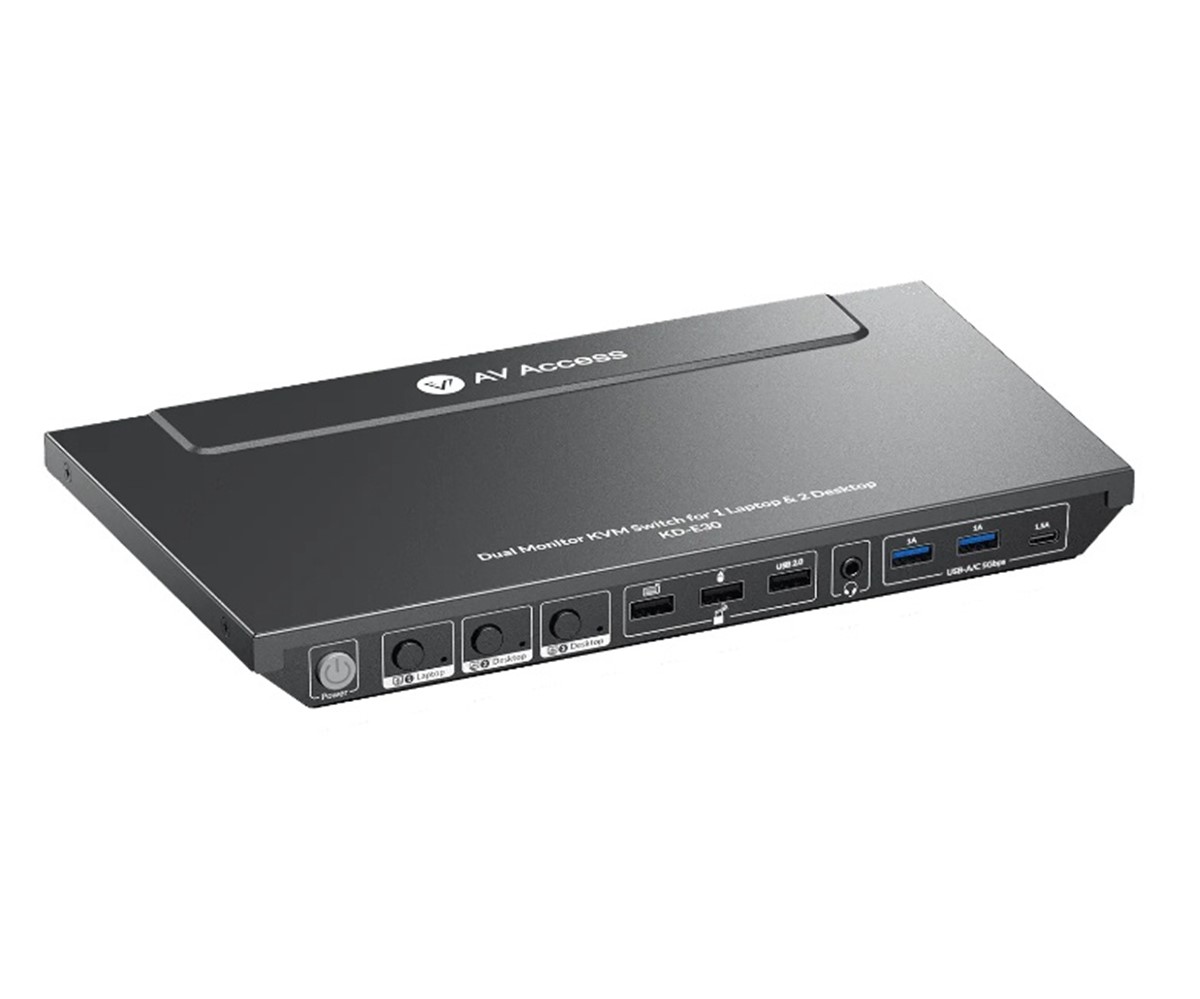

1 x KD-E30 KVM Switcher
1 x Power Adapter (DC 12V/3A)
2 x USB 3.0 Type-A to Type-B Cable
1 x USB 3.2 Type-C to Type-C Cable
1 x User Manual
Technical

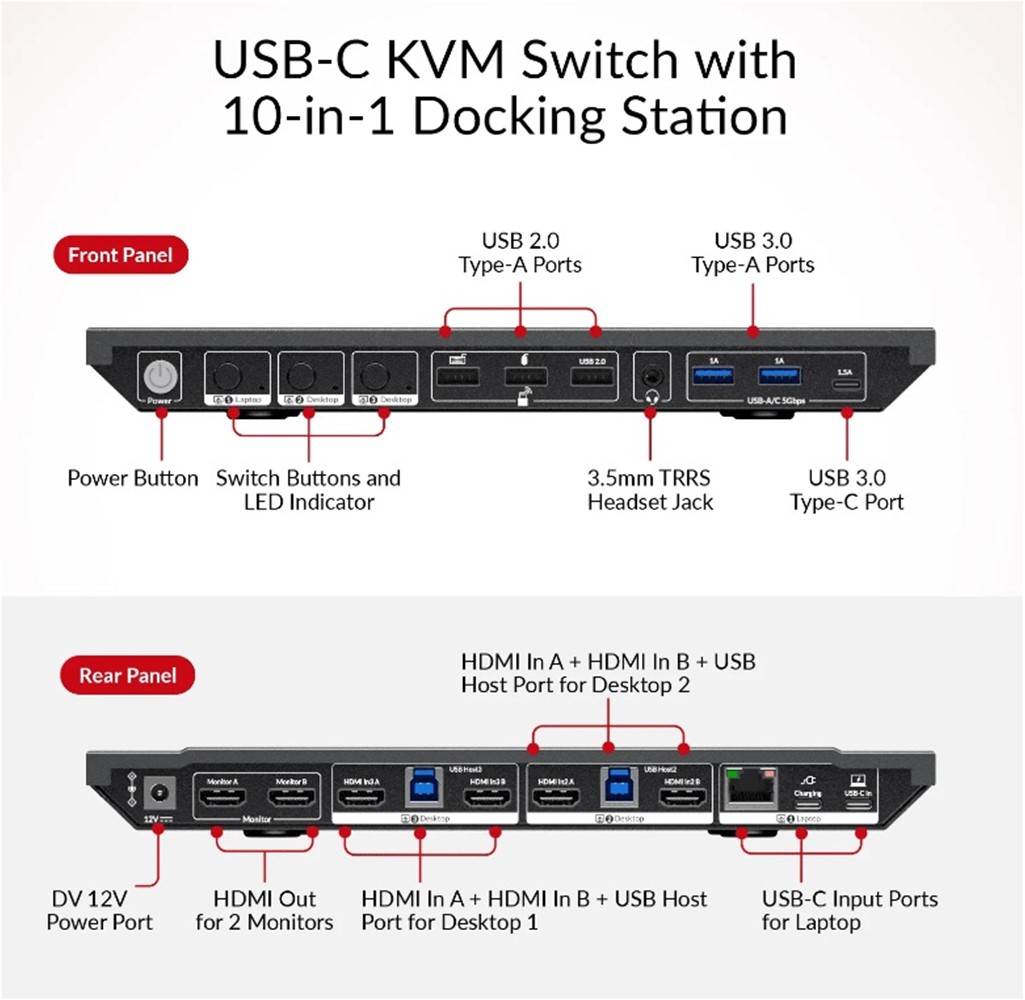

Input & Output Ports 1 x USB C In (USB 3.2 Gen 1); 1 x Charging (USB Type-C, for Laptop only); 4 x HDMI In; 2 x USB Host (USB 3.0 Type-B Host Ports); 2 x HDMI Out; 1 x LAN; 3 x USB 3.0 Device (2 x USB 3.0 Type-A Port + 1 x USB 3.0 Type-C Port); 3 x USB 2.0 Device (USB 2.0 Type-A Ports); 1 x Headset; 1 x DC 12V/3A

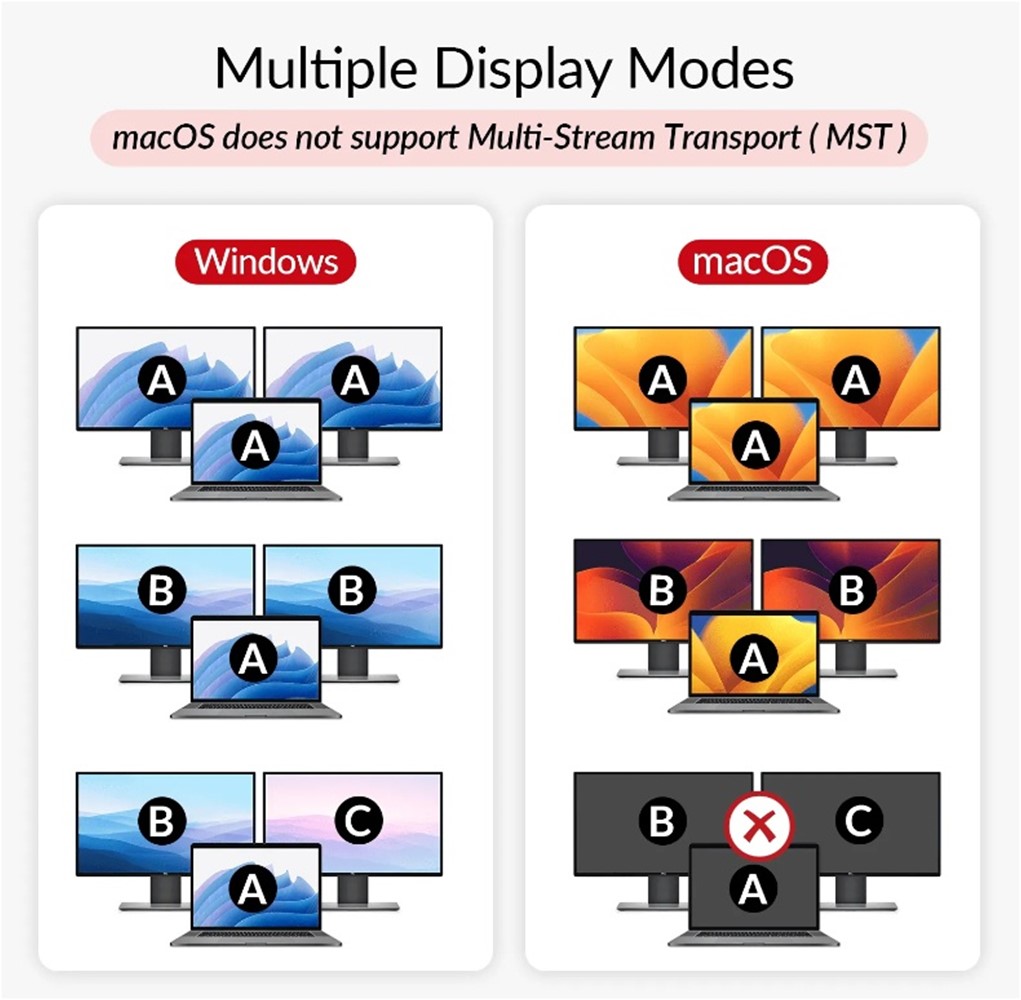

Input/Output Signals USB C Input: USB 3.2, supports DP MST mode, can output two videos (resolutions up to 4K@60Hz 4:4:4 8bit) at the same time
HDMI Input/Output: HDMI 2.0 with resolutions up to 4K@60Hz 4:4:4 8bit / 4K@60 4:2:0 12bit with HDCP 2.2 compatibility
Input/Output Resolution Supported SMPTE:
1280x720P1,2,3,4,5,6,7,8, 1920x1080I6,8, 1920x1080P1,2,3,4,5,6,7,8,9,10,11,12, 2560×10809, 3840×10809,
3840×21602,3,5,6,8, 4096×21602,3,5,6,8,
VESA:
800×6008, 1024×7688, 1280×7688, 1280×8008, 1280×9608, 1280×10248, 1360×7688,
1366×7688, 1400×10508, 1440×9008, 1600×9008, 1600×12008, 1680×10508, 1920×12008,
2560×14401,2,3,4,5,6,7,8,9,10,
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7= at 59.94 Hz, 8 = at 60 Hz, 9 = 120Hz, 10 = 144Hz, 11 = 165Hz, 12 = 240Hz
HDR Format Supported All HDR formats, including HDR 10, HLG, HDR 10+ and Dolby Vision
USB Device 3 x USB 2.0 type-A ports (front panel): each supports a maximum data transfer rate of 480 Mbps, and all three ports share 5V/1.8A;
1 x USB 3.0 type-C port (front panel): supports a maximum data transfer rate and 5V/1.5A power output;
2 x USB 3.0 type-A ports (front panel): each supports a maximum data transfer rate of 5Gbps, and the two ports share 5 V/2A
Audio Format Supported HDMI: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X
Headset: Stereo
Max Data Rate HDMI: Up to 18Gbps
USB C In: 10Gbps/lane
Control Method Front panel buttons
General
Operating Temperature 0°C to + 45°C (32 to + 113 °F)
Storage Temperature -20 to +70°C (-4 to + 158 °F)
Humidity 20% to 90%, non-condensing
Power Consumption 6.5W (No USB load)
34W (Full USB load)
Device Dimensions
(W x H x D)
269.6mm x 27.5mm x 142.6mm/ 10.61’’ x 1.08’’ x 5.61’’
Product Weight 0.92kg/2.03lbs
Transmission Distance
Cable Type Range Supported Video
HDMI Input/Output:
7.5m/25ft (passive cable)
15m/50ft (active cable)
1080P@60Hz 24bpp
4K@30Hz 4:4:4 24bpp
Input/Output: 5m/16ft 4K@60Hz 4:4:4 24bpp
USB C Input: 1m/3.3ft (USB 3.2 Gen 1 or above) 4K@60Hz 4:4:4 24bpp
