I-USB3-3022-AU

Icron

The USB 3.0 Spectra™ 3022 is a two port USB 3.0 SuperSpeed extension solution, enabling USB 3.0 connections at up to 5Gbps over 100m/330ft of multimode fiber optic cable. The Spectra 3022 features two locking USB 3.0 ports delivering 900mA power to each port perfectly suited for USB3 Vision camera applications, and comes with a two year warranty. Note, backward compatibility to USB 2.0/1.1 is not supported.


USB 3.0’s distance is specified at 3 meters. When greater distances are required, consider the USB 3.0 Spectra 3022 which supports USB 3.0 5Gbps throughputs up to 100 meters over OM3 multimode fiber optic cabling. A true plug-and-play solution, the Spectra 3022 is compatible with all leading operating systems and features two locking USB ports and a locking power connector.

The Spectra 3022 is warranted for 2 years from the date of purchase and is USB3 Vision compliant. Backward compatibility to USB 2.0/1.1 is not supported by this particular extender.

Features

USB3 Vision compliant
Extend USB 3.0 up to 100m
Supports USB 3.0 throughputs up to 5Gbps
Integrated 2 port hub
Rugged locking USB and power connectors
Delivers speed, isolation and security over multimode fibre
2 year warranty
Rack mountable option

ExtremeUSB suite of features:

Simplicity: True plug and play (no software drivers)
Reliability: Patented USB extension
Durability: Commercial grade, robust connections
Compatibility: Works with all devices and operating systems


The USB 3.0 Spectra 3022 extender system includes:

Local Extender (LEX)
Remote Extender (REX)
3.0 USB cable
Quick Start Guide
International power adapter with country specific cord (North America, EU, UK, or Australia)
Two year warranty

Applications

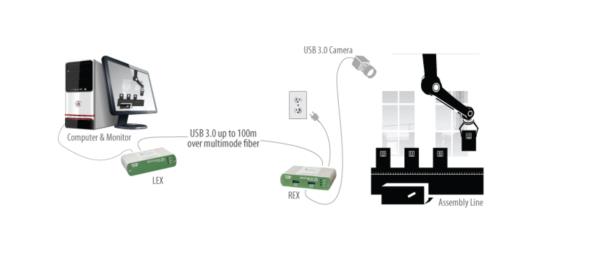

Machine Vision (USB3 Vision specification)
Security
Storage
Large file transfers



Note, backward compatibility to USB 2.0/1.1 is not supported.


RANGE    Direct Connect: Up to 100m (330 ft) over multimode OM3 fiber
SPEEDS    USB 3.0: Up to 5Gbps

LEX (Local Extender)
USB Connector: 1 x USB 3.0 Type B Locking Receptacle
Link Connectors: 2 x LC Connectors
Dimensions: 100mm x 76mm x 26mm (3.94? x 2.99? x 1.02?)
Enclosure Material: Anodized Aluminum

REX (Remote Extender)
USB Connectors: 2 x USB 3.0 Type A Locking Receptacles
Link Connectors: 2 x LC Connectors
Dimensions: 100mm x 76mm x 26mm (3.94? x 2.99? x 1.02?)
Enclosure Material: Anodized Aluminum
Available Current: 900mA for each USB Port
Power Supply: 100-240V AC Input, 5V DC Output, Locking

ENVIRONMENTAL
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 70°C (-4°F to 170°F)
Operating Humidity: 20% to 80% relative humidity, non-condensing
Storage Humidity: 10% to 90% relative humidity, non-condensing

COMPLIANCE
Emissions: FCC (Class B), CE (Class B)
Environmental: RoHS2 (CE)
Machine Vision: AIA USB3 Vision

SUPPORT
Warranty: 2 years
