I-USB321-3124-AU
Icron

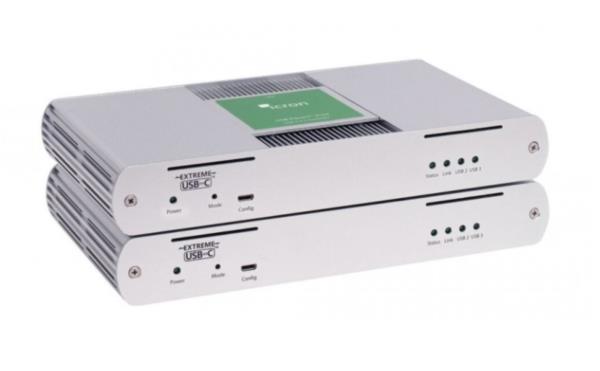

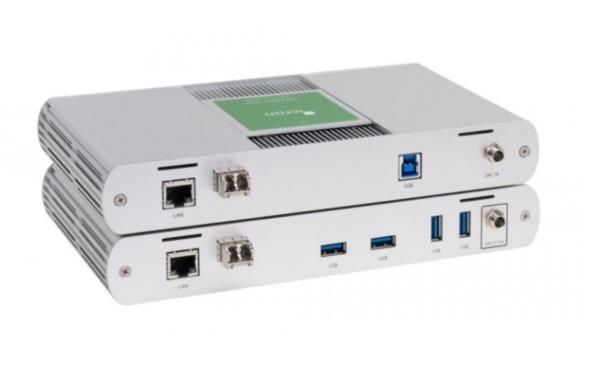

ICRON Raven 3124, is a point-to-point solution that is up to 200m over Multi-Mode fibre optic cabling. This is a 4-port USB extender that is compatible with USB 3.1, 2.0 and 1.1 at up to 5Gbps throughput speeds for simultaneous use. With an additional Ethernet pass-through, this allows the Raven to connect network enabled devices, or to use existing infrastructure without losing LAN connectivity.
Icron’s latest USB 3.1 extender, the Raven 3124, is a point-to-point solution that is up to 200m over Multi-Mode fibre optic cabling. This is a 4-port USB extender that is compatible with USB 3.1, 2.0 and 1.1 at up to 5Gbps throughput speeds for simultaneous use. With an additional Ethernet pass-through, this allows the Raven to connect network enabled devices, or to use existing infrastructure without losing LAN connectivity.
Suitable for video matrix systems, conferencing cameras and security applications, this is a rugged and reliable solution that will revolutionise USB extension.
Featuring the ExtremeUSB-C technology, this fibre optic USB extender provides you with transparent USB extensions, true plug-and-play connectivity and works with all major operating systems (Windows, MacOS, Linux).
Product features
| USB |
USB 3.0, 2.0, 1.1 |
| Max. Distance |
200m |
| Transmission Media |
Multimode Fiber |
| Power Adapter Location |
Power required at both REX & LEX |
| USB Port(s) |
4 |
| USB Throughput |
5 Gbps |
No videos available For this product
Your Price $2,930.00 (inc GST)
Availability : email sales@kvm.com.au for latest availability
Login for Reseller Pricing
Christopher Beattie
gave it
5
stars on
30/09/2020
“I don't usually write reviews but, it seems warranted. My objective was to move my computer into the garage (~ 30metres away from where i intended to use it in the house) so that i could get rid of the noise. Que electrician running conduit in the roof etc.etc. + combined with some "BLackBox DisplayPort 1.4 Active Optical Cables" for the video (sourced elsewhere) it's been a great success!Some cons/things to know:1) i've a little 'audioEngine D1' DAC for my headphones that for some reason doesn't detect correctly (i know it works perfectly when directly connected).. solution: attach a regular USB hub and it works perfectly again.2) the device is ALMOST completely silent. Almost... there's a (honestly barely perceptible) coil whine in the background, which i've confirmed is definitely the unit. Unfortunate, but once you're listening to any sound, headphones or otherwise, it might as well not be there.3) Not even really an issue, but during setup, it was necessary for the electrician to "reverse the polarity" on the Fiber Optic cables (i used OM4 cables, which are backwards compatible with OM3 - perhaps that is the reason? I know little of fiber optic cables to be honest, perhaps that is standard practise... due to that being done so quickly i suspect it was just them changing the order/position of the fiber optic cables? Either way, not really a problem but something to be aware of.Pros:-Basically silent!-barely generates any heat whatsoever, is cooled completely passively (could probably be put in a soundproof box to fix the coil whine issue.-has worked flawlessly since i started using them ~ 1 week ago (working every day from home).-Can wake my computer from sleep/hibernate by clicking the mouse.-absolutely indistinguishable from having usb devices directly connected to my computer, ZERO latency (that i can perceive - am a gamer if that helps)-no difference in USB bandwidth either that i can tell.-easy a pie to setup, didn't even need the quick setup guide (which is pretty much the only thing in the box when delivered) as it's obvious which device belongs at which end.-no device drivers to install, literally just connect the usb and fiber cables on each end, power up the devices, check the link light and you're DONE (they power up and link very quickly also - in the order of a few seconds)-operates perfectly through BIOS/UEFI menus, so presumably (although i've not tested) may be able to boot computer from USB.-Delivered ridiculously quickly - i think i received it day after i ordered or something!??-KVM staff were very swift with replies and were helpful with my questions.Hope that helps!Chris.”
Write a Review
Please ensure you are logged in to write a review.
Icron USB 3-2-1 Raven 00-00440 Model 3124 4 Port 200mt, Multimode Fiber Extender System
$2,930.00
In stock
