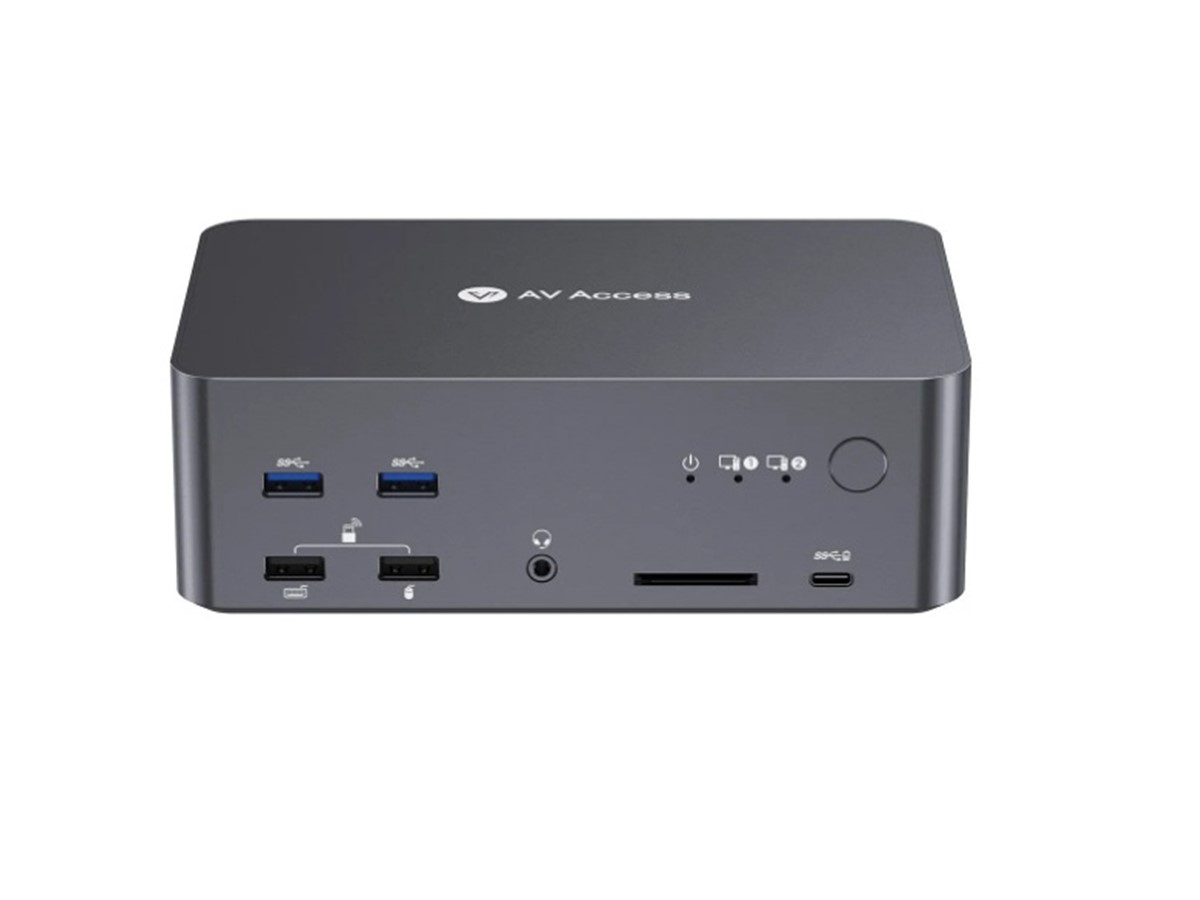

iDock D23i 8K DisplayPort/HDMI KVM Switch Docking Station for 2 Desktop PCs, Triple Monitor Design, 1G Ethernet, USB 3.0, 240/165/120Hz for Gaming.

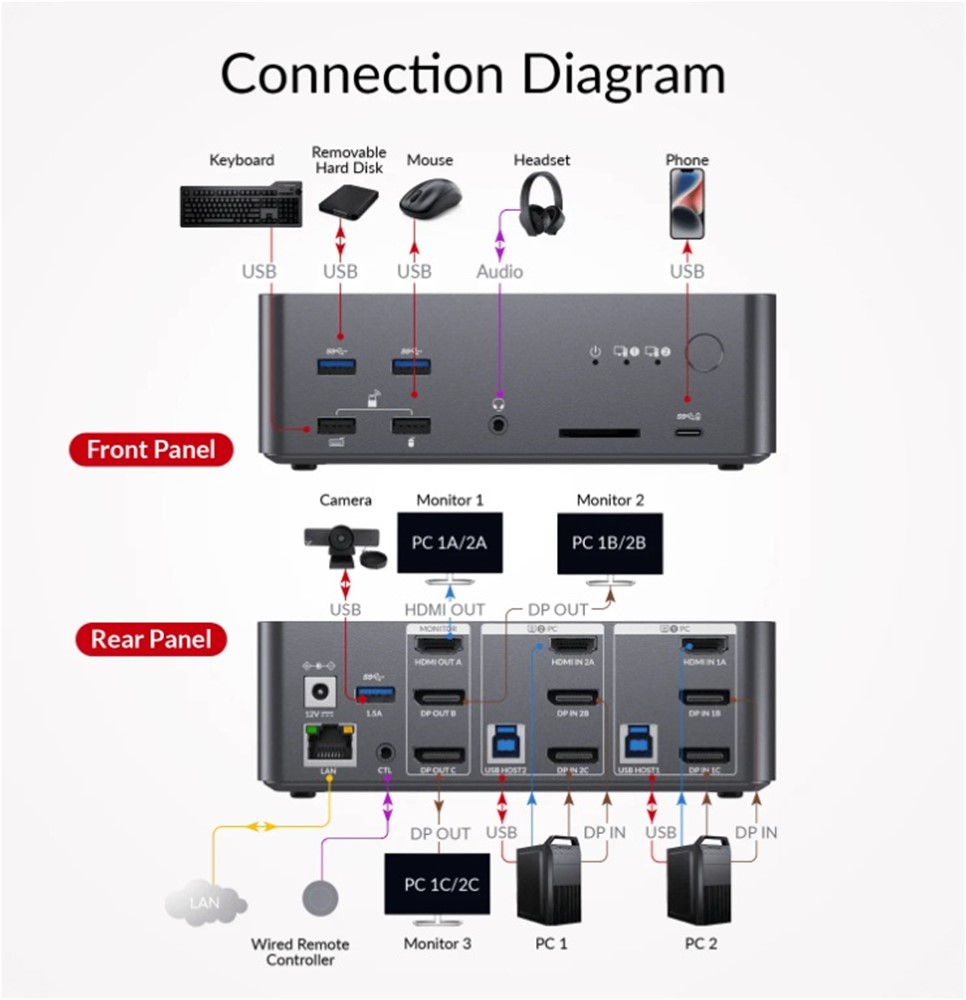

Share 3 Monitors Between 2 PCs Effortlessly
- Two Desktops & Triple Monitors: Switch seamlessly between work and gaming with 4 DP + 2 HDMI inputs and 2 DP + 1 HDMI outputs for a true triple-monitor setup.(For desktops with 3 DP outputs, please check iDock D23.)
- Immersive 8K Ultra HD: DP 2.0 & HDCP 2.3 compliant, supporting 8K@60Hz and HDR formats (HDR10, HLG, HDR10+, Dolby Vision) for exceptional clarity.
- Ultra-High Refresh Rate: Supports up to 4K@165Hz and 1080P@240Hz, ensuring ultra-smooth visuals for fast action and gaming.

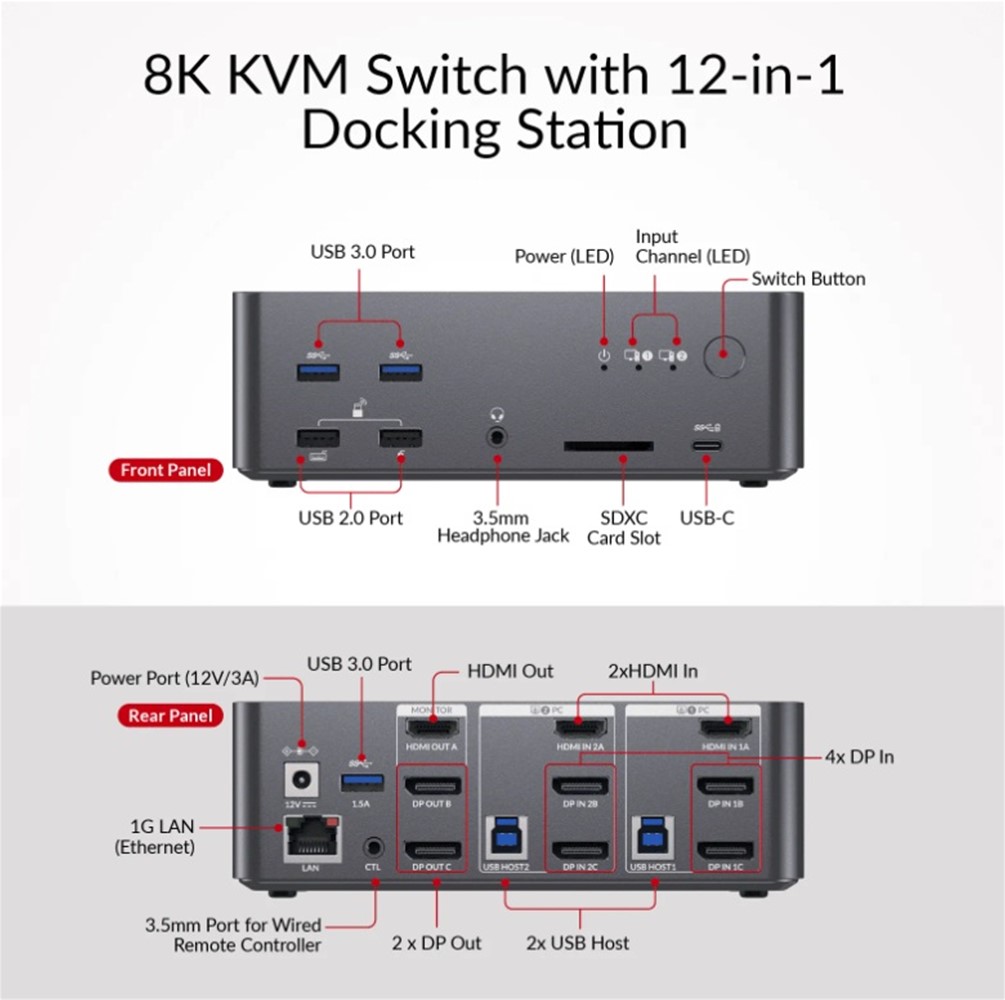

- 12-in-1 Docking Station: Share peripherals between two PCs via USB-C, USB 3.0, Ethernet, audio, and SD card slot.
- 2 PCs & 1 Ethernet Port: Share a stable 1G Ethernet connection between two PCs for seamless, uninterrupted internet access while switching.
- Easy to Switch: Switch seamlessly in 2-3 seconds via panel button or included wired remote controller.
240HZ REFRESH RATE
Unlock Your Gaming Setup’s Full Potential
Game like a pro with 4K@165Hz or 1080p@240Hz performance. Enjoy ultra-smooth gameplay with G-Sync, FreeSync, and VRR support.
1G LAN
2 Computers Share 1 Ethernet Port
Stay connected with a stable 1G Ethernet port that both PCs can share simultaneously.
Enjoy uninterrupted, stable internet access—even while switching between computers—for a smooth and efficient workflow.
Switch Everything with a Single Press
Easily switch via the top-panel button or a wired remote (included). Even if your device is tucked under a desk or hard to reach, seamless switching is just one click away.
Technical
Video Signal · HDMI IN/OUT: HDMI 2.1
· DP IN/OUT: DP 1.4a & 2.0
Peripheral and Expansion Ports · USB-C x 1: USB 3.0 (5 Gbps), supports up to 1.5A output
· USB-A x 5:
USB specification x 2: USB 3.0 (5Gbps), shared 2A total output
USB charging x 1: USB 3.0 (5Gbps), supports up to 1.5A output
Mouse x 1 Keyboard x 1: USB 2.0 (480Mbps), shared 1.5A output
· USB-B x 2: USB 3.0 (5Gbps)
· SDXC slot: Data rate up to 832Mbps; supports capacity up to 2TB
· LAN: RJ-45, supports 1Gbps Ethernet pass-through
Input/Output Resolutions VESA:
800×6008, 1024×7688, 1280×7688, 1280×8008, 1280×9608, 1280×10248, 1360×7688, 1366×7688, 1400×10508, 1440×9008, 1600×9008, 1600×12008, 1680×10508, 1920×12008, 2048×15365,6,8,9,10,11,12, 2560×14405,6,8,9,10,11,12, 2560×16005,6,8,9,10,11,12, 3440×14405,6,8,9,10,11,12, 3840×10805,6,8,9,10,11,12, 3840×14405,6,8,9,10,11,12, 5120×28805,6,8,9,
SMPTE:
1280x720P1,2,3,4,5,6,7,8, 1920x1080I6,8, 1920x1080P1,2,3,4,5,6,7,8,9,10,11,12, 3840×21602,3,5,6,8,9,10,11, 4096×21602,3,5,6,8,9,10,11, 5120×21605,6,8,9, 8K5,6,8
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz, 9 = 120Hz, 10 = 144Hz, 11 = 165Hz, 12 = 240Hz
HDR Format Supported Supports all mainstream HDR formats including HDR10, HLG, HDR10+, and Dolby Vision
Audio Format Supported · HDMI/DP: Supports all HDMI 2.1 and DP 2.0 standard audio formats, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X
· 3.5mm Audio Jack: Stereo
Max Video Data Rate HDMI: 48Gpbs | DP: 54Gbps (13.5Gbps per channel)
General
Operating Temperature 0°C to 45°C (32 to 113°F)
Storage Temperature -20 to 70°C (-4 to 158°F)
Humidity 20% to 90%, non-condensing
Power Consumption 17W (Max, without USB load)
Device Dimensions
(W x H x D)
168mm x 55mm x 110mm/ 6.61’’ x 2.17’’ x 4.33’’
Product Weight 0.73kg/1.61lbs
