KDR-DF117-UIP802e

Austin Hughes

Dual Slide Rackmount 1U LCD Monitor with 17" LCD with integrated 2-console (1 x local; 1 x IP), 8 port Combo Cat6 IP KVM Switch.



Cyberview  DF117-UIP802e is a 1U Dual Slide Rackmount LCD Monitor with 17" LCD with integrated 2-console (1 x local; 1 x IP), 8 port Combo Cat6 IP KVM Switch.

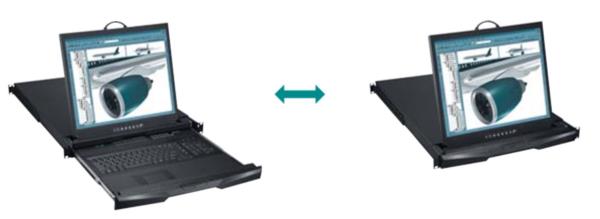

The keyboard is a 104 key notepad keyboard with touchpad mouse.  The Dual Slide technology allows the LCD to be left up/open when the rack door is closed.

DF117-UIP802e Features & Benefits:

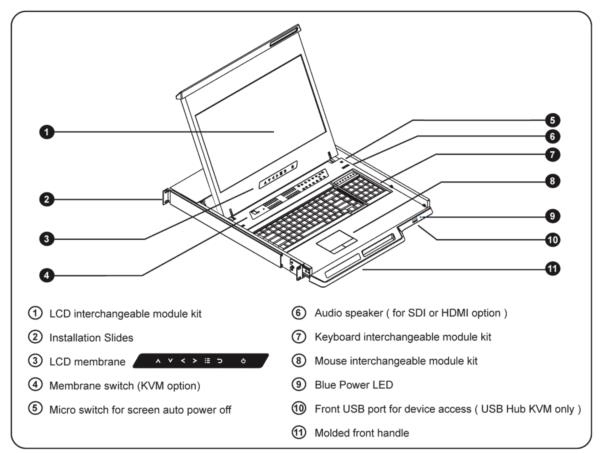

  • 1U dual slide 17" LCD console drawer
  • 104-key keyboard with touchpad
  • Enhanced aesthetics with newmolded front panel and two point lock
  • Combo interface either PS/2 or USB for single console drawer

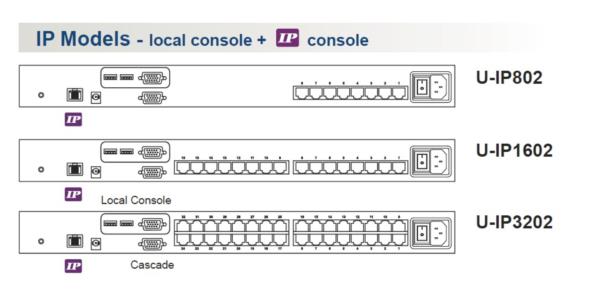

Combo Cat6 IP KVM Switch Features & Benefits:

  • Combo Cat6 KVM with 8 ports in 1U
  • Up to 40 meters between your servers & KVM ports
  • Cascade switches up to 8 levels & Mix switches between Cat6 & Combo DB-15 KVM
  • Support DVI-USB, VGA-USB & VGA-PS/2 server interface
  • Mix PS/2, USB & SUN with Multi-Platform switch capability
  • Multi lingual on screen display menu

DF117 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console 1.73 x 17.4 x 25.6 in.
(44 x 442 x 650 mm.)
Console w/ KVM 1.73 x 17.4 x 25.6 in.
(44 x 442 x 650 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM		 5.5 x 23.4 x 33.9 in.
(140 x 595 x 860 mm.)
Net Weight
Single Console 26.2 lbs. (11.9 kg)
Console w/ KVM 28.4 lbs. (12.9 kg)
Gross Weight
Single Console 39.4 lbs. (17.9 kg)
Console w/ KVM 41.6 lbs. (18.9 kg)
Mounting Distance
Single Console / Console with KVM 26 ~ 34.3 in
(660 ~ 870 mm)
Console Ports
Video Input VGA + DVI-D single link
Video Option HDMI 1.3 / HDCP 1.1
KB / MS Combo ( USB or PS2 )
VGA console 6ft cable (CB-6)
--OR--
DVI-D console 6ft cable (CX-6)
Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A
Drawer end : DVI-D + DB-15 ( USB KB / MS )
Server end : DVI-D + USB type A
LCD Screen
LCD panel size ( diagonal ) 17.3"
Backlight type LED
Native resolution 1920 x 1080
Brightness (cd/m2) 400
Colors 16.7 M, 8-bit
Contrast Ratio (typ) 600 : 1
Viewing angle ( L/R/U/D ) 80/80/60/80
Viewing angle (H x V) 160° x 140°
Response time ( ms ) 40
Dot pitch ( mm ) 0.1989
Display area ( mm ) 381.888H x 214.812V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
MTBF (hrs) 50,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Input Impedance / Power level 30? / 750mV
Output Connector 3.5mm stereo jack
Output Impedance / Power level 30? / 2.8V
Power
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen on Max. 25W / Max. 55W
Power saving mode Max. 4W / Max. 34W
Power button on Max. 1W / Nil
Environmental
Operating Temperature 0 to 55°C Degree
Storage Temperature -20 to 60°C Degree
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant



KVM Switch
KVM Port 8 x RJ-45 connector
KVM Connectivity DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable
 Local Console Nil for LCD console drawer version
Expansion Up to 256 servers by 8-level cascade
Compatibility Mix PCs, SUN and Mac G3 / G4 Mac / iMac
Windows 7 / Vista / 2003 / XP, Linux, Unix
Power Auto sensing 100 to 240VAC, 50 / 60 Hz OR AC / DC power adapter 12V@3.3A (optional)
Environmental Operating / Storage : 0 to 50°C / -5 to 60°C
Relative humidity : 90%, non-condensing
Shock : 50G peak acceleration ( 11 ms, half-sine wave )
Vibration : 58~100Hz / 0.98G ( 11 ms/ cycle)
Regulatory Approval FCC, CE
