KVM-CV-S1601

Austin Hughes

Cyberview CV-S1601 USB KVM Switch has a slim 1U form factor to provide effective assistance for administrators to control up to 16 PCs from a single Keyborad, Video and Mouse (KVM) console.


Cyberview CV-S1601 USB KVM Switch has a slim 1U form factor to provide effective assistance for administrators to control up to 16 PCs from a single Keyborad, Video and Mouse (KVM) console.

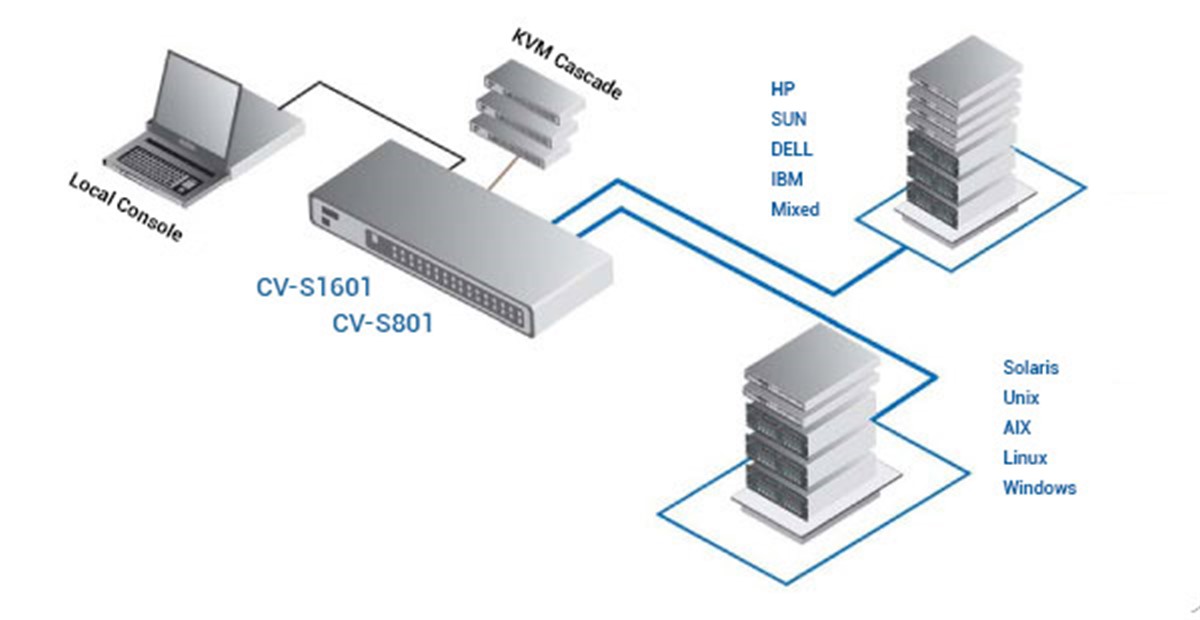

To simplify switching and control, the CV-S1601 is equipped with an OSD (On-Screen-Display) menu and ability to switch targets via Hot Key sequences. Up to eight CV-S801s can be cascaded together expanding the systme capacity up to 128 computers providing the maximum flexibility for your application.



CV-S1601 Features

  • Multi-platform - Mix PCs, SUN Microsystems, IBM compatibles, HP, Compaq and Dell.
  • Hot Pluggable - Add PCs or remove connected PCs for maintenance without powering down the USB KVM switch or PCs.
  • No Software is required - Easy PC selection via on screen display manual, push buttons and hot-key.
  • Local console & KVM ports support resolutions up to 1920 x 1200
  • Auto-Scan mode to monitor servers at intervals between 5 to 99 seconds.
  • Password enable & disable, with up to 8 users profiles to control access
  • VGA and USB two-in-one by 15pin HDDB connector at KVM side.
  • Cascade for use up to 128 servers.



Package contents

  • CV-S1601 KVM Unit  x 1
  • Mounting set w/ bracket & screws  x 1
  • Power cord ( for KVM )  x 1





CV-S1601 Specifications

PC port 8/16
Console Port -
PC Selection OSD menu, hot key, push button

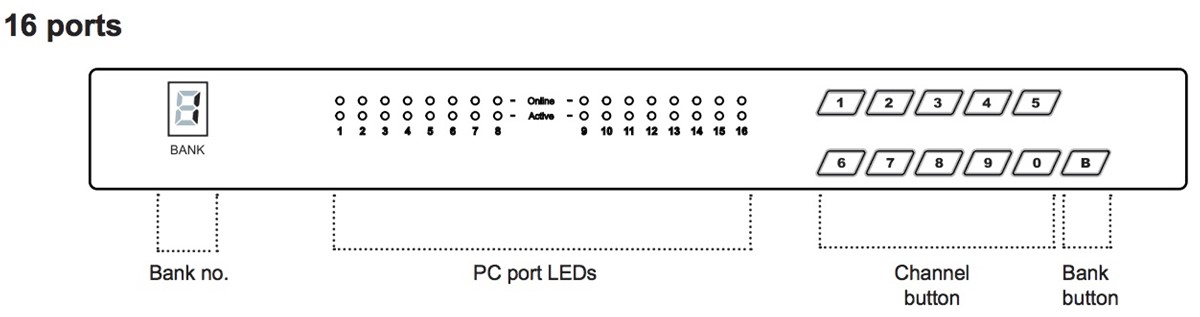

LED 1 Bank LED, 8/16 Online LED (Green), 8/16 Selected LED (Red)
On screen display control Yes
Scan Intervals 5~99sec
Keyboard and mouse emulation USB
VGA Resolution (Max.) 1920x1440
Cat5 Length N/A
Bandwidth 200Mhz
Cascade Level 8 levels
PC Connection 120/128
Housing Metal
KVM Switch Power Adapter DC 12V

CV-S1601 KVM Hot Key Sequences:

Function Hot Key Sequence
Calling OSD Menu [Scr Lock] [Scr Lock] [Space Bar]
Right Mouse + [Esc]
Previous Port [Scr Lock] [Scr Lock] [Up]
Next Port [Scr Lock] [Scr Lock] [Down]
Previous/Next Bank [Scr Lock] [Scr Lock] + [PgUp/PgDn]
Switch to Specific Port [Scr Lock] [Scr Lock] + Bank # + Port #
Buzzer On/Off [Scr Lock] [Scr Lock] [B]
Logout (Password Security Must Be On) [Scr Lock] [Scr Lock] [P]
Advanced HotKeys (For Supervisor Login Only)
AutoScan Mode [Scr Lock] [Scr Lock] [S]
Reset Factory Defualts [Scr Lock] [Scr Lock] [R]
Disable/Enable Password Security [Scr Lock] [Scr Lock] [U]
Enable/Disable Screen Saving [Scr Lock] [Scr Lock] [L]
Remote Console HotKeys
Toggle Remote/Local Port [Scr Lock] [Scr Lock] [C]
Buzzer On/Off [Scr Lock] [Scr Lock] [Q]
AutoScan Mode [Scr Lock] [Scr Lock] [S]
Auto Adjust Video Signal [Scr Lock] [Scr Lock] [A]

CV-S1601 is also known as:

  • S1601
