KVM-MU-1602

Austin Hughes

CyberView Cat6 KVM Switches allow you to mix and match a variety of sources, and control of them from one keyboard, mouse and keyboard (BIOS-level). CyberView Cat6 KVMs support a variety of video inputs from DisplayPort, HDMI, DVI, & VGA, with resolutions up to 1080p


CyberView Cat6 KVM Switches allow you to mix and match a variety of sources, and control of them from one keyboard, mouse and keyboard (BIOS-level). CyberView Cat6 KVMs support a variety of video inputs from DisplayPort, HDMI, DVI, & VGA, with resolutions up to 1080p.

  • Multi-user KVM with up to 2 simultaneous Users
  • DP, HDMI, DVI-D or VGA video input
  • Resolution up to 1920 x 1080



MU-1602 Features & Benefits

  • Efficient system management with simultaneous multi-user access
  • Capable of connecting 16 servers per device in 1U
  • Support HDMI, DisplayPort, DVI, VGA-USB and VGA-PS/2 server interface
  • Increased distance of 132ft (40m) between your server and KVM switch
  • Enhanced Cat6 cable management with remote access over 1000ft (300m).
  • Provides a diversity of consoles to access servers independently and simultaneously
  • Use of the RJ45 Cat6 interface allows for a higher number of ports in smaller density
  • Greater distances between your switch and servers allow enhanced data center rack layouts
  • Multi-lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations

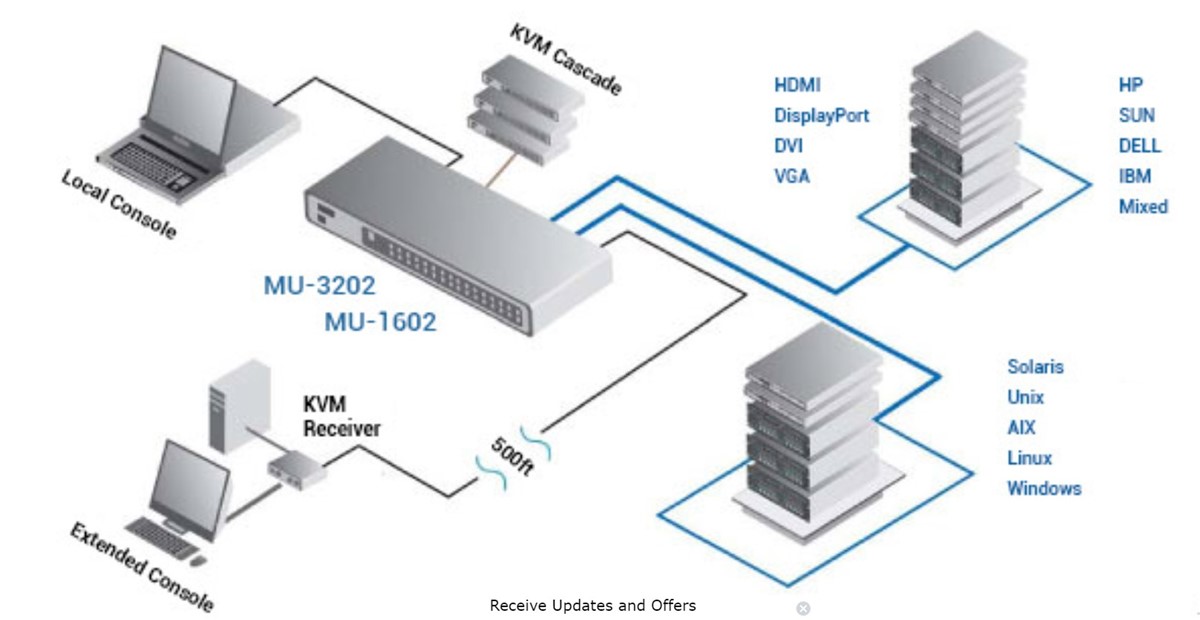

MU-1602 supports any combination of VGA, DVI, HDMI, DisplayPort, USB, and PS/2 sources through low-cost KVM dongles. Source computers can be located up to 130 feet (40 m) away via Cat5/6 cable.



Integrated CATx extender  (1 Remote Users)
The MU-1602 Cat6 Matrix KVM can be controlled by one user from up to 500ft (150m) away over CATx cable using the integrated CATx extender with the included KVM receiver.

  • 1920 x 1200@60Hz (100ft)
  • 1920 x 1080@60Hz (150ft)
  • 1600 x 1200@60Hz (300ft)
  • 1280 x 1024@60Hz (500ft)



CyberView MU-1602 Package Contents

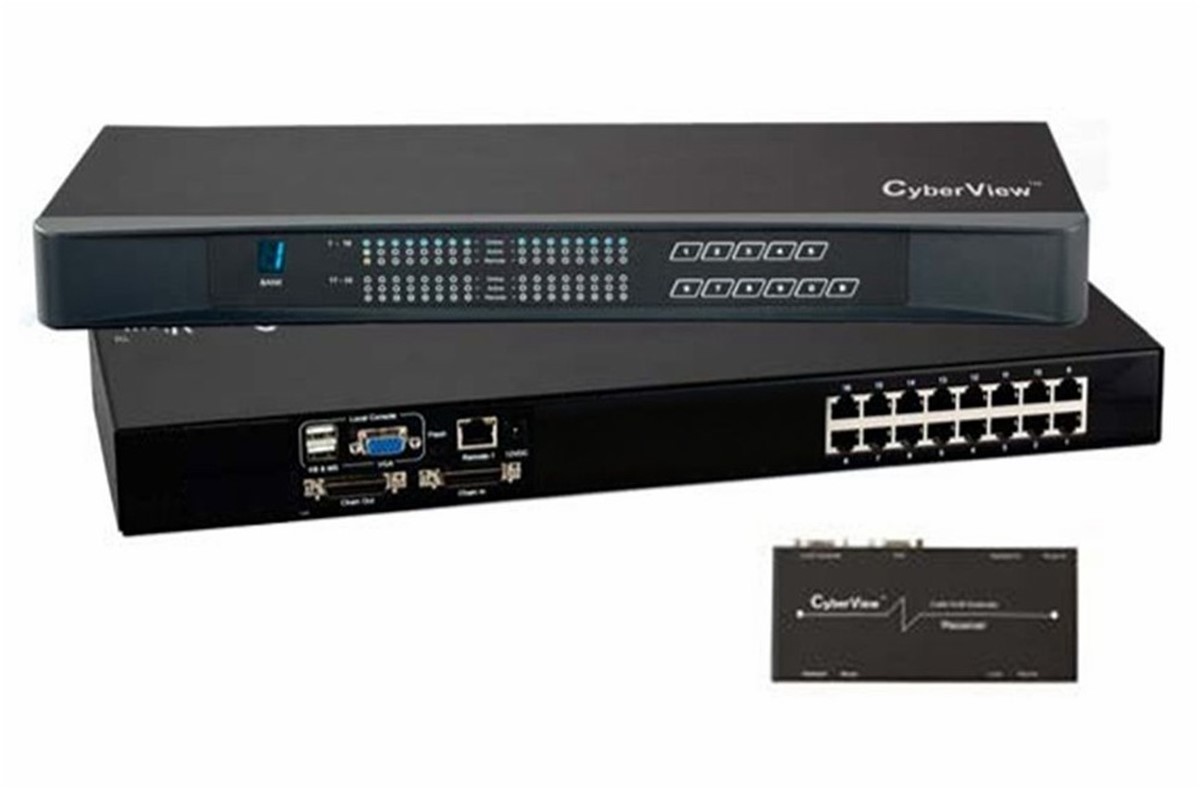

  • (1) MU-1602 KVM Switch
  • (1) 1U, 19" Rack mount kit w/ brackets & screws
  • (1) Power adapter w/ US power cord - for KVM   Note, DC power excludes AC power cord.
  • (1) KVM receiver for extended console
  • (1) Power adapter w/ US power cord - for receiver
  • (1) CB-6 6ft VGA USB KVM cable - for receiver
  • (1) 2-Year manufacturer warranty

MU-1602 Specifications

Mechanical
Height 1.73 in. (44 mm.)
Width 17.4 in. (443 mm.)
Depth 6.7 in. (171 mm.)
Weight 6.5 lbs. (3 kg.)
Environmental
Operating/Storage Temperature 0 to 55°C / -20 to 60°C
Relative Humidity 20-90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz / 1G RMS random vibration
Power 100~240VAC, 50/60Hz 0.5A via AC / DC cord

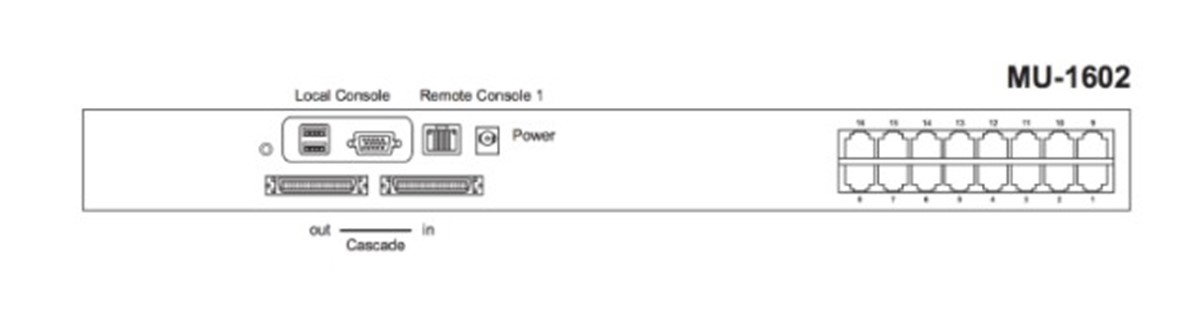

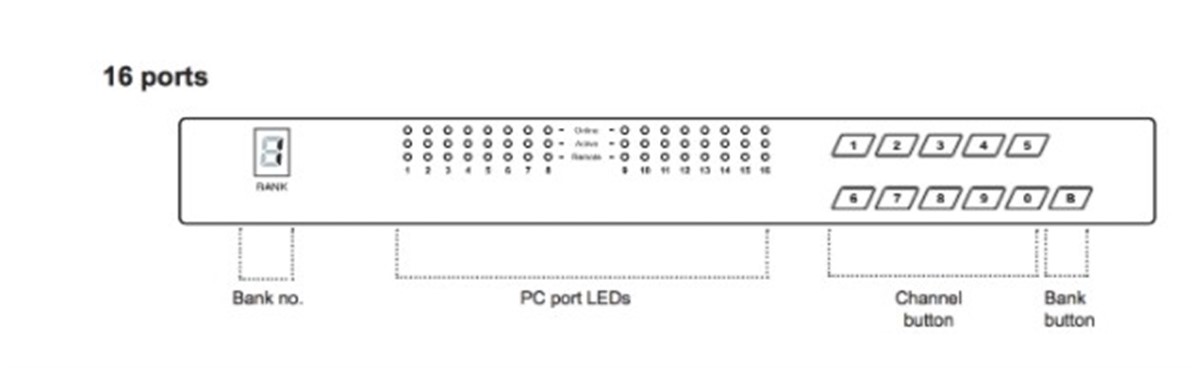

KVM
Ports 16 x RJ45 connector
KVM Dongle DVI-D / VGA connector dongle up to 132 ft. Cat6/Cat5 cable
Simultaneous Console Access
Local 1 x DB-15 VGA (up to 1600 x 1200), 2 x USB to KB & MS
Remote (1) 1 x RJ45, up to 1000 ft. Cat6 cable
Remote Receiver (1) 1 x DB-15 VGA (up to 1600 x 1200), 2 x USB for KB & MS
1 x KVM port for connecting to an extra PC
Expansion Support mixed DB-15 or RJ45 Matrix KVM, up to 256 servers
Compatibility
Hardware Mix PCs, SUNs, MACs, IBMs, HPs, DELLs servers
Operating Systems Windows Vista / 2003 / XP / 2000, Linux, Unix, Mac OS
Regulatory Approval cUL, FCC, CE, RoHS2, REACH
